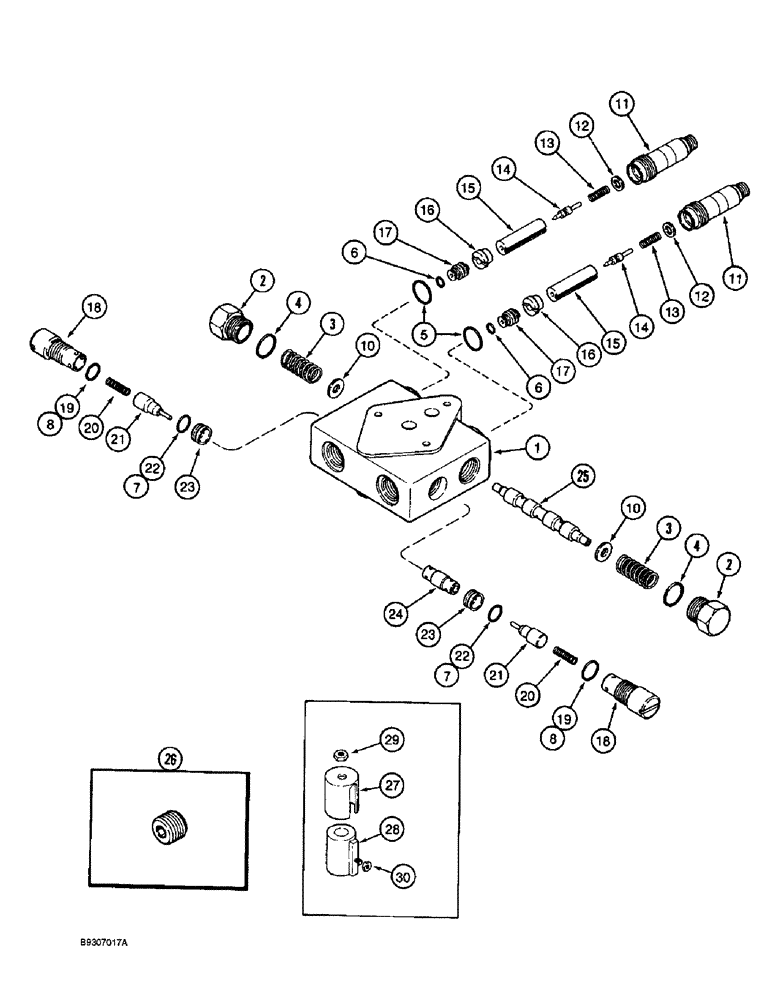

Запчасти Case IH 1688 (8-48) - DOUBLE PILOTED VALVE - 1267035C94, FOR UNLOADER AUGER SWING AND REEL FORE/AFT PRIOR TO PIN JJC119607 (07) - HYDRAULICS

1267035C94

VALVE

ASSEMBLY double piloted, no longer available, order 124857A1, parts list Figure 8-50, Includes: Ref. 1 - 30, Serial Range: -JJC119607

1-2шт.

1

NSS

NOT SOLD SEPARAT

BODY valve

1шт.

2

1301686C1

CAP

PLUG hex, special

2шт.

3

1301689C1

SPRING

spool

2шт.

1282278C2

SEAL KIT

valve seal, Includes: Ref. 4 - 9

1шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

5

238-6019

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

2шт.

6

238-6010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

2шт.

7

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

8

238-6114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

1шт.

10

1301687C1

WASHER

RETAINER spring

2шт.

11

1301627C2

SLEEVE

poppet

2шт.

12

1301642C1

WASHER

spring retaining

2шт.

13

1301640C1

SPRING

poppet

2шт.

14

110550A1

VALVE POPPET

2шт.

15

1301648C1

ARMATURE

valve

2шт.

16

1301624C1

BUSHING

poppet

2шт.

17

1301625C1

ORIFICE

valve

2шт.

1986831C2

PACKAGE

VALVE ASSEMBLY cross check, Includes: Ref. 18 - 23

2шт.

18

NSS

NOT SOLD SEPARAT

BODY check valve

1шт.

19

238-6114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

1шт.

20

NSS

NOT SOLD SEPARAT

SPRING poppet

1шт.

21

1267160C2

VALVE

POPPET

1шт.

22

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

23

NSS

NOT SOLD SEPARAT

SEAT valve

1шт.

24

1267162C1

VALVE

SPOOL shuttle

1шт.

25

NSS

NOT SOLD SEPARAT

SPOOL valve, order 124857A1

1шт.

26

1301637C1

ORIFICE

ORIFICE valve

2шт.

27

1301632C1

CAP

COVER coil

2шт.

28

1301633C1

COIL

valve

2шт.

29

107825

NUT,Stamped, 1/2"-20

hex, 1/2 inch NF

2шт.

30

225-20210

NUT,#10-32, Brass

2шт.

9

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Not used in this application, not shown

1шт.
