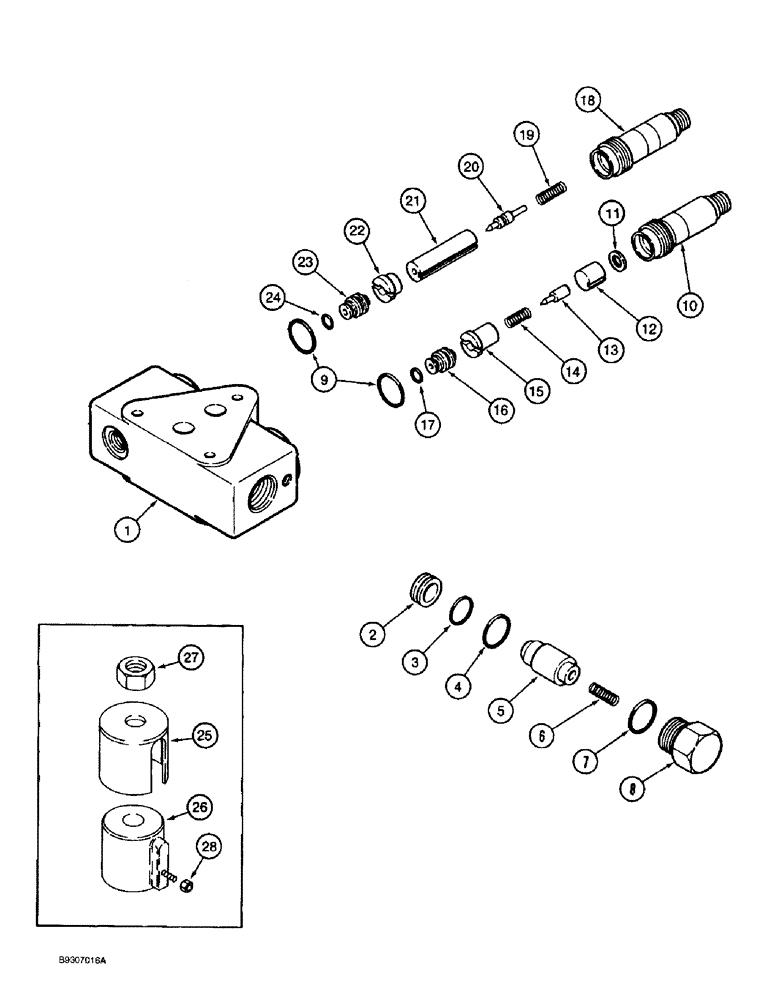

Запчасти Case IH 1688 (8-46) - UNLOAD/SINGLE BI-DIRECTIONAL VALVE ASSEMBLY, FOR REEL LIFT (07) - HYDRAULICS

107981A2

VALVE

ASSEMBLY unload/single bi-directional, reel lift, Includes: Ref. 1 - 28

1шт.

1

NSS

NOT SOLD SEPARAT

BODY valve

1шт.

2

107966A1

SEAT

poppet

1шт.

3

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

1шт.

Part of KIT, part number 1282280C1

1шт.

4

238-5018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 5, 75 Duro

1шт.

Part of KIT, part number 1282280C1

1шт.

5

107970A1

VALVE POPPET

1шт.

6

107967A1

SPRING

poppet

2шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

Part of KIT, part number 1282280C1

1шт.

8

107968A1

PLUG

hex, special

1шт.

9

238-6019

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

2шт.

Part of KIT, part number 1282280C1

1шт.

107972A1

VALVE

SOLENOID ASSEMBLY normally open, Includes: Ref. 10 - 17

1шт.

10

1301641C2

TRANSMISSION SLEEVE

poppet

1шт.

11

1301642C1

WASHER

spring retaining

1шт.

12

1301643C1

VALVE

ARMATURE

1шт.

13

1301644C1

PIN

POPPET valve, Order 1301644C2. Also Order BUSHING 1301646C2 and SLEEVE 1301641C2 for initial replacement

1шт.

14

1301821C1

SPRING

poppet

1шт.

15

1301646C1

BUSHING

poppet

1шт.

16

1301639C1

PISTON

ORIFICE valve, 0.055 inch opening

1шт.

17

238-6010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

1шт.

Part of KIT, part number 1282280C1

1шт.

112988A1

VALVE

SOLENOID ASSEMBLY normally closed, Includes: Ref. 18 - 28

1шт.

18

1301627C1

STUD

SLEEVE poppet

1шт.

19

1301640C1

SPRING

poppet

1шт.

20

110550A1

VALVE POPPET

1шт.

21

1301648C1

ARMATURE

valve

1шт.

22

1301624C1

BUSHING

poppet

1шт.

23

1346430C1

RESTRICTOR

ORIFICE valve, 0.062 inch opening

1шт.

24

238-6010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

1шт.

Part of KIT, part number 1282280C1

1шт.

25

1301632C1

CAP

COVER coil

2шт.

26

1301633C1

COIL

valve

2шт.

27

107825

NUT,Stamped, 1/2"-20

hex, 1/2 inch NF

2шт.

28

225-20210

NUT,#10-32, Brass

2шт.

1282280C1

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

KIT valve seal, also includes one 529909R1 O-ring not used in this application

1шт.
