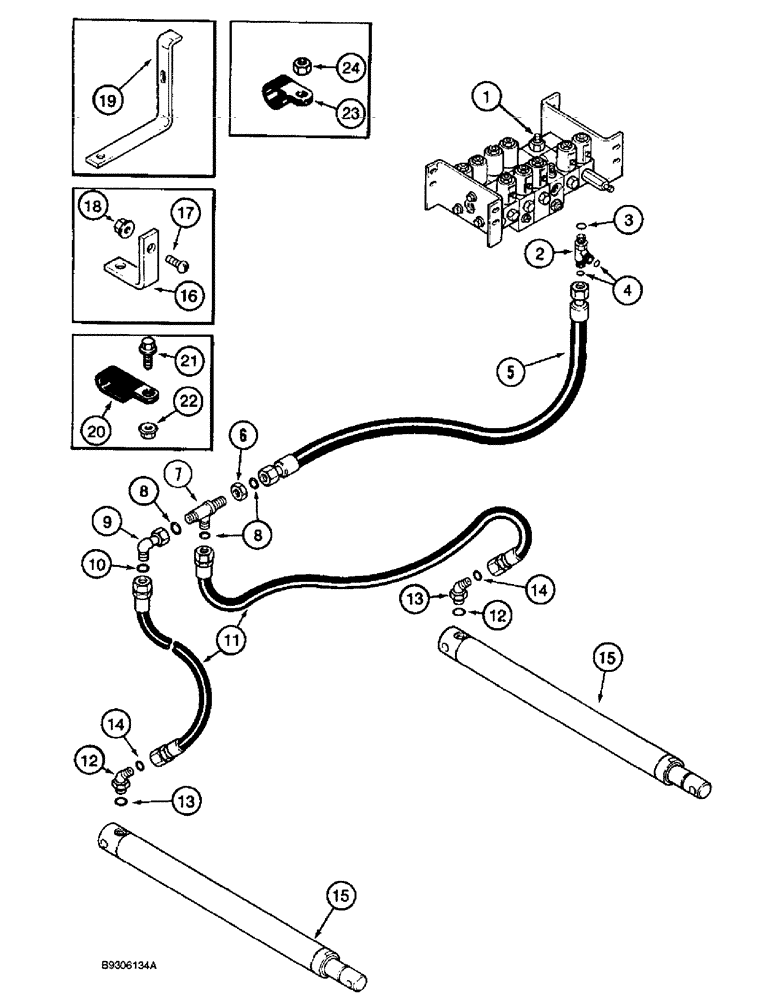

Запчасти Case IH 1688 (8-34) - HEADER LIFT SYSTEM, WITHOUT THIRD LIFT CYLINDER ATTACHMENT (07) - HYDRAULICS

1

1542679C2

VALVE

ASSEMBLY header lift, parts list Figure 8-54

1шт.

2

201-412

TEE,13/16" - 16 ORFS x 13/16" - 16 ORFS x 3/4" - 16 ORB

13/16-16 face branch x face x 3/4-16 inch adj O-ring, Includes: Ref. 3 and 4

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

5

1989666C1

HOSE

96-7/8 inch (2460 mm) long, header cylinder supply

1шт.

6

201-903

TUBE NUT,Blkhd, 13/16"-16

1шт.

7

201-423

TEE,9/16"-18, Blkhd, Run, ORFS

13/16-16 inch face seal branch x face seal x bulkhead face seal, Includes: Ref. 8

1шт.

8

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

9

201-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

ELBOW 90 degree, 13/16-16 inch face seal x swivel face seal, Includes: Ref. 10

1шт.

10

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

11

1989667C1

HOSE

36 inch (915 mm) long, header lift cylinder

2шт.

12

201-348

ELBOW,45 Degree Elbow, 13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Includes Ref. 13 and 14

2шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

14

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

15

127779C94

CYLINDER,57.07mm Rod, 520.7mm Stroke

ASSEMBLY 2-5/8 (67) ID x 20-1/2 inch (521 mm) stroke, hydraulic, parts list Figure 8-36

2шт.

15

127779C94R

REMAN-HYD CYLINDER

1688 CASE IH AXIAL-FLOW COMBINE, ASSEMBLY 2-5/8 (67) ID x 20-1/2 inch (521 mm) stroke, hydraulic (1/93-12/94)

2шт.

15

127779C94C

CORE-HYD CYLINDER

Return Number

2шт.

16

187834C1

ANGLE

BRACKET lift tube, upper

1шт.

17

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 inch

1шт.

18

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

19

1989653C1

SUPPORT

header cylinder fitting

1шт.

20

470375C1

CLAMP,1", Insul, 3/8" Bolt

double

2шт.

21

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

BOLT hex, self-locking, special, 3/8 NC x 1 inch

2шт.

22

231-5146

FLANGE NUT,3/8"-16

2шт.

23

299269C91

CLAMP

retaining

1шт.

24

425-1410

JAM NUT,Jam, 5/8"-11, G5

hex, jam, 5/8 inch NC

1шт.
