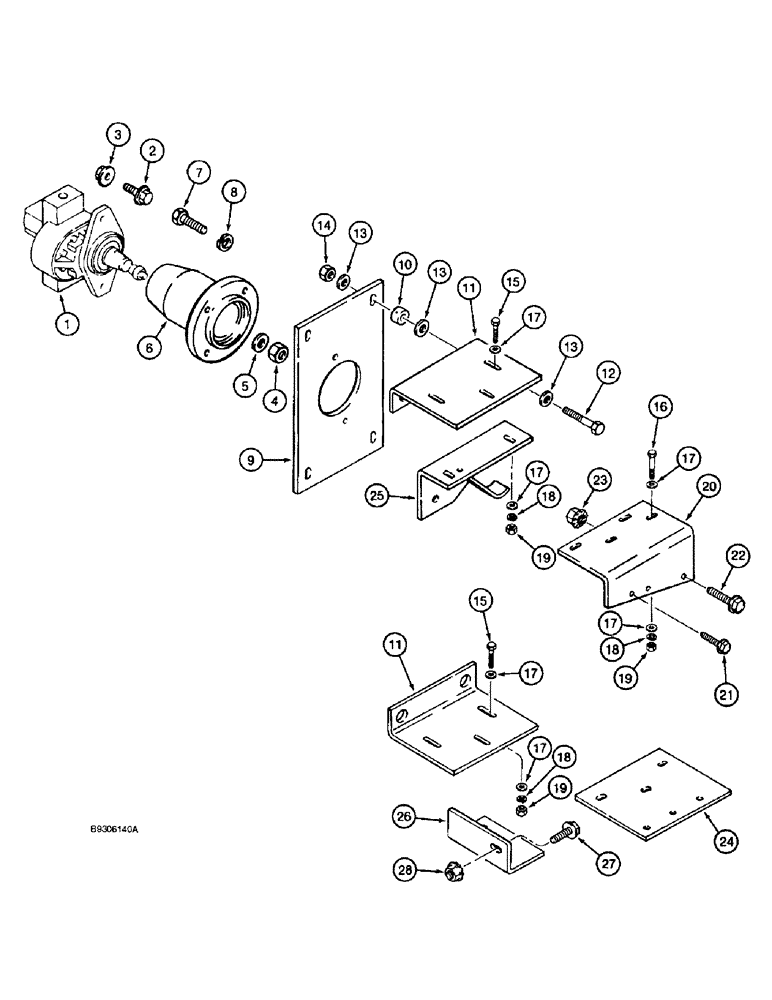

Запчасти Case IH 1688 (8-30) - AUXILIARY PUMP AND MOUNTING (07) - HYDRAULICS

1

1994653C2

PUMP

ASSEMBLY auxiliary drive

1шт.

1994653C2R

REMAN-HYD PUMP

1688 (1/93 - 12/94)

1шт.

1994653C2C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1543179C1

SEAL KIT

seal, pump, not shown

1шт.

1543180C1

PACKAGE, REPAIR

KIT seal, relief valve, not shown

1шт.

1543181C2

PACKAGE, REPAIR

KIT flow control valve, not shown

1шт.

1543182C2

PACKAGE, REPAIR

KIT front pump, not shown

1шт.

1543183C1

PACKAGE, REPAIR

KIT pump, rear, not shown

1шт.

1543196C1

SEAL KIT

shaft seal, not shown

1шт.

2

409-7824

BOLT,Hex Flg, 1/2" - 13 x 1 1/2", Spcl

BOLT hex serrated flange, 1/2 NC x 1-1/2 inch

2шт.

3

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

4

425-118

NUT,1/2"-20, G5

1шт.

5

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

flat, hardened, 17/32 x 1-1/4 x 3/16 inch

1шт.

6

1541612C1

HUB

hydraulic pump

1шт.

7

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

8

492-11038

LOCK WASHER,3/8"

4шт.

9

1541733C1

LARGE PLATE

PLATE, LARGE SUPPORT auxiliary pump

1шт.

10

R29799

SHOCK ABSORBER

INSULATOR rubber

4шт.

11

1541732C2

SUPPORT ASSY.

isomount, auxiliary pump

2шт.

12

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

hex, 1/2 NC x 2-1/2 inch

4шт.

13

495-81164

WASHER,0.53" ID x 1.75" OD x 0.18" Thk

flat, 17/32 x 1-3/4 x 11/64 inch

12шт.

14

231-4118

LOCK NUT,1/2"-13, GB

hex, self-locking, 1/2 inch NC

4шт.

15

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

6шт.

16

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

17

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

14шт.

18

492-11038

LOCK WASHER,3/8"

7шт.

19

425-106

NUT,3/8"-16, Cl 5

7шт.

20

1541734C1

SUPPORT

upper, isomount

1шт.

21

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

2шт.

22

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

1шт.

23

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

1шт.

24

1541735C1

SUPPORT

lower, isomount

1шт.

25

1541742C1

SUPPORT ASSY.

belt guide, upper

1шт.

26

1541741C1

SUPPORT

belt guide, lower

1шт.

27

458-616

BOLT,Hex Flg, 3/8" - 16 x 1", Gr 5

BOLT hex flange, 3/8 NC x 1 inch

1шт.

28

231-5146

FLANGE NUT,3/8"-16

1шт.
