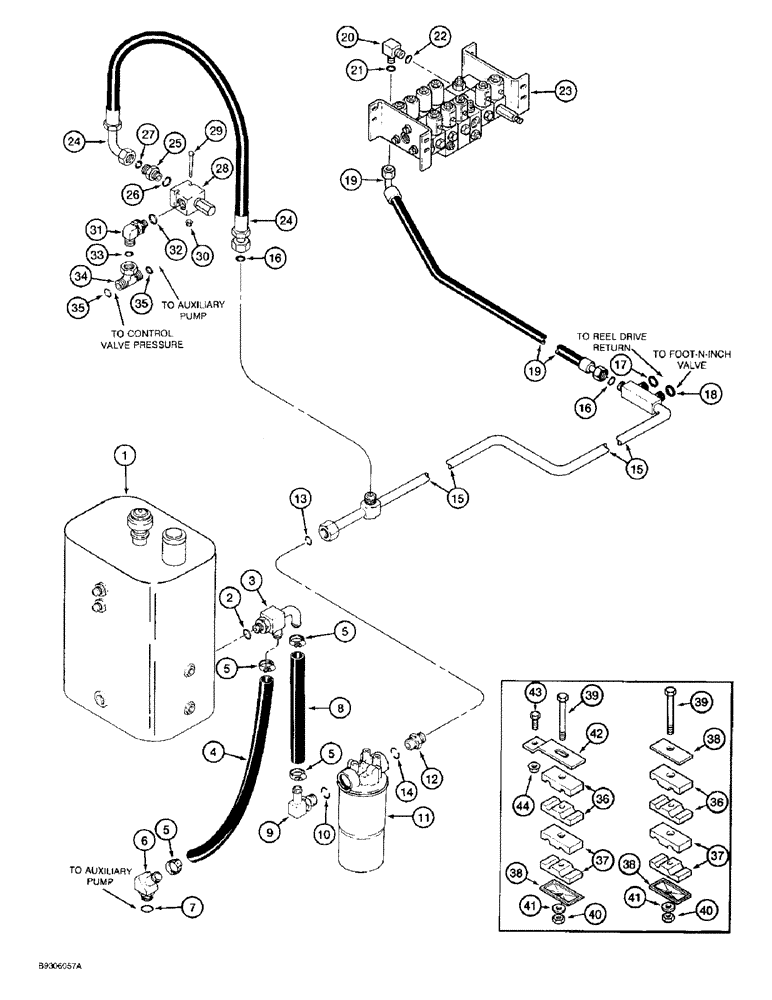

Запчасти Case IH 1688 (8-26) - HEADER LIFT RETURN SYSTEM (07) - HYDRAULICS

1

1343660C1

RESERVOIR

ASSEMBLY hydraulic oil, 10 gallon, parts list Figure 8-2

1шт.

2

1541642C1

TEE

special, beaded tube, Includes: Ref. 3

1шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

4

1541616C2

HOSE

20-3/4 inch (525 mm) long, cut from 1541952C1 bulk, see this Figure

1шт.

5

214-3228

HOSE CLAMP,1" - 1-7/8", HD Worm, W/ Liner

Adjustable

4шт.

6

217-316

FITTING,45 Degree Elbow, 1" Hose Barb x 1-5/16" - 12 Male ORB

ELBOW 45 degree, 1 stem end x 1-5/16-12 inch adj O-ring boss, Includes: Ref. 7

1шт.

7

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

8

1541694C1

HOSE

28-3/16 inch (715 mm) long, cut from 1541952C1 bulk, see this Figure

1шт.

9

217-354

FITTING,90 Degree Elbow, 1" Hose Barb x 1-5/8" - 12 Male ORB

ELBOW 90 degree, 1 stem end x 1-5/8-12 inch adj O-ring boss, Includes: Ref. 10

1шт.

10

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

11

87784C91

FILTER ASSY

system return, parts list Figure 8-8

1шт.

12

201-122

HYD CONNECTOR,1 7/16"-12 ORFS x 1 5/8"-12 ORB

ADAPTER straight, 1-7/16-12 face seal x 1-5/8-12 inch O-ring boss, Includes: Ref. 13 and 14

1шт.

13

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

14

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

15

1989284C2

HYD TUBE,1" OD

valve stack return

1шт.

16

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

17

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

18

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

19

1989530C1

HOSE

33-7/8 inch (860 mm) long, valve stack drain

1шт.

20

201-350

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 7/8" - 14 Male ORB

90 degree, 1-3/16-12 face seal x 7/8-14 inch adj O-ring boss, Includes: Ref. 21 and 22

1шт.

21

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

23

REF

INSTRUCTION

VALVE ASSEMBLY control, parts list Figures 8-38 - 8-60

1шт.

24

1980050C1

HOSE

29 inch (737 mm) long, relief valve drain

1шт.

25

201-141

HYD CONNECTOR,1 3/16"-12 ORFS x 3/4"-16 ORB

ADAPTER straight, 1-3/16-12 face seal x 3/4-16 inch O-ring boss, Includes: Ref. 26 and 27

1шт.

26

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

27

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

28

1542686C1

VALVE

relief, 2500 psi

1шт.

29

413-444

BOLT,Hex, 1/4" - 20 x 2-3/4", Gr 5

hex, 1/4 NC x 2-3/4 inch

2шт.

30

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

31

201-358

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 3/4" - 16 Male ORB

90 degree, 1-3/16-12 face seal x 3/4-16 inch adj O-ring boss, Includes: Ref. 32 and 33

1шт.

32

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

33

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

34

201-419

TEE,1 3/16"-12 ORFS x 1 3/16"-18 Sw Br

1-3/16-12 inch swivel face branch x face seal x face seal, Includes: Ref. 35

1шт.

35

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

36

1347072C1

CLAMP

3/4 inch OD

4шт.

37

1989362C1

CLAMP

two piece

4шт.

38

1347127C1

PLATE

clamp, hose

6шт.

39

424-564

BOLT,Hex, 5/16" - 18 x 4", Gr 2

BOLT hex, 5/16 NC x 4 inch, grade 2

4шт.

40

232-4115

LOCK NUT,5/16"-18, GC

1шт.

41

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16")

1шт.

42

1989304C2

ANGLE

BRACKET tube, front mounting

2шт.

43

458-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

44

425-105

NUT,5/16"-18, G5

2шт.

1541952C1

HOSE,25.4mm ID x 7620mm L

bulk, 1 (25) ID x 300 inch (7260 mm) long

1шт.
