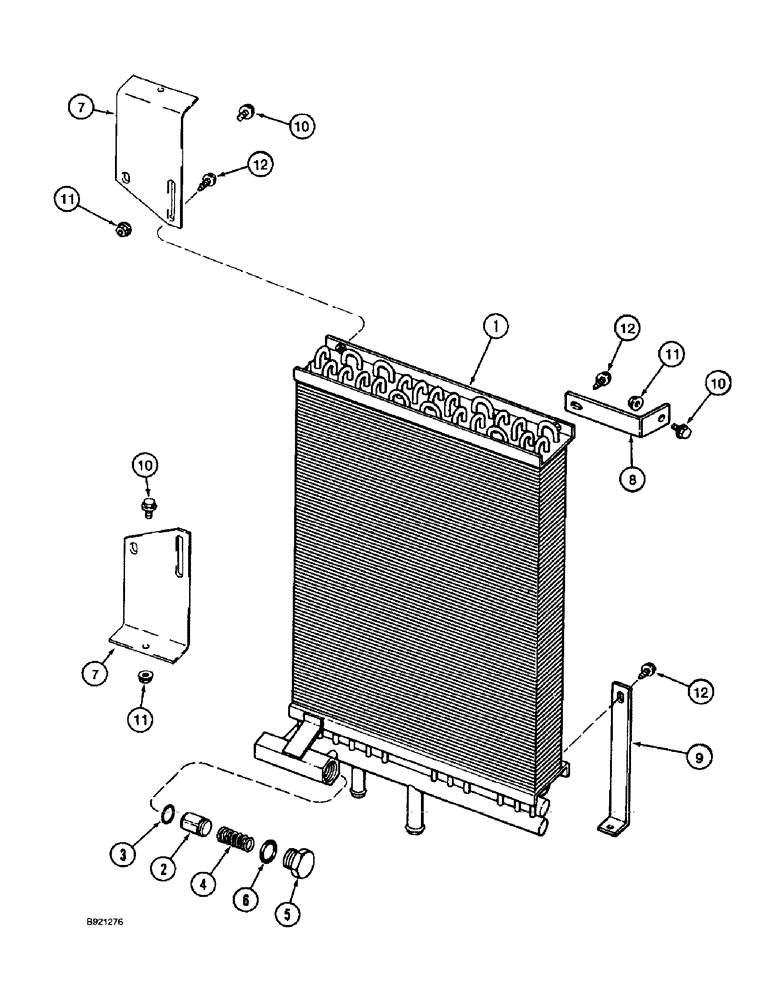

Запчасти Case IH 1688 (8-20) - OIL COOLER AND MOUNTING (07) - HYDRAULICS

1

111078A3

COOLER

ASSEMBLY hydraulic oil, Includes: Ref. 2 - 6

1шт.

2

93198C1

VALVE

bypass

1шт.

3

238-5020

O-RING,0.07" Thk x 0.864" ID, -20, Cl 5, 75 Duro

1шт.

4

A189029

SPRING

bypass valve

1шт.

5

273916

PLUG,Hex, 1-5/16" - 12 ORB

Includes Ref. 6

1шт.

6

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

7

1541786C4

SUPPORT

oil cooler, left hand

2шт.

8

1541787C2

ANGLE

SUPPORT oil cooler, upper, right hand

1шт.

9

1324914C3

ANGLE

SUPPORT oil cooler, lower, right hand

1шт.

10

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

4шт.

11

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

12

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

4шт.
