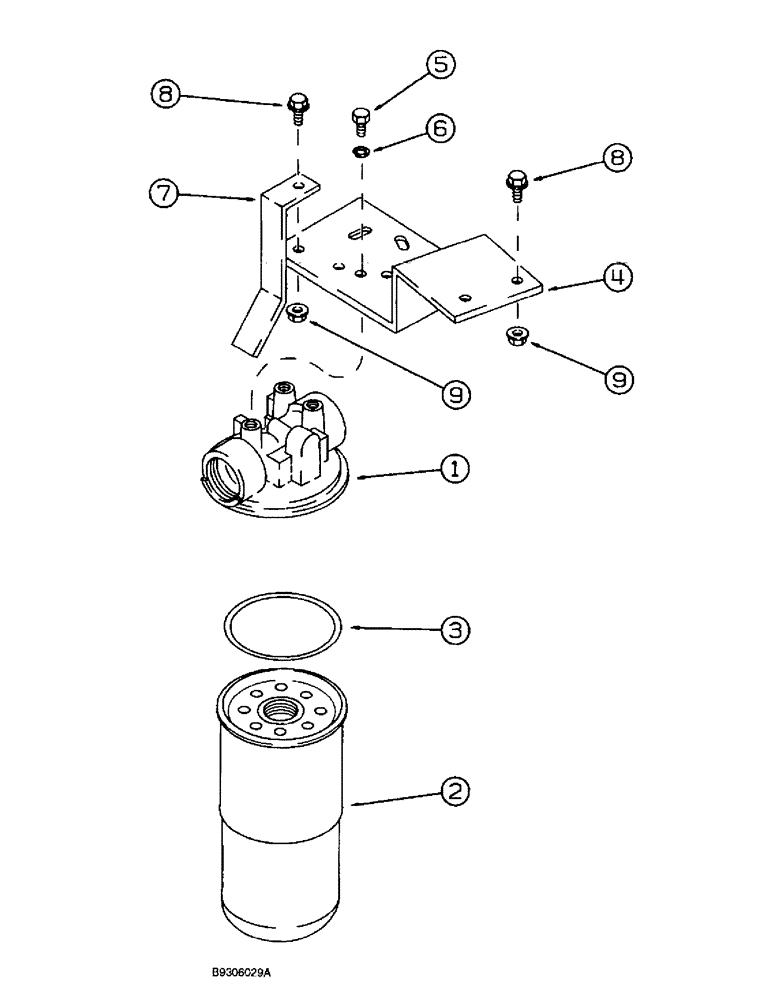

Запчасти Case IH 1688 (8-10) - HYDRAULIC SUCTION FILTER, CHARGE FILTER MOUNTING (07) - HYDRAULICS

87784C91

FILTER ASSY

hydraulic charge pump, suction, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

HEAD filter, hydraulic suction

1шт.

2

A177605

HYDRAULIC OIL FILTER

ELEMENT hydraulic suction

1шт.

Part of KIT, part number 1329214C1

1шт.

3

93196C1

O-RING,0.139" Thk x 4.484" ID, -246, 75 Duro

GASKET filter element, hydraulic suction

1шт.

Part of KIT, part number 1329214C1

1шт.

4

1979993C2

SUPPORT

charge pump filter, mounting

1шт.

5

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

Charge filter mounting

3шт.

6

492-11038

LOCK WASHER,3/8"

Charge filter mounting

3шт.

7

1989389C1

SUPPORT

filter bracket, charge mounting

1шт.

8

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

Charge filter mounting

4шт.

9

231-5146

FLANGE NUT,3/8"-16

Charge filter mounting

4шт.

1329214C1

HYDRAULIC OIL FILTER

KIT filter element

1шт.
