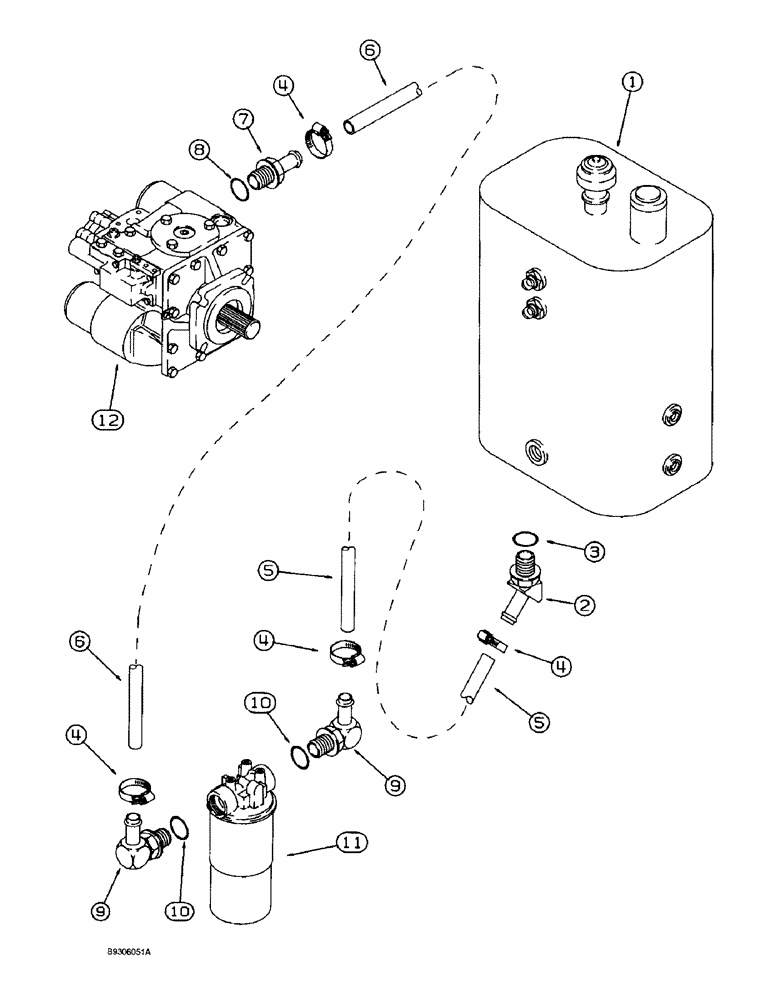

Запчасти Case IH 1688 (8-06) - HYDROSTATIC PUMP SYSTEM, RESERVOIR TO PUMP (07) - HYDRAULICS

1

1343660C1

RESERVOIR

ASSEMBLY hydraulic oil, 10 gallon, parts list Figure 8-2

1шт.

2

217-317

FITTING,45 Degree Elbow, 1-1/4" Hose Barb x 1-5/8" - 12 Male ORB

Adj., Incl. Ref. 3

1шт.

3

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

4

214-3232

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm, W/ Liner

Adjustable

4шт.

5

1541688C1

FLEXIBLE HOSE

26 inch (660 mm) long, cut from 1541953C1 bulk, see this Figure

1шт.

6

109207A1

FLEXIBLE HOSE

29 inch (737 mm) long, cut from 1541953C1 bulk, see this Figure

1шт.

7

217-184

FITTING,1-1/4" Hose Barb x 1-5/16" - 12 Male ORB

Includes Ref. 8

1шт.

8

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

9

217-355

FITTING,90 Degree Elbow, 1-1/4" Hose Barb x 1-5/8" - 12 Male ORB

Adjustable, Includes Ref. 10

2шт.

10

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

11

87784C91

FILTER ASSY

charge pump suction, parts list Figure 8-10

1шт.

12

REF

INSTRUCTION

PUMP ASSEMBLY hydrostatic, parts list Figures 6-22 - 6-32

1шт.

1541953C1

HOSE

bulk, 1-1/4 (32 mm) ID x 300 inch (7260 mm) long

1шт.
