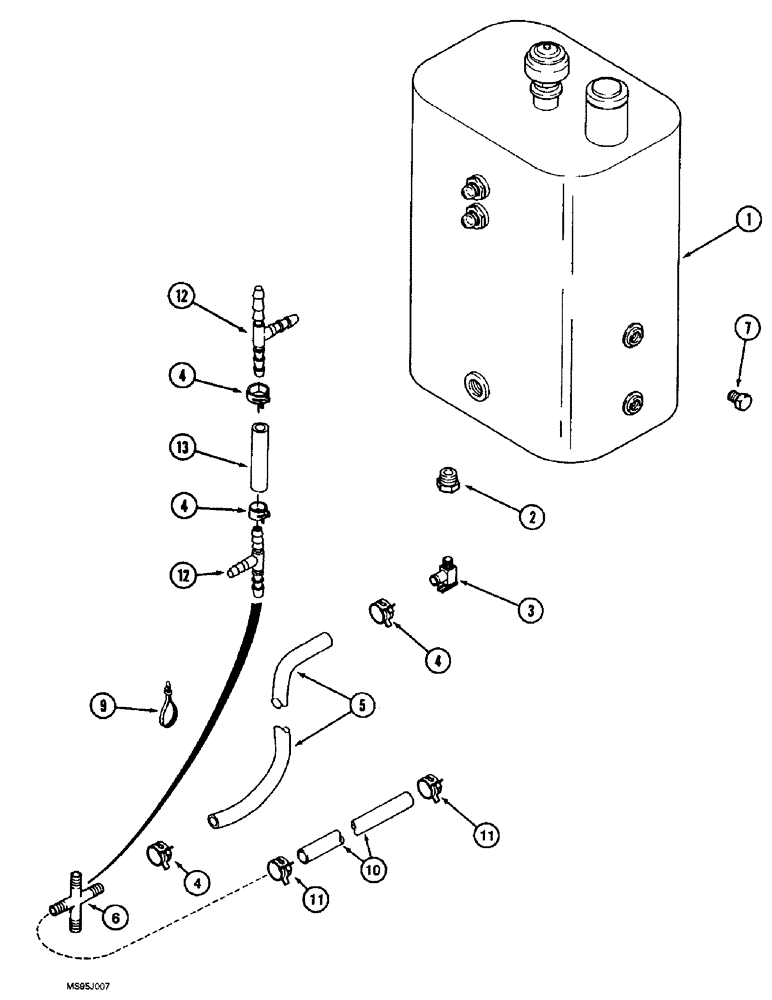

Запчасти Case IH 1688 (8-04) - HYDRAULIC RESERVOIR DRAIN (07) - HYDRAULICS

1

1343660C1

RESERVOIR

ASSEMBLY hydraulic oil, 10 gallon, parts list Figure 8-2

1шт.

2

217-44

REDUCER,1/2" - 14 NPT x 3/8" - 18 NPT

1шт.

3

301803R1

SHUT-OFF VALVE

reservoir drain

1шт.

4

1954736C1

HOSE CLAMP,#24

2-4шт.

5

1347032C1

LARGE HOSE

HOSE,LARGE 53-3/8 inch (1350 mm) long, cut from 1977295CX bulk, see this Figure

1шт.

6

119254A1

CROSS

oil drain, no longer available, order two of 1977169C1 Ref. 12 tee, one of 1347070C2 Ref. 13 hose and two of 1954736C1 Ref. 4 clamp

1шт.

7

217-411

PLUG,Hex Hd, 1/2" - 14 NPT

2шт.

9

702093C1

CABLE TIE

CABLE STRAP

1шт.

10

1977294C3

HOSE

22-7/8 inch (580 mm) long, cut from 1977295CX bulk, see this Figure

1шт.

11

1954736C1

HOSE CLAMP,#24

Adjustable, Replaces 112700R1

2шт.

12

1977169C1

TEE

oil drain

2шт.

13

1347070C2

HOSE,15.75 mm ID x 75.00 mm

3 inch (75 mm) long, cut from 1977295CX bulk, see this Figure

1шт.

1977295CX

LARGE HOSE

HOSE,LARGE bulk, 5/8 (16) x 7/8 (22) x 600 inch (15240 mm) long

1шт.
