(1688) - CASE IH AXIAL-FLOW COMBINE (1/93-12/94)
/
(07) - HYDRAULICS
/

(8-02) - HYDRAULIC RESERVOIR, PRIOR TO P.I.N. JJC0120263, P.I.N. JJC0120263 AND AFTER

Запчасти Case IH 1688 (8-02) - HYDRAULIC RESERVOIR, PRIOR TO P.I.N. JJC0120263, P.I.N. JJC0120263 AND AFTER (07) - HYDRAULICS

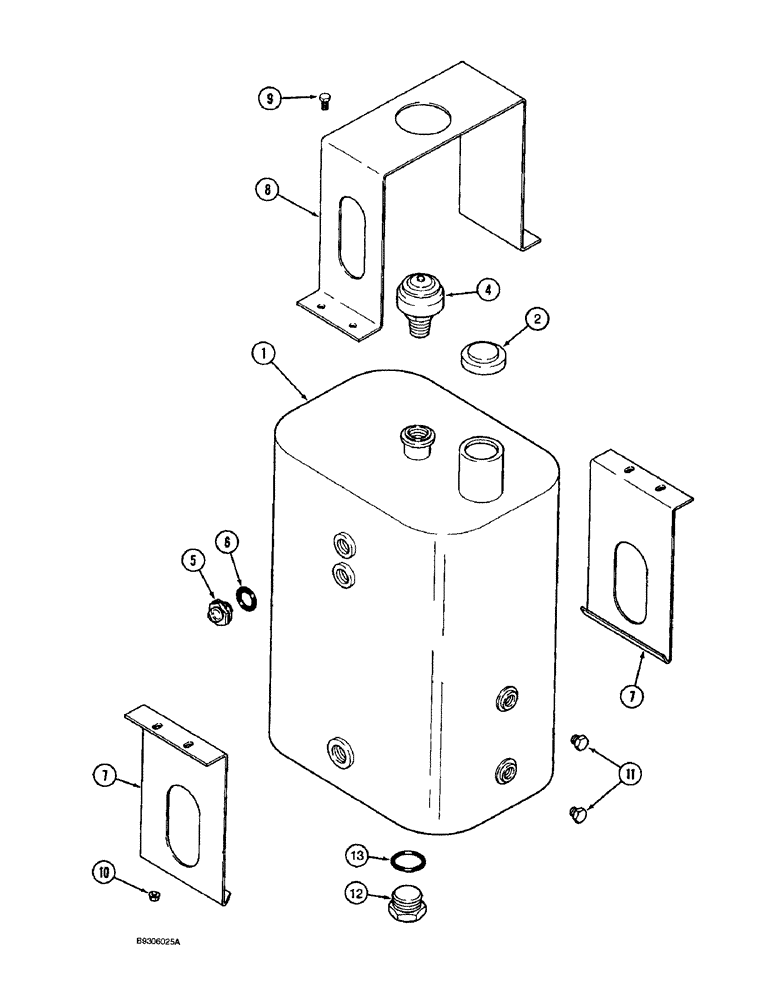

Схема запчастей Case IH 1688 - (8-02) - HYDRAULIC RESERVOIR, PRIOR TO P.I.N. JJC0120263, P.I.N. JJC0120263 AND AFTER (07) - HYDRAULICS
8
11
12
7
6
13
4
7
10
9
1
2
5

№

Артикул

Название

Примечание

Количество

1343660C1

RESERVOIR

ASSEMBLY hydraulic oil, 10 gallon, Includes: Ref. 1 - 6 to JJC0120263

1шт.

1

NSS

NOT SOLD SEPARAT

TANK hydraulic reservoir to JJC0120263

1шт.

2

1272941C1

CAP

breather, fill, replaces 1346309C1, Includes: Ref. 3 to JJC0120263

1шт.

3

104407A1

SCREEN

filter, fill cap, not shown to JJC0120263

1шт.

4

923745C91

BREATHER ASSY.

reservoir to JJC0120263

1шт.

5

244600R92

SIGHTGLASS

GAUGE sight, oil level to JJC0120263

2шт.

6

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

to JJC0120263

2шт.

7

1979829C1

SUPPORT

hydraulic reservoir to JJC0120263

2шт.

8

1347146C1

CLAMP

CLAMP reservoir to JJC0120263

1шт.

9

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

to JJC0120263

4шт.

10

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

to JJC0120263

4шт.

11

217-411

PLUG,Hex Hd, 1/2" - 14 NPT

to JJC0120263

2шт.

12

218-5161

PLUG,Hex Hd, 1 5/8"-12 ORB

hex, 1-5/8-12 inch O-ring boss, Includes: Ref. 13 to JJC0120263

1шт.

13

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

to JJC0120263

1шт.

1343660C2

TANK, HYDRAULIC OIL

RESERVOIR ASSEMBLY 10 gallon, Includes: Ref. 1 - 6, Start Serial: JJC0120263

1шт.

1

NSS

NOT SOLD SEPARAT

TANK hydraulic reservoir, Start Serial: JJC0120263

1шт.

2

1272941C1

CAP

breather, fill, replaces 1346309C1, Includes: Ref. 3, Start Serial: JJC0120263

1шт.

3

104407A1

SCREEN

filter, fill cap, not shown, Start Serial: JJC0120263

1шт.

4

923745C91

BREATHER ASSY.

reservoir, Start Serial: JJC0120263

1шт.

5

132865A1

SIGHTGLASS

GAUGE sight, oil level, Start Serial: JJC0120263

2шт.

6

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

, Start Serial: JJC0120263

2шт.

7

1979829C1

SUPPORT

hydraulic reservoir, Start Serial: JJC0120263

2шт.

8

1347146C1

CLAMP

CLAMP reservoir, Start Serial: JJC0120263

1шт.

9

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

, Start Serial: JJC0120263

4шт.

10

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

, Start Serial: JJC0120263

4шт.
