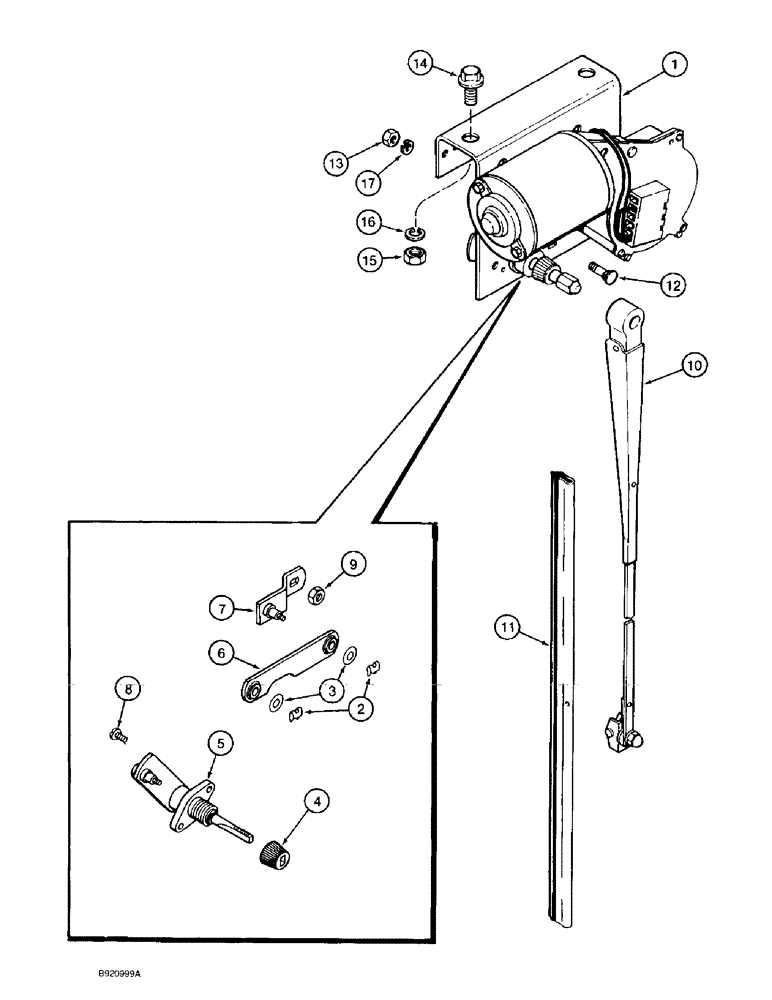

Запчасти Case IH 1688 (4-54) - WINDSHIELD WIPER (06) - ELECTRICAL

1

109740A1

WIPER MOTOR

MOTOR, WIPER ASSEMBLY wiper, includes mounting bracket, Includes: Ref. 2 - 9

1шт.

2

739487C1

CLIP

spring

2шт.

Part of KIT, part number 1267542C91

1шт.

3

148074R1

WASHER

flat, hardened, 6.0 x 14.4 x 0.4 mm

2шт.

Part of KIT, part number 1267542C91

1шт.

4

1267556C1

BUTTON

NUT knurled drive

1шт.

Part of KIT, part number 1267542C91

1шт.

5

NSS

NOT SOLD SEPARAT

SHAFT includes pivot, motor

1шт.

Part of KIT, part number 1267542C91

1шт.

6

NSS

NOT SOLD SEPARAT

LINK connecting

1шт.

Part of KIT, part number 1267542C91

1шт.

7

NSS

NOT SOLD SEPARAT

ARM drive

1шт.

Part of KIT, part number 1267542C91

1шт.

8

NSS

NOT SOLD SEPARAT

SCREW includes washer, motor

2шт.

Part of KIT, part number 1267542C91

1шт.

9

NSS

NOT SOLD SEPARAT

NUT retaining

1шт.

Part of KIT, part number 1267542C91

1шт.

10

1321282C1

ARM

wiper, 18 inch (457 mm)

1шт.

11

1327520C1

WIPER BLADE

BLADE, WIPER 22 inch (559 mm)

1шт.

12

412-416

CARRIAGE BOLT,Short Sq Nk 1/4" - 20 x 1", Gr 2

BOLT carriage, 1/4 NC x 1 inch, grade 2

1шт.

13

425-104

NUT,1/4"-20, Cl 5

1шт.

14

1327763C1

SCREW,Hex Wshr Hd, 3/8" - 16 x 3/4"

hex washer head, 3/8 NC x 3/4 inch

2шт.

15

425-106

NUT,3/8"-16, Cl 5

2шт.

16

492-11038

LOCK WASHER,3/8"

2шт.

17

492-11025

LOCK WASHER,1/4"

1шт.

1267542C91

PACKAGE

KIT wiper linkage, Includes: Refs. 2 - 9

1шт.
