Запчасти Case IH 1688 (4-43A) - BATTERY TRAY (06) - ELECTRICAL

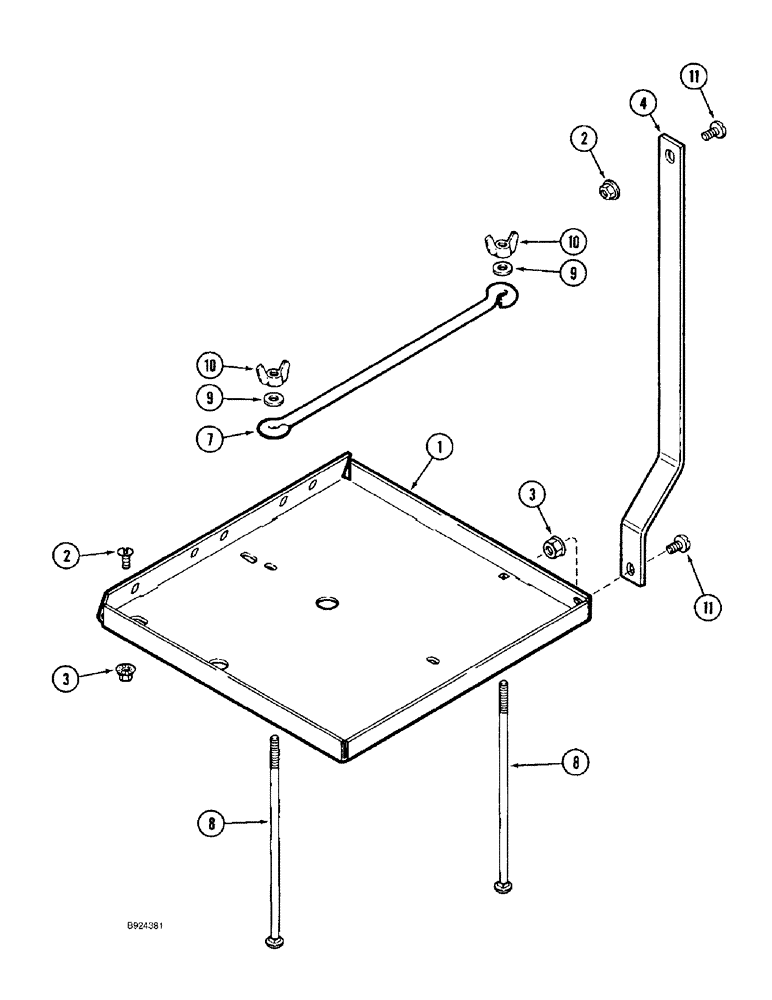

Схема запчастей Case IH 1688 - (4-43A) - BATTERY TRAY (06) - ELECTRICAL
10
10
11
11
7
8
2
9
4
8
2
3
1
9
3

Артикул

Название

Примечание

Количество

1

194267C6

TRAY

battery, replaces 194267C5

1шт.

2

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

slotted truss head, 5/16 NC x 1 inch

3шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

5шт.

4

1977192C2

STRAP

SUPPORT battery tray

1шт.

7

188116C1

CLAMP

battery hold down

1шт.

8

411-5152

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 9 1/2", Gr 2

BOLT carriage, 5/16 NC x 9-1/2 inch, grade 2

2шт.

9

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16")

2шт.

10

129-419

WING NUT,5/16"-18

wing, 5/16 inch NC

2шт.

11

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 inch

2шт.

Выбрано товаров: 9
