Запчасти Case IH 1688 (4-42) - BATTERY AND BATTERY CABLES, WITH TAPERED CLAMP POSTS (06) - ELECTRICAL

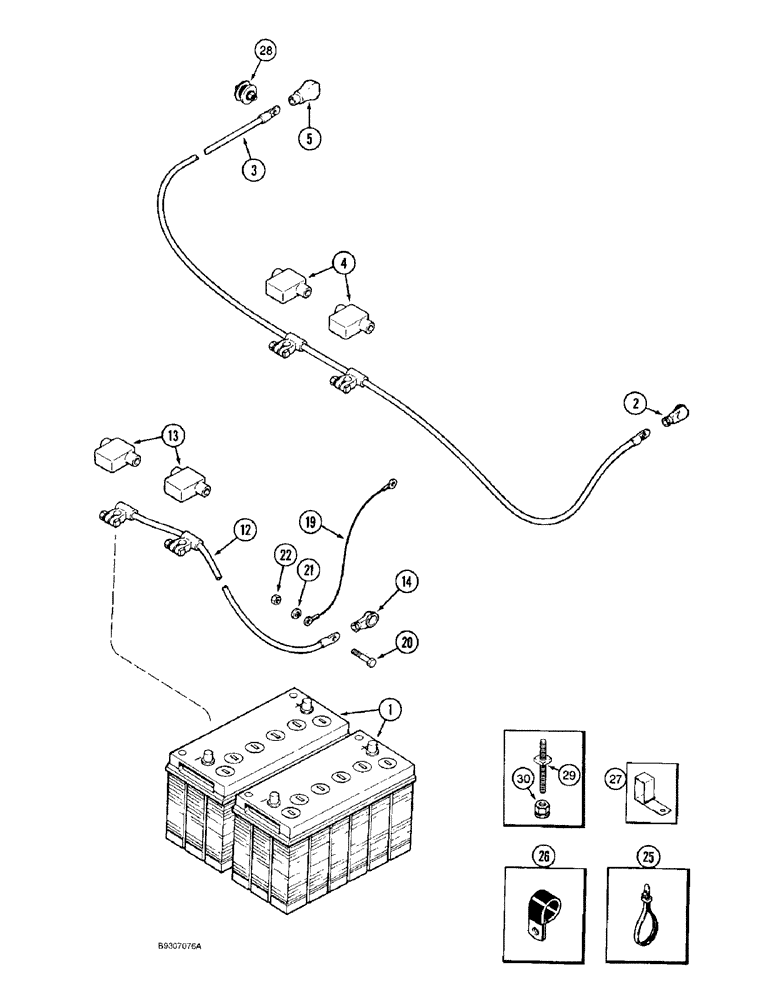

Схема запчастей Case IH 1688 - (4-42) - BATTERY AND BATTERY CABLES, WITH TAPERED CLAMP POSTS (06) - ELECTRICAL
22
5
4
26
19
29
14
12
3
25
20
13
2
30
1
28
27
21

Артикул

Название

Примечание

Количество

1

BMF31G

BATTERY, DRY

BATTERY DRY 12V, Electrical supply

2шт.

2

S115407

BOOT

rubber, battery cable

1шт.

3

103842A1

CABLE

ASSEMBLY battery, positive, Includes: Ref. 4 and 5

1шт.

4

NSS

NOT SOLD SEPARAT

BOOT battery cable

2шт.

5

NSS

NOT SOLD SEPARAT

BOOT battery cable

1шт.

12

92023C3

CABLE

ASSEMBLY battery, ground, Includes: Ref. 13 and 14

1шт.

13

NSS

NOT SOLD SEPARAT

BOOT battery cable

2шт.

14

NSS

NOT SOLD SEPARAT

BOOT battery cable

1шт.

19

158477C91

CABLE

ground, cab and valve bank

2шт.

20

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

21

492-11038

LOCK WASHER,3/8"

1шт.

22

425-106

NUT,3/8"-16, Cl 5

1шт.

25

702093C1

CABLE TIE

CABLE STRAP

1шт.

26

515-23254

CLAMP,1", Insul, 3/8" Bolt

P-type, Battery cable

3шт.

27

102251A1

CLIP

battery cable

3шт.

28

A187523

JUNCTION BLOCK

cable junction, harness

1шт.

29

128289A1

BOLT,5/16" - 18 x 2 3/16"

BOLT battery cable, special

2шт.

30

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

Выбрано товаров: 18
