(4-40) - INSTRUMENT CLUSTER AND TACHOMETER

Запчасти Case IH 1688 (4-40) - INSTRUMENT CLUSTER AND TACHOMETER (06) - ELECTRICAL

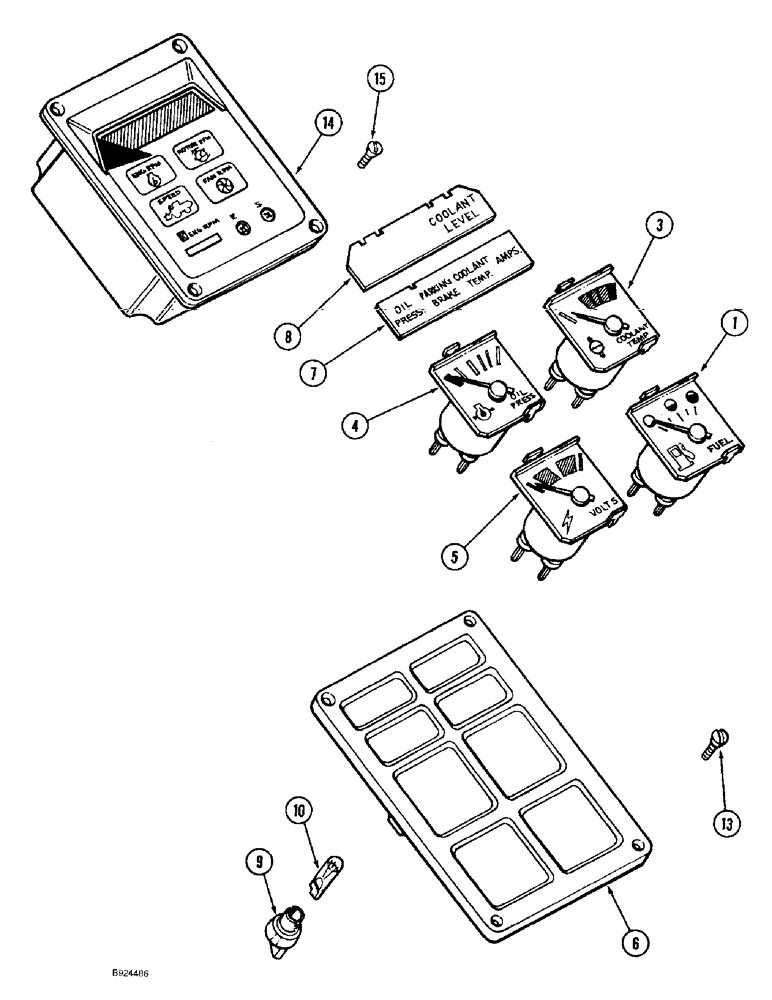

Схема запчастей Case IH 1688 - (4-40) - INSTRUMENT CLUSTER AND TACHOMETER (06) - ELECTRICAL
9
13
6
1
3
15
8
14
5
4
7
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1983246C1

CLUSTER, INSTR.

CLUSTER, INSTRUMENT ASSEMBLY gauges, Includes: Ref. 1 - 10

1шт.

1

121604C2

ELECTRICAL GAUGE

fuel

1шт.

3

121605C3

ELECTRICAL GAUGE

coolant temperature

1шт.

4

121606C2

ELECTRICAL GAUGE

oil pressure

1шт.

5

121607C2

ELECTRICAL GAUGE

system voltage

1шт.

6

121608C1

GASKET

instrument cluster

1шт.

7

187597C1

LENS

oil pressure, brake, temperature and amperes

1шт.

8

1979357C1

LENS

coolant level

1шт.

9

121611C1

SOCKET

bulb, instrument cluster

8шт.

10

D71346

TAIL LAMP,12V

lamp, No. 168

8шт.

13

265-13512

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

self-tapping, oval Phillips, No. 10-16 x 3/4 inch

4шт.

1935114C1

ELECTRICAL GAUGE

TACHOMETER engine, remanufactured, North America only

1шт.

1935113C1

CORE

RETURN NUMBER use this part number to return tachometer core for credit when using a remanufactured assembly

1шт.

14

1987322C2

TACHOMETER

engine

1шт.

15

265-13512

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

self-tapping, oval Phillips, No. 10-16 x 3/4 inch

4шт.
