Запчасти Case IH 1688 (4-38) - SHAFT SPEED MONITOR CONTROL (06) - ELECTRICAL

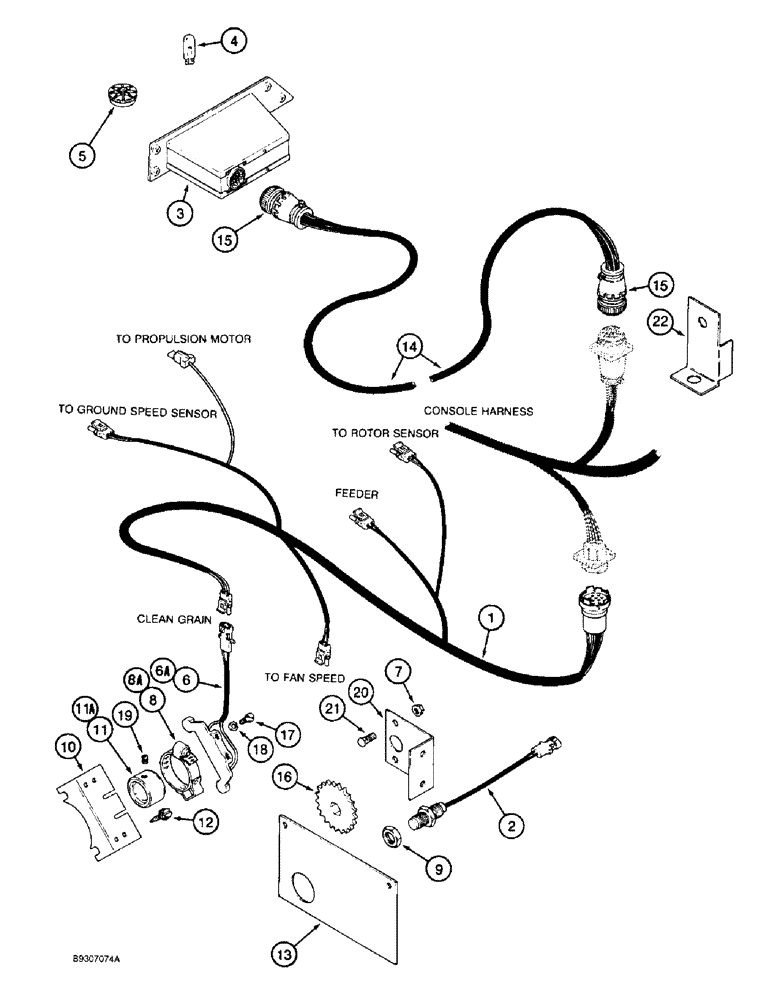

Схема запчастей Case IH 1688 - (4-38) - SHAFT SPEED MONITOR CONTROL (06) - ELECTRICAL
6
14
5
10
11
12
15
16
20
15
2
17
4
8a
9
1
22
6a
19
11a
3
13
7
18
8
21

Артикул

Название

Примечание

Количество

1

1994837C1

HARNESS

shaft speed rear

1шт.

2

245193C2

SENSOR

transducer, for feeder, ground speed, rotor and fan

4шт.

3

245275C91

CASE ASSY.

MONITOR shaft speed, includes decal

1шт.

3

1935072C1

REMAN-ELECT MONITOR

1688 CASE IH AXIAL-FLOW COMBINE, MONITOR shaft speed (1/93-12/94)

1шт.

3

1935071C1

CORE-MONITOR

Return Number

1шт.

4

A48888

BULB

lamp

1шт.

5

178876C1

SUPPRESSOR

audible alarm

1шт.

6

245365C1

TRANSMITTER

SENSOR monitor control, clean grain, used to JJC0119030

1шт.

6a

1345482C1

TRANSMITTER

SENSOR clean grain, used, replaced by 1345482C2, Start Serial: JJC0119030

1шт.

6a

1345482C2

TRANSMITTER

SENSOR clean grain, replaces 1345482C1

1шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

8

178800C1

CLAMP

sensor, clean grain, if used

1шт.

8a

178799C1

CLAMP,44.45mm - 63.5mm

MAGNET sensor, straw chopper

1шт.

9

84116C1

NUT

hex, self-locking, 3/4 inch NF

1шт.

10

183869C3

SUPPORT

BRACKET sensor, clean grain, if used

1шт.

11

1319397C1

COLLAR,31.88mm ID x 44.45mm OD x 23.24mm L

locking, clean grain auger, to JJC0119030

1шт.

11a

557115R11

COLLAR

locking, clean grain auger, Start Serial: JJC0119030

1шт.

12

280-1478

SELF-TAP SCREW,HWH, 1/4-14 x 1/2"

self-tapping, hex washer head, 1/4-14 x 1/2 inch

4шт.

13

1979323C1

SHIELD

COVER clean grain auger sensor

1шт.

14

245242C1

HARNESS

ASSEMBLY shaft speed front, Includes: Ref. 15

1шт.

15

131498C1

ELEC CONNECTOR

harness

2шт.

16

1317973C2

SPROCKET ASSY.

feeder sensor, with rock trap, if used

1шт.

17

470-1086

SCREW,Pan HD, #8 - 32 x 3/8"

machine, pan head slotted, No. 8 NC x 3/8 inch

3шт.

18

492-11008

LOCK WASHER,#8

3шт.

19

483-1256

SET SCREW,Hex Soc, 1/4"-20 x 3/8"

set, hex socket headless, 1/4 NC x 3/8 inch, cup point, if used

1шт.

20

1321392C2

SUPPORT

feeder sensor, with rock trap, if used

1шт.

21

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

If used

2шт.

22

1317950C1

SUPPORT

sensor, feeder, without rock trap

1шт.

Выбрано товаров: 28
