Запчасти Case IH 1688 (4-34) - AUTOMATIC HEADER HEIGHT CONTROL HARNESS (06) - ELECTRICAL

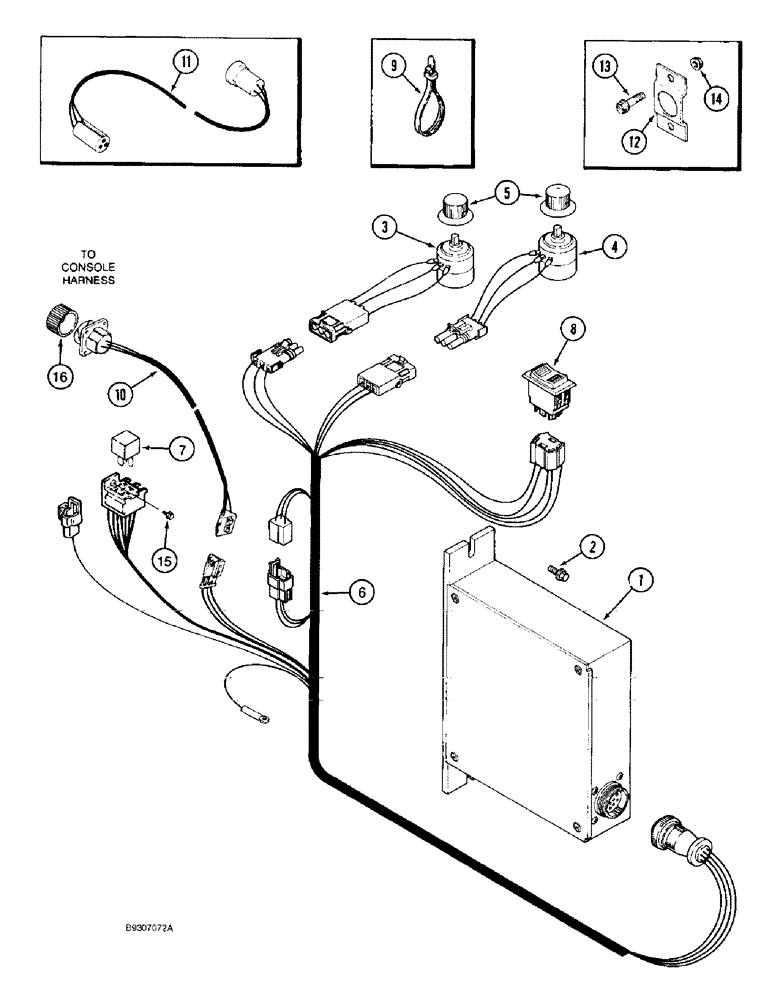

Схема запчастей Case IH 1688 - (4-34) - AUTOMATIC HEADER HEIGHT CONTROL HARNESS (06) - ELECTRICAL
2
3
10
9
13
14
1
16
6
12
5
8
15
4
7
11

Артикул

Название

Примечание

Количество

1

91479C2

CASE

KIT module, automatic header height control, Includes: Ref. 2

1шт.

2

281-1476

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/8"

self-tapping, hex washer head, 1/4 NC x 3/8 inch

2шт.

3

245385C1

POTENTIOMETER,1000 Ohm

Single, Header Height Controll

1шт.

4

245925C1

POTENTIOMETER,1000 Ohm

Single, Sensitivity Control

1шт.

5

1345235C1

BUTTON

KNOB control

2шт.

6

113513A1

HARNESS

automatic header height

1шт.

7

1983394C2

RELAY

electrical, 12 volt, replaces 146461C1

1шт.

8

245012C1

SWITCH

rocker, automatic header control, ON-OFF

1шт.

9

702093C1

CABLE TIE

CABLE STRAP

1шт.

10

1994842C1

HARNESS

automatic header height control hose

1шт.

11

1331312C1

WIRE HARNESS

extension, automatic header height control

1шт.

12

91795C1

SUPPORT

BRACKET connector mounting

1шт.

13

363-31016

SCREW,Hex Wash Hd, #10-24 x 1"

machine, hex washer head, No. 10 NC x 1 inch

2шт.

14

231-51409

SERRATED NUT,Flg, USR, #10-24

2шт.

15

281-6456

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/8"

self-tapping, hex washer head, No. 10 NF x 3/4 inch

1шт.

16

225290C1

DUST CAP

COVER plug

1шт.

Выбрано товаров: 16
