Запчасти Case IH 1688 (4-30) - WARNING LAMP FRONT AND REAR, STOP AND TAIL LAMP, DOME LAMP (06) - ELECTRICAL

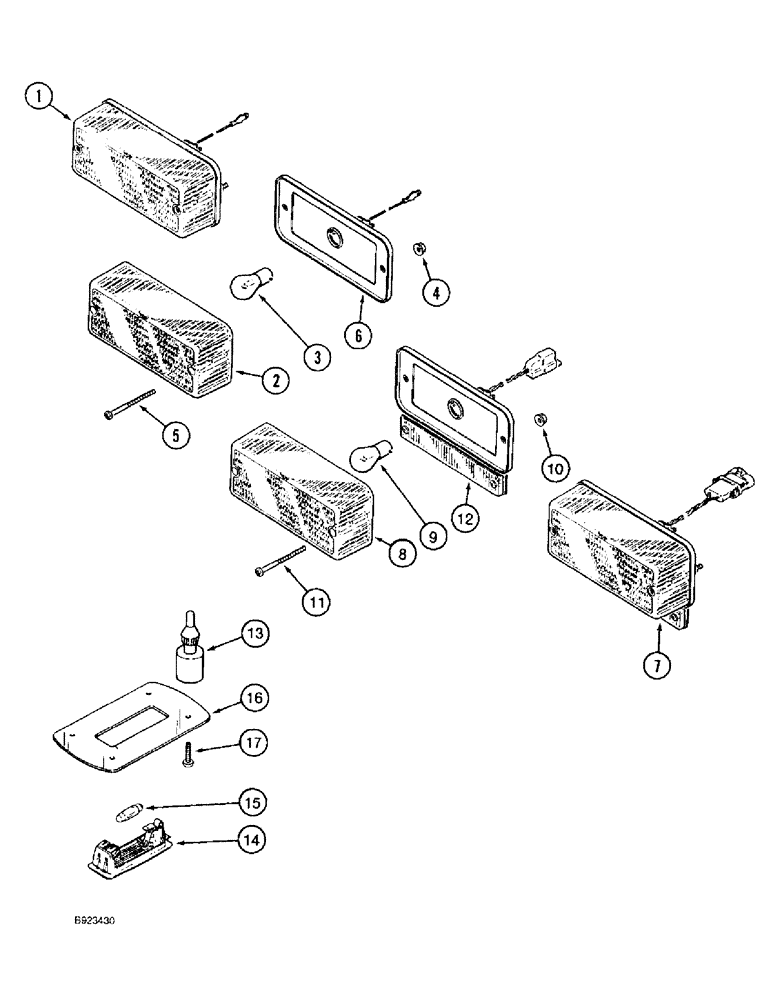

Схема запчастей Case IH 1688 - (4-30) - WARNING LAMP FRONT AND REAR, STOP AND TAIL LAMP, DOME LAMP (06) - ELECTRICAL
11
13
10
17
14
9
4
5
15
12
6
1
7
2
8
3
16

Артикул

Название

Примечание

Количество

1

130882C91

LAMP

ASSEMBLY warning, front and rear, Includes: Ref. 2 - 6

4шт.

2

130883C1

LENS

amber, warning lamp front and rear

1шт.

3

A41264

BULB,#1156, 12V

Warning, front and rear

1шт.

4

231-51409

SERRATED NUT,Flg, USR, #10-24

Warning lamp front and rear

2шт.

5

261-54536

SELF-TAP SCREW,Cross Pan Hd, #10 x 2 1/4"

self-tapping, pan Phillips, No. 10 NC x 2-1/4 inch, warning lamp front and rear

2шт.

6

NSS

NOT SOLD SEPARAT

BACK PLATE lamp, warning, front and rear

1шт.

7

92260C1

LAMP,12V, 27W, Red

ASSEMBLY stop and tail, Includes: Ref. 8 - 12

2шт.

8

216045C1

LENS

red, stop and tail lamp

1шт.

9

T34857

BULB,C6, #1157, 12.8V

Stop and tail

1шт.

10

231-51409

SERRATED NUT,Flg, USR, #10-24

Stop and tail lamp

2шт.

11

261-54536

SELF-TAP SCREW,Cross Pan Hd, #10 x 2 1/4"

self-tapping, pan Phillips, No. 10 NC x 2-1/4 inch, stop and tail lamp

2шт.

12

NSS

NOT SOLD SEPARAT

PLATE back, lamp, stop and tail

1шт.

117995C1

PACKAGE

KIT fastener, dome lamp, package of 5, Includes: Ref. 13

1шт.

13

NSS

NOT SOLD SEPARAT

FASTENER dome lamp

4шт.

14

1983391C1

LAMP,12V, 10W

ASSEMBLY dome, Includes: Ref. 15

1шт.

15

1094378R1

BULB,J, 12V, 2W

Bulb, Dome Lamp

1шт.

16

1979628C1

LARGE PLATE

PLATE, LARGE Dome Lamp

1шт.

17

260-53424

SELF-TAP SCREW,Cross Pan Hd, #8 x 1 1/2"

self-tapping, pan Phillips, No. 8-18 x 1-1/2 inch, dome lamp

4шт.

Выбрано товаров: 18
