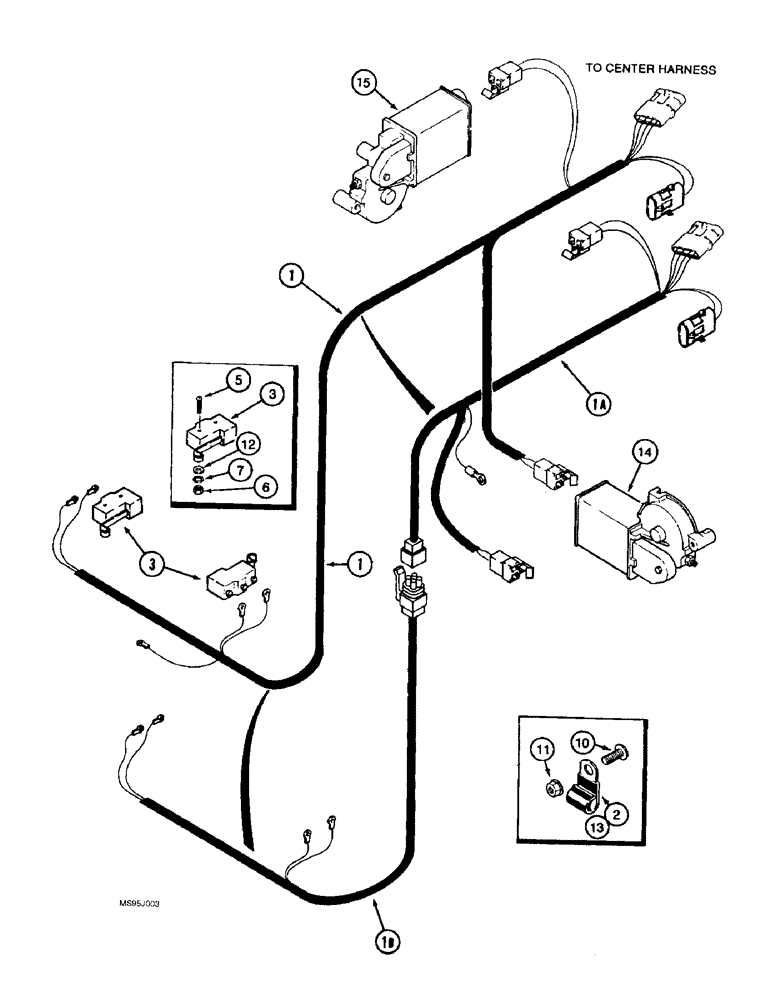

Запчасти Case IH 1688 (4-23A) - FAN AND ROTOR SPEED HARNESS, P.I.N. JJC0119985 AND AFTER (06) - ELECTRICAL

1

113982A2

HARNESS

fan and rotor speed, replaced by Refs. 1A and 1B

1шт.

1a

175949A1

HARNESS

fan and rotor speed, when ordering also order Ref. 1B, replaces Ref. 1

1шт.

1b

245240C1

WIRE HARNESS

rotor limit switch, when ordering also order Ref. 1A, replaces Ref. 1

1шт.

2

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLAMP P-type

1шт.

3

128298A1

IGNITION SWITCH

rotor limit

2шт.

5

470-10620

SCREW,Pan HD, #6 - 32 x 1-1/4"

4шт.

6

225-14106

NUT,#6-32

4шт.

7

138526

LOCK WASHER

internal tooth lock, special, No. 6

4шт.

10

116494C1

SCREW,Sl Serr Truss Hd, 3/8" - 16 x 1/2"

1шт.

11

231-5146

FLANGE NUT,3/8"-16

1шт.

12

495-31016

WASHER,#6

2шт.

13

363444R1

CLAMP,J, 9/16" Insul, 3/8" Bolt

retaining

1шт.

14

REF

INSTRUCTION

MOTOR electric, variable speed, parts list Figure 9C-14

1шт.

15

REF

INSTRUCTION

MOTOR electric, rotor speed, parts list Figure 9B-6

1шт.
