Запчасти Case IH 1688 (4-22) - ROTOR LIMIT SWITCH HARNESS, FAN AND ROTOR SPEED HARNESS, PRIOR TO P.I.N. JJC0119985 (06) - ELECTRICAL

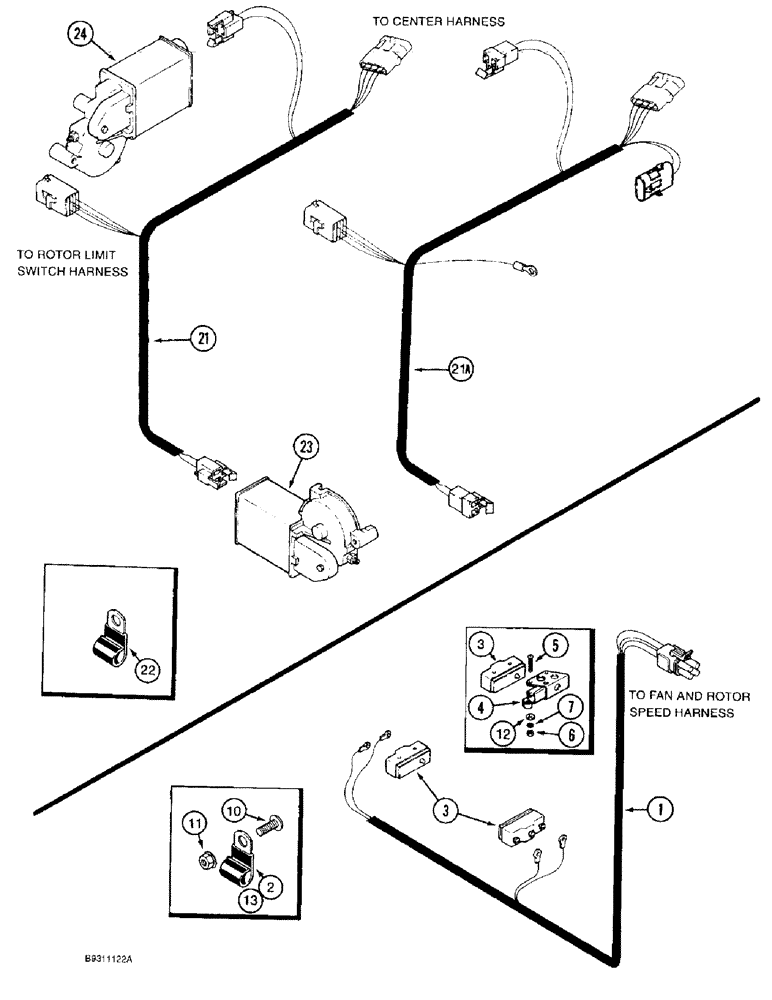

Схема запчастей Case IH 1688 - (4-22) - ROTOR LIMIT SWITCH HARNESS, FAN AND ROTOR SPEED HARNESS, PRIOR TO P.I.N. JJC0119985 (06) - ELECTRICAL
21
13
4
2
11
3
3
1
22
24
5
21a
12
6
10
23
7

Артикул

Название

Примечание

Количество

1

245240C1

WIRE HARNESS

rotor limit switch

1шт.

2

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLAMP P-type, rotor limit switch harness

1шт.

3

186057C1

SWITCH

rotor limit harness

2шт.

4

186058C1

IGNITION SWITCH

ACTUATOR rotor limit harness

2шт.

5

470-10620

SCREW,Pan HD, #6 - 32 x 1-1/4"

Rotor limit switch harness

4шт.

6

225-14106

NUT,#6-32

Rotor limit switch harness

4шт.

7

138526

LOCK WASHER

internal tooth lock, special, No. 6, rotor limit switch harness

4шт.

10

116494C1

SCREW,Sl Serr Truss Hd, 3/8" - 16 x 1/2"

Rotor limit switch harness

1шт.

11

231-5146

FLANGE NUT,3/8"-16

Rotor limit switch harness

1шт.

12

495-31016

WASHER,#6

Rotor limit switch harness

2шт.

13

363444R1

CLAMP,J, 9/16" Insul, 3/8" Bolt

retaining, rotor limit switch harness

1шт.

21

1983397C1

HARNESS

fan and rotor speed

1шт.

21a

113982A1

HARNESS

fan and rotor speed

1шт.

22

363444R1

CLAMP,J, 9/16" Insul, 3/8" Bolt

retaining, fan and rotor speed harness

1шт.

23

REF

INSTRUCTION

MOTOR electric, variable speed, parts list Figure 9C-14, fan and rotor harness

1шт.

24

REF

INSTRUCTION

MOTOR electric, rotor speed, parts list Figure 9B-6, fan and harness

1шт.

Выбрано товаров: 16
