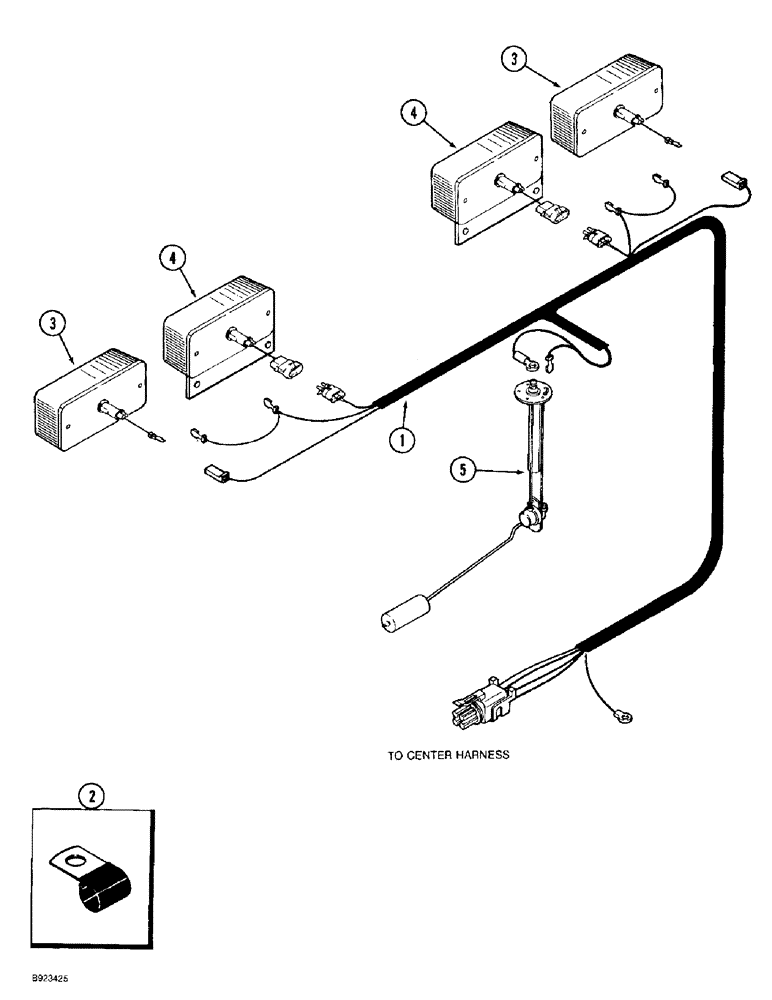

Запчасти Case IH 1688 (4-20) - MAIN REAR HARNESS (06) - ELECTRICAL

1

1994847C1

HARNESS

rear lamps and fuel sender

1шт.

2

363444R1

CLAMP,J, 9/16" Insul, 3/8" Bolt

retaining, harness

10шт.

3

130882C91

LAMP

ASSEMBLY warning, rear, parts list Figure 4-30

2шт.

4

92260C1

LAMP,12V, 27W, Red

ASSEMBLY stop and tail, parts list Figure 4-30

2шт.

5

198024C1

FUEL GAUGE

SENSOR fuel level, parts list Figure 3-12, Ref. 6

1шт.
