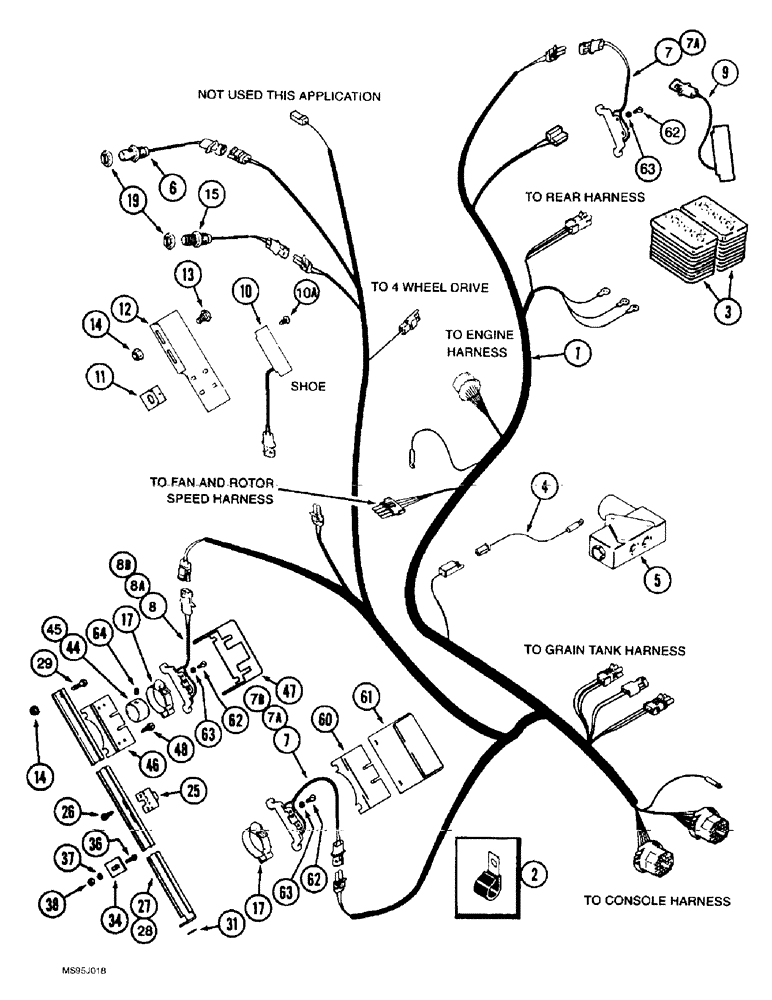

Запчасти Case IH 1688 (4-14) - CENTER HARNESS (06) - ELECTRICAL

1

1994834C2

HARNESS

center

1шт.

2

299269C91

CLAMP

retaining, harness

2шт.

2

92070C1

CLAMP,1 1/4", Insul, 7/16" Bolt

P-type, 1-1/4 inch ID

6шт.

2

363444R1

CLAMP,J, 9/16" Insul, 3/8" Bolt

retaining, harness

6шт.

2

362666R1

CLIP

CLAMP retaining, harness

6шт.

3

BMF31G

BATTERY, DRY

BATTERY DRY 12V, Electrical supply

1шт.

4

187736C1

CABLE

separator clutch valve, if used

1шт.

5

187505C91

VALVE

ASSEMBLY separator clutch, parts list Figure 8-72

1шт.

6

245193C2

SENSOR

transducer, straw spreader

1шт.

7

245365C1

TRANSMITTER

SENSOR monitor control, rotary air screen and beater, used, Serial Range: -JJC0119030

2шт.

7a

1345485C1

TRANSMITTER

SENSOR rotary air screen and beater, replaced by 1345485C2, Start Serial: JJC0119030

2шт.

7b

1345485C2

TRANSMITTER

SENSOR rotary air screen and beater, replaces 1345485C1

2шт.

8

245365C1

TRANSMITTER

SENSOR monitor control, tailings auger, used, Serial Range: -JJC0119030

1шт.

8a

1345481C1

TRANSMITTER

SENSOR monitor control, tailings auger, used, replaced by 1345481C2, Start Serial: JJC0119030

1шт.

8b

1345481C2

TRANSMITTER

SENSOR monitor control, tailings auger, replaces 1345481C1

1шт.

9

245410C1

TRANSMITTER

SENSOR straw chopper

1шт.

10

245364C1

SWITCH

monitor control, shoe speed

1шт.

10a

840-1410

SCREW,Pan, M4 x 10mm, Cl 4.8

2шт.

11

187996C1

MAGNET

shoe sensor

1шт.

12

187998C2

ANGLE

SUPPORT shoe sensor

1шт.

13

411-58

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT carriage, 5/16 NC x 1/2 inch, grade 2

2шт.

14

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

15

1252494C2

TRANSMITTER

SENSOR engine RPM, if used

1шт.

17

178800C1

CLAMP

sensor, tailings auger and beater

2шт.

19

425-1512

JAM NUT,Jam, 3/4"-10, G5

hex, jam, 3/4 inch NF

2шт.

25

196987C1

MAGNET

sensor, rotary air screen, if used

1шт.

26

263-5448

SELF-TAP SCREW,Pan HD, #8 - 18 x 1/2"

self-tapping, pan slotted, No. 8-18 x 1/2 inch

2шт.

27

1329865C1

CHANNEL

transmitter mounting, rotary air screen, Serial Range: -JJC0119030

1шт.

28

116892A1

CHANNEL

sensor mounting, used, Start Serial: JJC0119030

1шт.

29

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 inch

3шт.

31

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16"), If used

1шт.

34

1301560C1

SUPPORT

BRACKET mounting, if used

1шт.

36

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

If used

1шт.

37

492-11031

LOCK WASHER,5/16"

If used

1шт.

38

425-105

NUT,5/16"-18, G5

If Used

1шт.

44

1301135C1

COLLAR

tailings elevator shaft, Serial Range: -JJC0119030

1шт.

45

557115R11

COLLAR

locking, Start Serial: JJC0119030

1шт.

46

183869C3

SUPPORT

BRACKET sensor, if used

1шт.

47

181208C3

SUPPORT

COVER sensor, if used

1шт.

48

280-1478

SELF-TAP SCREW,HWH, 1/4-14 x 1/2"

self-tapping, hex washer head, 1/4-14 x 1/2 inch, if used

3шт.

60

187629C1

SUPPORT

BRACKET sensor, if used

1шт.

61

187630C1

SUPPORT

COVER sensor, if used

1шт.

62

470-1086

SCREW,Pan HD, #8 - 32 x 3/8"

machine, pan head slotted, No. 8 NC x 3/8 inch

4шт.

63

492-11008

LOCK WASHER,#8

4шт.

64

280-1478

SELF-TAP SCREW,HWH, 1/4-14 x 1/2"

self-tapping, hex washer head, 1/4-14 x 1/2 inch, if used

1шт.
