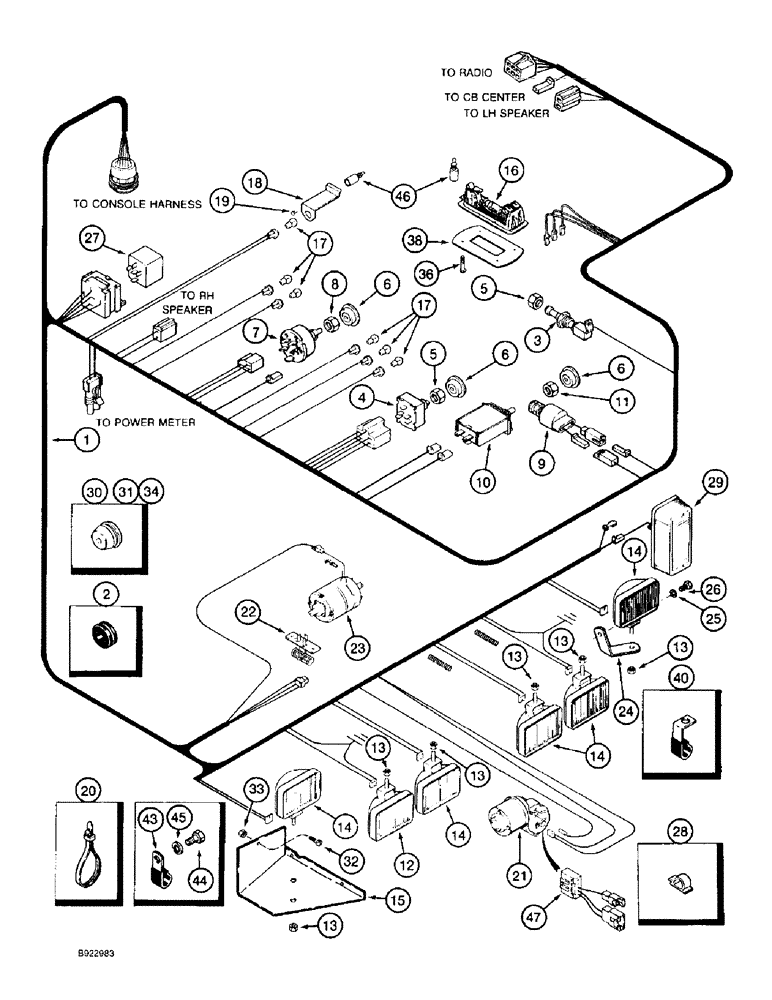

Запчасти Case IH 1688 (4-12) - CAB ROOF HARNESS (06) - ELECTRICAL

1

1994715C1

HARNESS

cab roof

1шт.

2

3063674R1

GROMMET

blower harness

1шт.

3

245175C1

SWITCH

door dome lamp control

1шт.

4

168822C2

SWITCH

blower

1шт.

5

109311H

JAM NUT

hex, jam, 7/16 inch NF

1шт.

6

111282C1

KNOB

KNOB control, blower

3шт.

7

245734C1

SWITCH

wiper control

1шт.

8

109311H

JAM NUT

hex, jam, 7/16 inch NF

1шт.

9

111267C4

SWITCH, A/C LOW PRES

air conditioner, low pressure

1шт.

9

111267C4GV

SWITCH, A/C LOW PRES

air conditioner, low pressure

1шт.

10

109268C2

SWITCH

cab thermostat

1шт.

11

109311H

JAM NUT

hex, jam, 7/16 inch NF

2шт.

12

245555C1

LAMP

40 x 7 Halogen

1шт.

13

325-148

JAM NUT,Jam, 1/2"-13, G5

hex, jam, 1/2 inch NC

6шт.

14

245897C91

LAMP, WORK

LIGHT, WORK LAMP 80 x 30 Halogen

5шт.

15

1283449C3

BRACKET

lamp mounting, includes shield, right hand

1шт.

16

1983391C1

LAMP,12V, 10W

ASSEMBLY dome, parts list Figure 4-30

1шт.

17

A14553

BULB

cab instrument panel and warning lamp, No. 57

4шт.

18

1281975C1

BRACKET

SUPPORT instrument panel bulb mounting

4шт.

19

260-5448

SELF-TAP SCREW,Cross Pan Hd, #8 x 1/2"

Phillips

4шт.

20

111619C1

STRAP

tie

6шт.

21

109740A1

WIPER MOTOR

MOTOR, WIPER ASSEMBLY includes mounting bracket, parts list Figure 4-54

1шт.

22

1255876C1

RESISTOR

blower motor

1шт.

23

190333A1

MOTOR, ELECTRIC,12V

blower, 12 volt, DC, PM, parts list Figure 9G-38 for assembly

1шт.

190333A1R

REMAN-ELECTRIC MOTOR,12V

1688,

1шт.

190333A1C

CORE-ELECTRIC MOTOR,12V

Return Number

1шт.

24

1281876C1

BRACKET

outer flood lamp mounting, left hand

1шт.

25

492-21050

LOCK WASHER,1/2"

1шт.

26

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

27

1983394C2

RELAY

electrical, 12 volt, air conditioner

1шт.

28

169850C2

CABLE CLIP

Retaining harness

7шт.

29

130882C91

LAMP

ASSEMBLY warning, parts list Figure 4-30

1шт.

30

198824C1

GROMMET,12.7mm ID x 41.1mm OD x 26.9mm Thk

rubber, 1/2 inch ID, lamp harness, right hand

1шт.

31

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

lamp harness, left hand, 5/8 inch ID

1шт.

32

436746

SCREW

machine, special, No. 10 NF x 1/4 inch

2шт.

33

225-13110

NUT,#10-24

1шт.

34

198828C1

GROMMET,25.4mm ID x 41.1mm OD x 26.9mm Thk

deck harness, right hand, 1 inch ID

1шт.

36

260-53424

SELF-TAP SCREW,Cross Pan Hd, #8 x 1 1/2"

self-tapping, pan Phillips, No. 8-18 x 1-1/2 inch

4шт.

38

1979628C1

LARGE PLATE

PLATE, LARGE dome lamp

1шт.

40

370383R1

CLIP

CLAMP warning lamp

4шт.

43

371036R1

CLIP

CLAMP retaining, rubber covered

1шт.

44

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

hex, 5/16 NC x 1/2 inch

1шт.

45

492-11031

LOCK WASHER,5/16"

1шт.

46

117995C1

PACKAGE

KIT fastener, trim, includes 5 fasteners

1шт.

47

115400A1

HARNESS

ADAPTER wiper motor

1шт.
