Запчасти Case IH 1688 (4-04) - STEERING COLUMN HARNESS (06) - ELECTRICAL

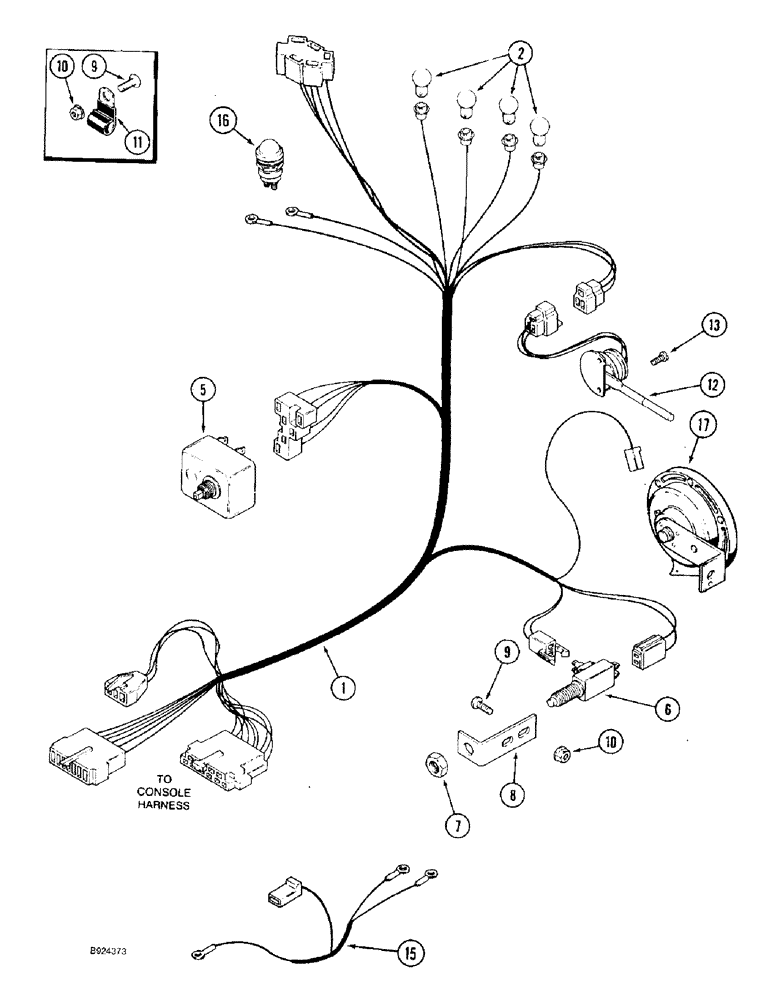

Схема запчастей Case IH 1688 - (4-04) - STEERING COLUMN HARNESS (06) - ELECTRICAL
8
11
16
13
5
12
17
10
15
9
7
1
6
2
10
9

Артикул

Название

Примечание

Количество

1

91822C3

HARNESS

steering column, with dimmer switch connector

1шт.

1a

1345414C1

HARNESS

steering column, without dimmer switch connector, not shown

1шт.

2

26069R1

BULB

lamp, No.192

4шт.

5

1987422C1

SWITCH

turn signal

1шт.

6

131107C1

SWITCH

neutral start

1шт.

7

425-158

JAM NUT,Jam, 1/2"-20, G5

2шт.

8

1327674C1

BRACKET

ANGLE mounting

1шт.

9

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 inch

4шт.

10

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

6шт.

11

363444R1

CLAMP,J, 9/16" Insul, 3/8" Bolt

retaining

6шт.

12

245635C1

SWITCH

unloader tube control

1шт.

13

340-10812

SCREW,Cross Pan Hd, #8-32 x 3/4"

machine, pan Phillips, No. 8 NC x 3/4 inch

3шт.

15

1964933C1

HARNESS

horn

1шт.

16

453453C1

SWITCH

push button

1шт.

17

166166R1

HORN

12 volt, low note

1шт.

Выбрано товаров: 15
