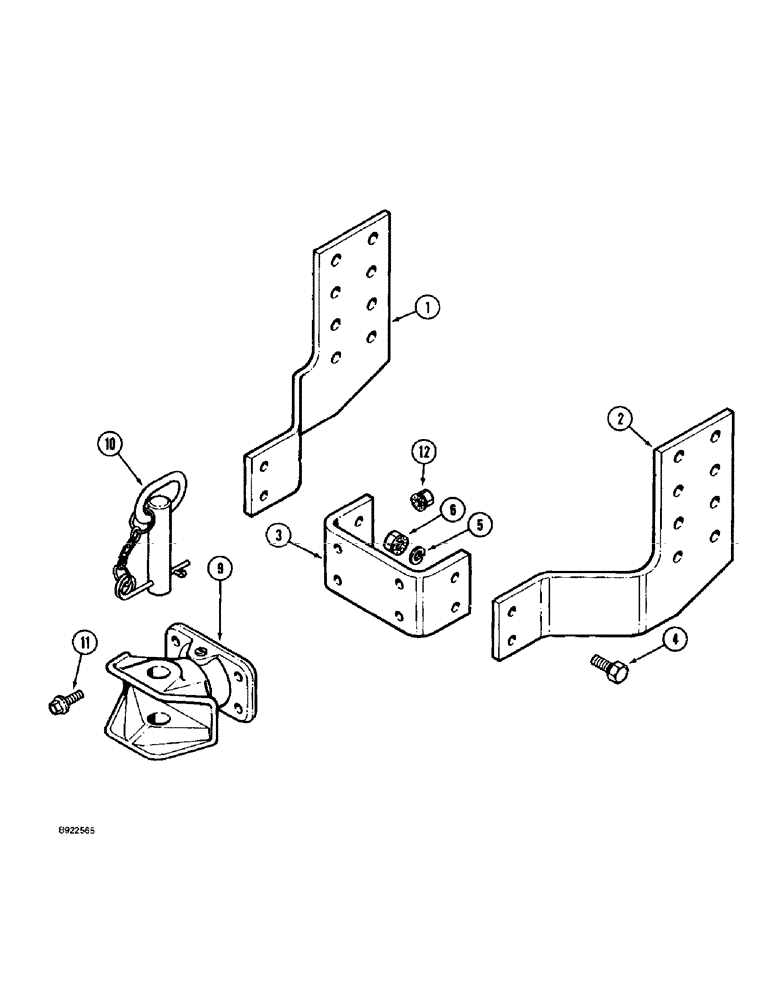

Запчасти Case IH 1688 (5-48) - TRAILER HITCH (04) - STEERING

1

1311092C3

SUPPORT

trailer hitch, left hand

1шт.

1

1979841C1

SUPPORT

trailer hitch, left hand, used with power guide axle, not shown

1шт.

2

1311093C3

SUPPORT

trailer hitch, right hand

1шт.

2

1979842C1

SUPPORT

trailer hitch, right hand, used with power guide axle, not shown

1шт.

3

1311094C1

BRACKET

CHANNEL combine tow

1шт.

4

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

hex, 5/8 NC x 1-3/4 inch

4шт.

5

492-11062

BEARING WASHER,5/8"

4шт.

6

425-1010

NUT,5/8"-11, G5

4шт.

9

1311089C91

HOOK

ASSEMBLY hitch, Includes: Ref. 10

1шт.

10

1311090C1

PIN

hook, hitch

1шт.

11

409-7832

BOLT,Hex Flg, 1/2" - 13 x 2", Spcl

BOLT hex serrated flange, 1/2 NC x 2 inch

4шт.

12

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.
