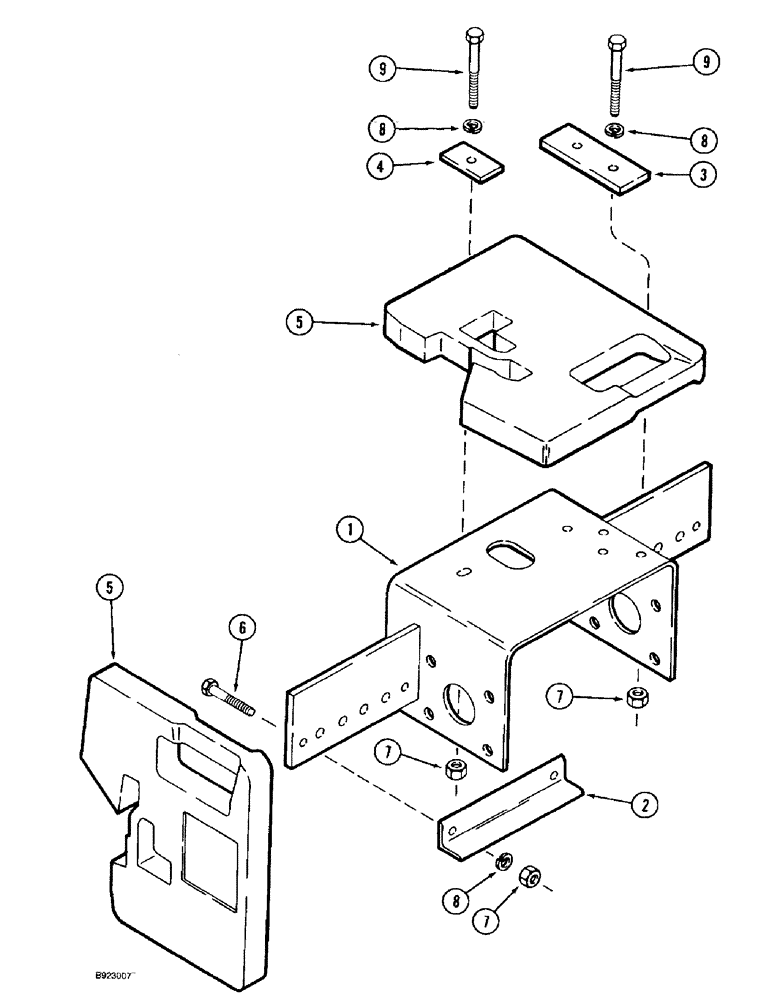

Запчасти Case IH 1688 (5-46) - STEERING AXLE WEIGHTS (04) - STEERING

1

185365C2

SUPPORT

weight, replaces 185365C1

1шт.

Do not use weights and brackets on machines equipped with power guide axle.

1шт.

2

1308872C1

BRACKET

weight retaining

2шт.

3

178434C1

CLAMP

weight

1шт.

4

561838R1

PLATE

CLAMP weight

1шт.

5

NSS

NOT SOLD SEPARAT

WEIGHT axle, 100 pound, machinery item

1шт.

6

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

hex, 1/2 NC x 2-1/2 inch

4шт.

7

425-108

NUT,1/2" - 13, Gr 5

6шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

7шт.

9

413-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

hex, 1/2 NC x 5-1/2 inch

3шт.
