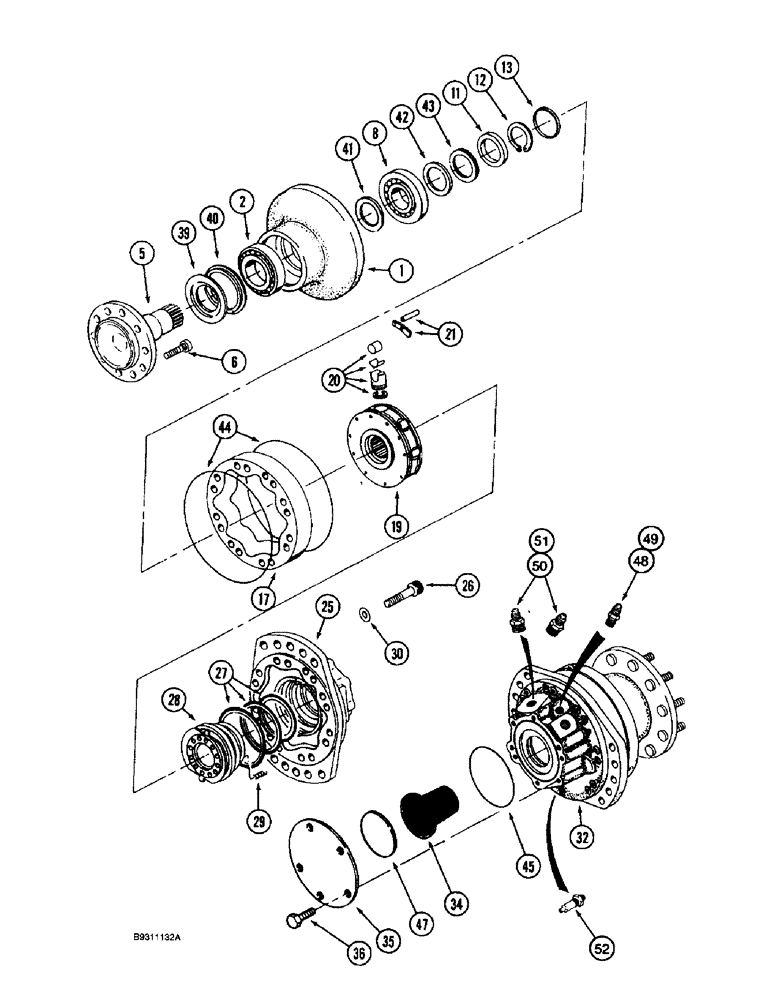

Запчасти Case IH 1688 (5-44) - WHEEL DRIVE MOTOR, POWER GUIDE AXLE, RICE COMBINE (04) - STEERING

1979869C1

MOTOR, HYDRAULIC

ASSEMBLY drive, wheel, Includes: Ref. 1 - 52, Serial Range: -JJC0118605

2шт.

1979869C1 and 121437A1 motors are identical except for the ports in the housing. 1979869C1 uses metric threads and 121437A1 uses English threads. 121437A1 motor includes adapters, Refs. 46-50 in this Figure. Adapters for 1979869C1 are located on Figures 5-23 and 5-31.

1шт.

121437A1

MOTOR, HYDRAULIC

ASSEMBLY drive, wheel , Includes: Ref. 1 - 52, Start Serial: JJC0118605

2шт.

1979869C1 and 121437A1 motors are identical except for the ports in the housing. 1979869C1 uses metric threads and 121437A1 uses English threads. 121437A1 motor includes adapters, Refs. 46-50 in this Figure. Adapters for 1979869C1 are located on Figures 5-23 and 5-31.

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING support, bearing

1шт.

2

NSS

NOT SOLD SEPARAT

BEARING outer, housing

1шт.

5

NSS

NOT SOLD SEPARAT

SHAFT hub, wheel

1шт.

6

1970151C1

STUD

mounting retaining, shaft

8шт.

8

NSS

NOT SOLD SEPARAT

BEARING inner, housing

1шт.

11

NSS

NOT SOLD SEPARAT

SPACER retaining, ring

1шт.

12

NSS

NOT SOLD SEPARAT

RING snap

1шт.

13

NSS

NOT SOLD SEPARAT

RETAINER snap ring

1шт.

17

NSS

NOT SOLD SEPARAT

RING cam

1шт.

19

NSS

NOT SOLD SEPARAT

BLOCK ASSEMBLY cylinder

1шт.

20

NSS

NOT SOLD SEPARAT

KIT piston block

10шт.

21

NSS

NOT SOLD SEPARAT

KIT retainer, piston

1шт.

25

NSS

NOT SOLD SEPARAT

COVER distribution

16шт.

26

426-1432

BOLT,Hex, 7/8" - 9 x 2", Gr 8

BOLT hex, 7/8 NC x 2 inch, grade 8, retainer, cover

1шт.

27

1986737C1

SEAL KIT

KIT block

1шт.

28

NSS

NOT SOLD SEPARAT

BLOCK valve

1шт.

29

NSS

NOT SOLD SEPARAT

SPRING pressure, valve block

8шт.

30

496-11094

WASHER,0.94" ID x 1.75" OD x 0.13" Thk

flat, 15/16 x 1-3/4 x 1/8 inch, hardened

16шт.

32

NSS

NOT SOLD SEPARAT

HOUSING motor, wheel

1шт.

34

1970394C1

CASE

ACCUMULATOR housing, motor

1шт.

35

1347321C1

COVER

PLATE

1шт.

36

NSS

NOT SOLD SEPARAT

BOLT retaining, cover plate

8шт.

1986738C1

SEAL KIT

KIT wheel motor, Includes: Ref. 39 - 45

1шт.

39

NSS

NOT SOLD SEPARAT

DEFLECTOR shaft

1шт.

40

NSS

NOT SOLD SEPARAT

SEAL grease

1шт.

41

NSS

NOT SOLD SEPARAT

SEAL inner, shaft

1шт.

42

NSS

NOT SOLD SEPARAT

WASHER shim, support

1шт.

43

NSS

NOT SOLD SEPARAT

KIT shim, bearing

1шт.

44

NSS

NOT SOLD SEPARAT

O-RING cam

2шт.

45

238-5162

O-RING,0.103" Thk x 5.737" ID, -162, Cl 5, 75 Duro

1шт.

47

1347320C1

SPACER

wheel

1шт.

48

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER straight, 3/4-16 inch flare x O-ring boss, included with 121437A1 motor only, Incl. Ref 49, Start Serial: JJC0118605

1шт.

49

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

50

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Adapter, Straight, O-Ring boss, Included with 121437A1 motor only, Incl. Ref. 51, Start Serial: JJC0118605

2шт.

51

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

52

121434A1

ADAPTER

flush port, English thread, included with 121437A1 motor only, Start Serial: JJC0118605

1шт.
