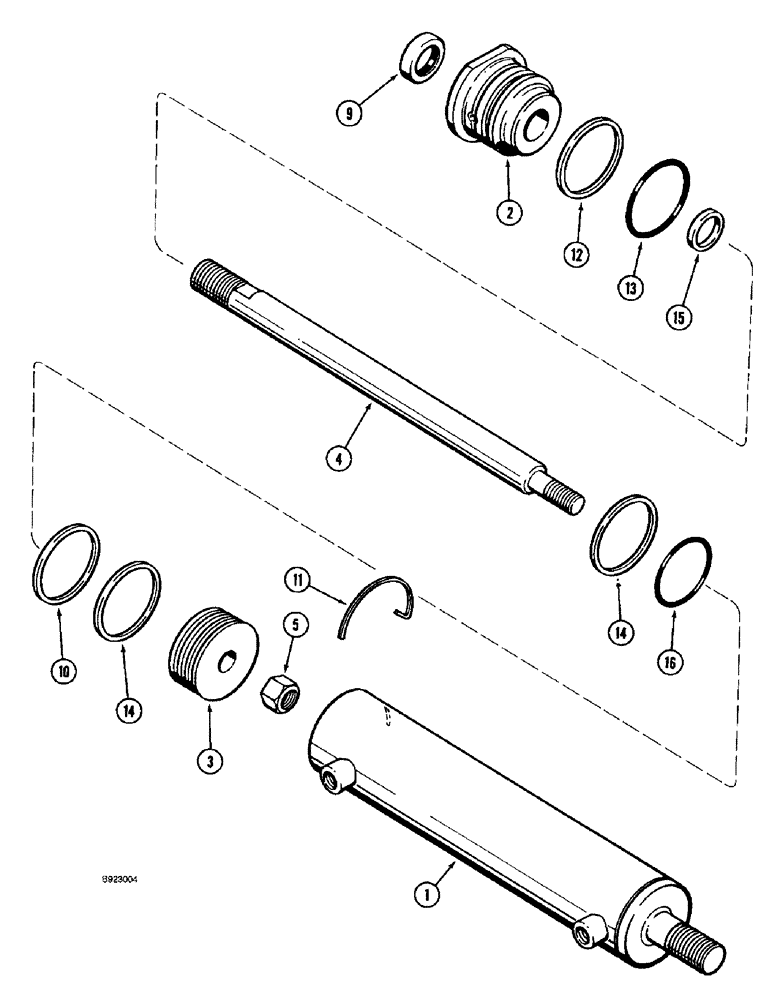

Запчасти Case IH 1688 (5-36) - STEERING CYLINDER ASSEMBLY (04) - STEERING

1958024C1

STEERING CYLINDER

ASSEMBLY 2-1/2 (64) ID x 9 inch (229 mm) stroke, steering, Includes: Ref. 1 - 16

1шт.

87337226R

REMAN-HYD CYLINDER

1688 ( 1/93 - 12/94 ) Reman For New P/N 1958024C1

1шт.

87337226C

CORE-HYD CYLINDER

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

BODY cylinder, order 1958024C1 assembly

1шт.

2

1958020C1

GLAND

GLAND front

1шт.

3

1958021C1

PISTON

cylinder

1шт.

4

127920C2

PISTON ROD

1шт.

5

9411658

LOCK NUT,5/8"-11, GC

hex, self-locking, 5/8 inch NF, grade 8

1шт.

1971520C1

SEAL KIT

seal, cylinder, Includes: Ref. 9 - 16

1шт.

9

NSS

NOT SOLD SEPARAT

WIPER piston rod

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL rod, piston

1шт.

11

NSS

NOT SOLD SEPARAT

WIRE retaining

1шт.

12

NSS

NOT SOLD SEPARAT

RING backup, O-ring

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING head, 2-1/8 x 2-1/2 inch, class 5

1шт.

14

NSS

NOT SOLD SEPARAT

RING piston

2шт.

15

NSS

NOT SOLD SEPARAT

RING piston, teflon

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING piston, 2-1/16 x 2-1/4 inch

1шт.
