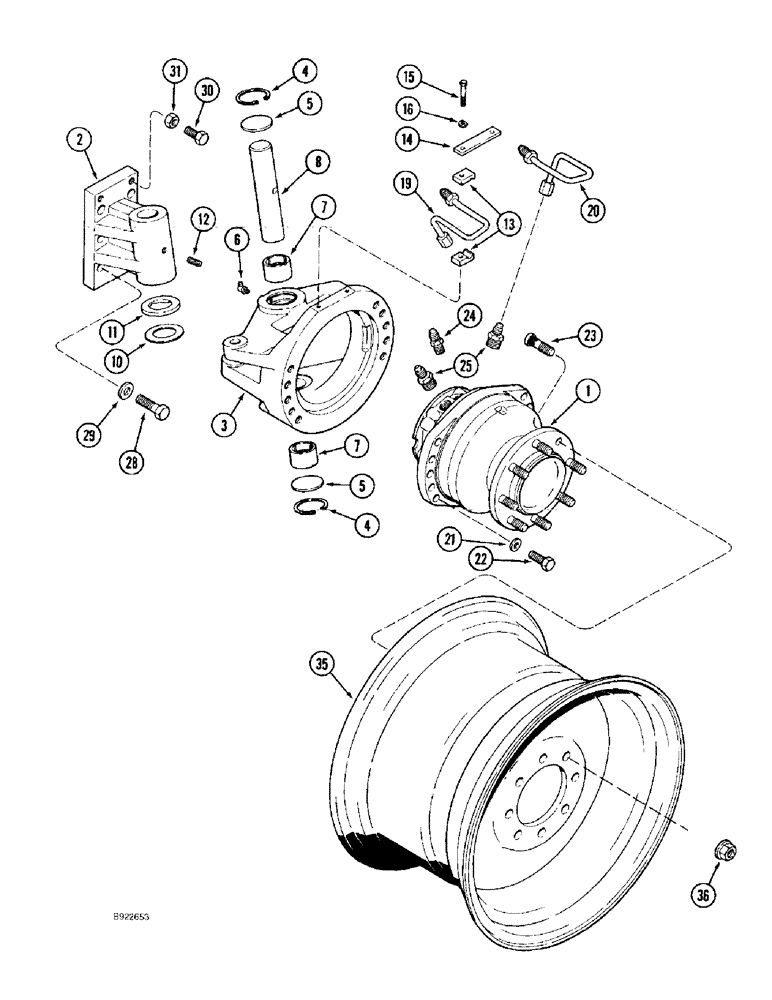

Запчасти Case IH 1688 (5-30) - WHEEL MOTOR AND KING PIN, POWER GUIDE AXLE, AXLE DRIVE WHEEL (04) - STEERING
№
Артикул
Название
Примечание
Количество
1
1970137C2
MOTOR, HYDRAULIC
ASSEMBLY drive, wheel, corn and grain, parts list Figure 5-42, power guide axle, Serial Range: -JJC0119430
2шт.
87300716R
REMAN-HYDROSTAT MOTO
1688 - CASE IH AXIAL-FLOW COMBINE - 1/93-12/94, Reman For New P/N's 1970137C2, 121436A1 & 87300716
2шт.
87300716C
CORE-HYDROSTAT MOTOR
Return Number
1шт.
1
121436A1
MOTOR, HYDRAULIC
ASSEMBLY drive, wheel, corn and grain, parts list Figure 5-42, power guide axle, Start Serial: JJC0119430
2шт.
1a
1979869C1
MOTOR, HYDRAULIC
ASSEMBLY drive, wheel, rice, parts list Figure 5-44, not shown, power guide axle, Serial Range: -JJC0118605
2шт.
1a
121437A1
MOTOR, HYDRAULIC
ASSEMBLY drive, wheel, rice, parts list Figure 5-44, not shown, power guide axle, Start Serial: JJC0118605
2шт.
2
1970138C1
HOUSING
king pin, power guide axle
2шт.
3
1970136C1
HOUSING
CARRIER wheel motor, right hand, corn and grain, power guide axle
1шт.
3
1347195C1
FRAME
CARRIER wheel motor, right hand, rice, power guide axle
1шт.
3
1970354C1
FRAME
CARRIER Wheel Motor, LH, Corn and grain, Power guide axle
1шт.
3
1347196C1
FRAME
CARRIER - Wheel Motor, LH, Rice, Not shown, Power guide axle
1шт.
5
41-3040
PLUG,Exp, 2 1/2"
Power Guide Axle
4шт.
6
219-57
LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF
FITTING grease, 90 degree, 1/4-28 taper x 3/4 inch, power guide axle
4шт.
7
1970142C1
BUSHING
pivot, bronze, power guide axle
4шт.
8
1970143C1
PIN,47.63mm OD x 231.78mm L
king, power guide axle
2шт.
10
1970381C1
THRUST WASHER
thrust, steel, power guide axle
2шт.
11
1970382C1
THRUST WASHER
thrust, bronze, power guide axle
2шт.
12
83-15020
SET SCREW,Hex Soc, 1/2"-13 x 1 1/4"
set, hex socket headless, 1/2 NC x 1-1/4 inch, cup point, power guide axle
2шт.
13
1970148C1
CLAMP
hydraulic, tube, power guide axle
8шт.
14
1970150C1
PLATE
PLATE clamp, power guide axle
2шт.
15
326-532
BOLT,Hex, 5/16" - 18 x 2", Gr 8
Power guide axle
4шт.
19
1347179C1
TUBE
pressure, right hand rear, left hand front, rice, power guide axle
2шт.
19
1970146C1
HYD TUBE
TUBE pressure, right hand rear, left hand front, corn and grain, power guide axle
2шт.
20
1970147C1
HYD TUBE
TUBE pressure, left hand rear, right hand front, corn and grain, power guide axle
2шт.
20
1347180C1
TUBE
pressure, left-hand rear, right-hand front, rice, power guide axle
2шт.
21
496-21066
WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk
Hardened, Corn and grain, Power guide axle
20шт.
21
496-11094
WASHER,0.94" ID x 1.75" OD x 0.13" Thk
flat, 15/16 x 1-3/4 x 1/8 inch, hardened, rice, power guide axle
16шт.
22
426-1024
BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8
Corn and grain, Power guide axle
20шт.
22
426-1432
BOLT,Hex, 7/8" - 9 x 2", Gr 8
BOLT hex, 7/8 NC x 2 inch, grade 8, rice, power guide axle
16шт.
23
1970151C1
STUD
mounting, wheel, included with Ref. 1 motor, power guide axle
16-20шт.
24
1970395C1
FITTING
ADAPTER straight, special, metric thread, purchase separately, used with 1970137C2 or 1979869C1 motors, power guide axle
2шт.
See Figures 5-42 or 5-44 for fittings used with 121436A1 or 121437A1 motors
1шт.
25
1970396C1
FITTING
ADAPTER straight, special, metric thread, purchase separately, used with 1970137C2 or 1979869C1 motors, power guide axle
4шт.
See Figures 5-42 or 5-44 for fittings used with 121436A1 or 121437A1 motors
1шт.
28
326-1236
BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 8
Power guide axle
12шт.
30
326-1028
BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8
Power guide axle
4шт.
31
329-1410
JAM NUT,Jam, 5/8"-11, G8
Power guide axle
4шт.
AXLE DRIVE WHEEL
1шт.
35
1970153C1
RIM
WHEEL drive, steering, for 16.9 x 26 or 18.4 x 26 inch tires, eight mounting holes, used with Ref. 1 motors, axle
2шт.
35a
1979866C1
WHEEL
drive, steering, for 18.4 x 26 inch tires, ten mounting holes, used with Ref. 1A motors, not shown, axle
2шт.
36
905654R1
NUT
hex flange, axle drive wheel
1шт.
Выбрано товаров: 44
