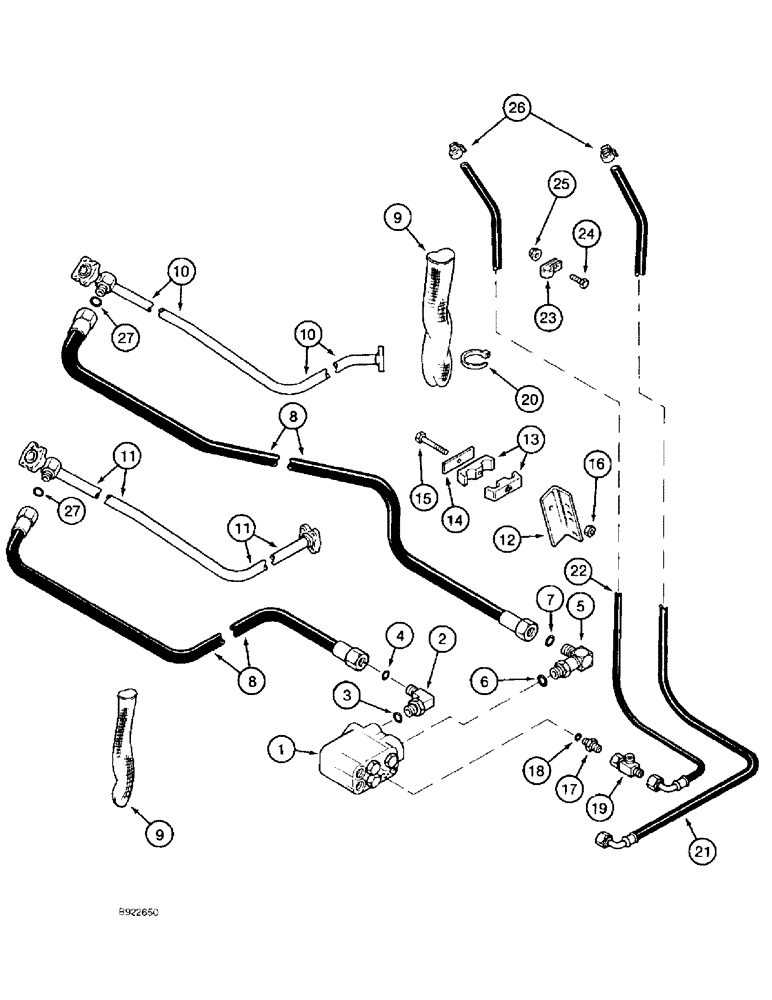

Запчасти Case IH 1688 (5-26) - SELECTOR VALVE HYDRAULIC SYSTEM, POWER GUIDE AXLE (04) - STEERING

1

1978000C1

VALVE

ASSEMBLY selector, corn and grain, parts list Figure 5-38

1шт.

1

1347194C1

VALVE

ASSEMBLY selector, rice, parts list Figure 5-40

1шт.

2

201-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

90 degree, 1-3/16-12 face seal x 1-1/6-12 inch adj O-ring boss, Includes: Ref. 3 and 4

1шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

4

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

5

201-365

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

Adj O-ring boss, Incl Ref. 6 and 7

1шт.

6

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

7

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

8

1979171C1

HOSE,19.05mm ID x 2165mm L

85-1/4 inch (2165 mm) long

2шт.

9

1970108C1

PROTECTIVE COVER

SLEEVE nylon, 2-3/8 (60) ID x 48 inch (1219 mm) long

2шт.

10

1541756C2

HYD TUBE

TUBE forward pressure

1шт.

11

1541757C2

HYD TUBE,1" OD, 2045.6, 225.2 mm Length

TUBE reverse pressure

1шт.

12

1324467C2

ANGLE

BRACKET hose

1шт.

13

1324473C1

CLAMP

hose

2шт.

14

1324469C1

PLATE

clamp, hose

2шт.

15

326-552

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 8

2шт.

16

232-4115

LOCK NUT,5/16"-18, GC

2шт.

17

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

ADAPTER straight, 3/4-16 flare x 9/16-18 inch O-ring boss

1шт.

19

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

1шт.

20

702093C1

CABLE TIE

CABLE STRAP

5шт.

21

1979706C1

HOSE

144-3/32 inch (3660 mm) long

1шт.

22

1979706C1

HOSE

144-3/32 inch (3660 mm) long

1шт.

23

L50062

SHIN

CLAMP P-type, hose retaining

1шт.

24

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 inch

1шт.

25

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

26

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

Adjustable

2шт.

27

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

18

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
