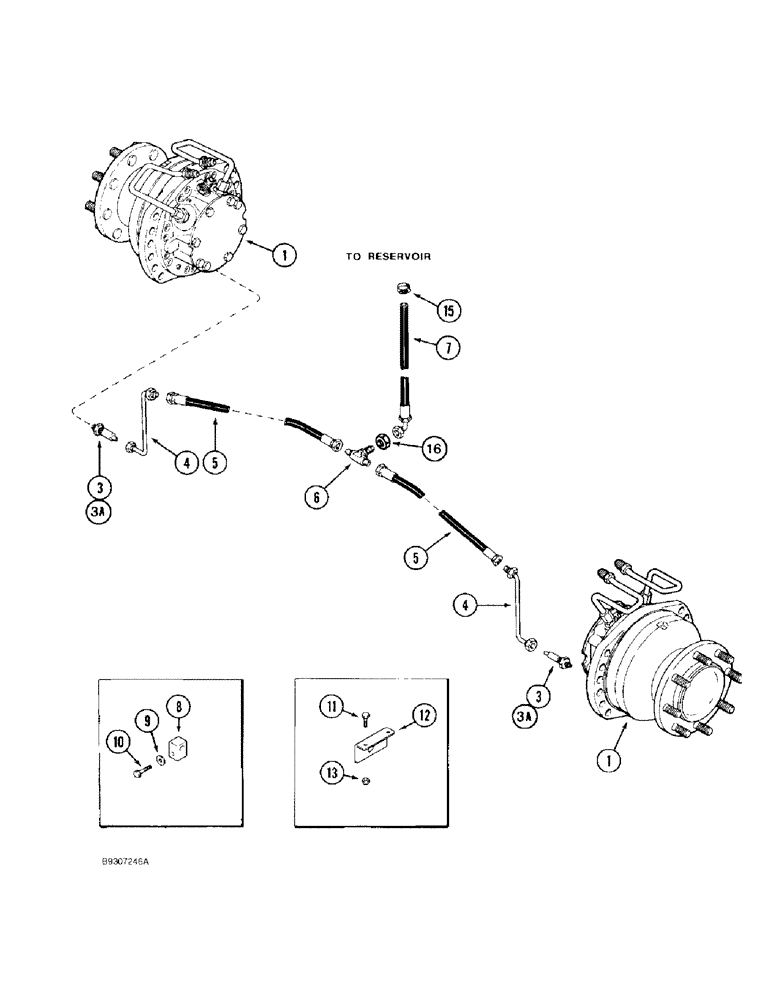

Запчасти Case IH 1688 (5-22) - WHEEL MOTOR FLUSH SYSTEM, POWER GUIDE AXLE (04) - STEERING

1

1970137C2

MOTOR, HYDRAULIC

ASSEMBLY drive, wheel, corn and grain, parts list Figure 5-42, Serial Range: -JJC0119430

2шт.

Motors do not include pressure tubes as shown in the illustration. See Figure 5-30 for pressure tubes.

1шт.

1

121436A1

MOTOR, HYDRAULIC

ASSEMBLY drive, wheel, corn and grain, parts list Figure 5-42, Start Serial: JJC0119430

2шт.

Motors do not include pressure tubes as shown in the illustration. See Figure 5-30 for pressure tubes.

1шт.

1

1979869C1

MOTOR, HYDRAULIC

ASSEMBLY drive, wheel, rice, parts list Figure 5-44, Serial Range: -JJC0118605

2шт.

Motors do not include pressure tubes as shown in the illustration. See Figure 5-30 for pressure tubes.

1шт.

1

121437A1

MOTOR, HYDRAULIC

ASSEMBLY drive, wheel, rice, parts list Figure 5-44, Start Serial: JJC0118605

2шт.

Motors do not include pressure tubes as shown in the illustration. See Figure 5-30 for pressure tubes.

1шт.

3

1346974C1

FITTING

ADAPTER flush port, metric thread, purchase separately, used with 1970137C2 or 1979869C1 motor

2шт.

3a

121434A1

ADAPTER

flush port, English thread, included with 121436A1 or 121437A1 motor

2шт.

4

1346971C1

TUBE

TUBE motor flush, corn and grain

2шт.

4

1347181C1

TUBE

motor flush, rice

2шт.

5

1346969C1

HYDRAULIC HOSE,9.52 mm ID x 1803.40 mm

Wheel motor flush

2шт.

6

218-805

TEE,3/4"-16, 37 Degree, Blkhd

3/4-16 inch bulkhead flare branch x flare x flare

1шт.

7

1979706C1

HOSE

144-3/32 inch (3660 mm) long

1шт.

8

1347182C1

CLAMP

CLAMP flush tube, corn and grain

2шт.

8

1347183C1

CLAMP

CLAMP flush tube, rice

2шт.

9

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32"), Corn and grain

2шт.

9

495-11066

WASHER,5/8", SAE

flat, 21/32 x 1-5/16 x 3/32 inch, rice

2шт.

10

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

Corn and grain

2шт.

10

614-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 8.8, Full Thd

(Rice)

2шт.

11

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

2шт.

12

1347068C1

SUPPORT

BRACKET flush tee

1шт.

13

232-4116

NUT,3/8"-16, GC

2шт.

15

214-1404

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

Adj

1шт.

16

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

1шт.
