Запчасти Case IH 1688 (5-14) - STEERING TIE ROD, 92 TO 120 INCH ADJUSTABLE AXLE (04) - STEERING

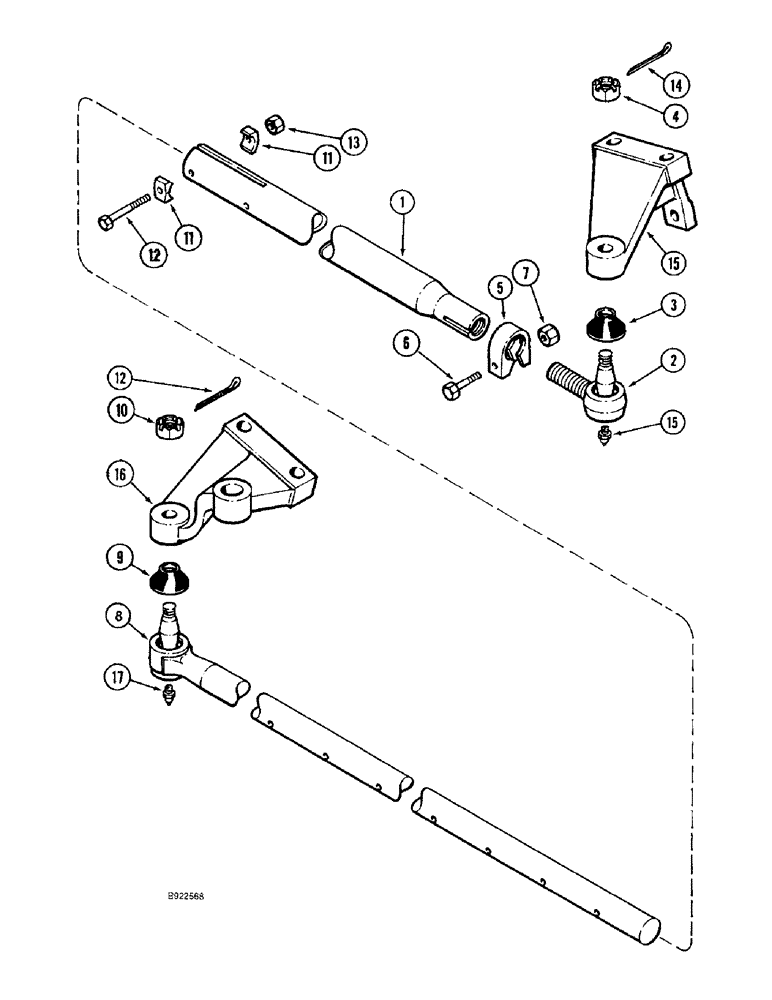

Схема запчастей Case IH 1688 - (5-14) - STEERING TIE ROD, 92 TO 120 INCH ADJUSTABLE AXLE (04) - STEERING
2
8
15
17
15
7
11
12
5
11
16
14
10
13
12
9
3
1
4
6

Артикул

Название

Примечание

Количество

186139C91

DRAG LINK

ROD ASSEMBLY tie, 92 - 120 inch adj axle, Includes: Ref. 1 - 13

1шт.

1

180801C1

TUBE

TUBE

1шт.

2

A43376

JOINT

END ASSEMBLY tie rod, right hand, Includes: Ref. 3 and 4

1шт.

3

A31186

BOOT

SEAL dust, tie rod end

1шт.

4

358901R1

SLOTTED NUT

hex slotted, 5/8 inch NF

1шт.

5

446308C91

CLAMP

ASSEMBLY tie rod, 1-3/8 inch, Includes: Refs. 6 and 7 hardware

1шт.

5

1319476C91

CLAMP

tie rod, 1-1/2 inch, Includes: Ref. 6 and 7

1шт.

6

413-730

BOLT,Hex, 7/16" - 14 x 1-7/8", Gr 5

BOLT hex, 7/16 NC x 1-7/8 inch

1шт.

7

231-4117

LOCK NUT,7/16"-14, GB

hex, self-locking, 7/16 inch NC

1шт.

8

180799C91

TIE-ROD

tie rod, left hand, Includes: Ref. 9 and 10

1шт.

9

A31186

BOOT

SEAL dust, tie rod end

1шт.

10

358901R1

SLOTTED NUT

hex slotted, 5/8 inch NF

1шт.

11

A43369

CLAMP

tie rod tube

4шт.

12

328-648

BOLT,Hex, 3/8" - 24 x 3", Gr 8

2шт.

14

432-816

COTTER PIN,1/8" x 1"

2шт.

15

186639C1

LEVER

ARM steering, right hand

1шт.

See Figure 5-12 for adjustable steering axle

1шт.

16

186641C1

LEVER

ARM steering, left hand

1шт.

See Figure 5-12 for adjustable steering axle

1шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

13

232-4636

LOCK NUT,3/8"-24, GC

2шт.

Выбрано товаров: 21
