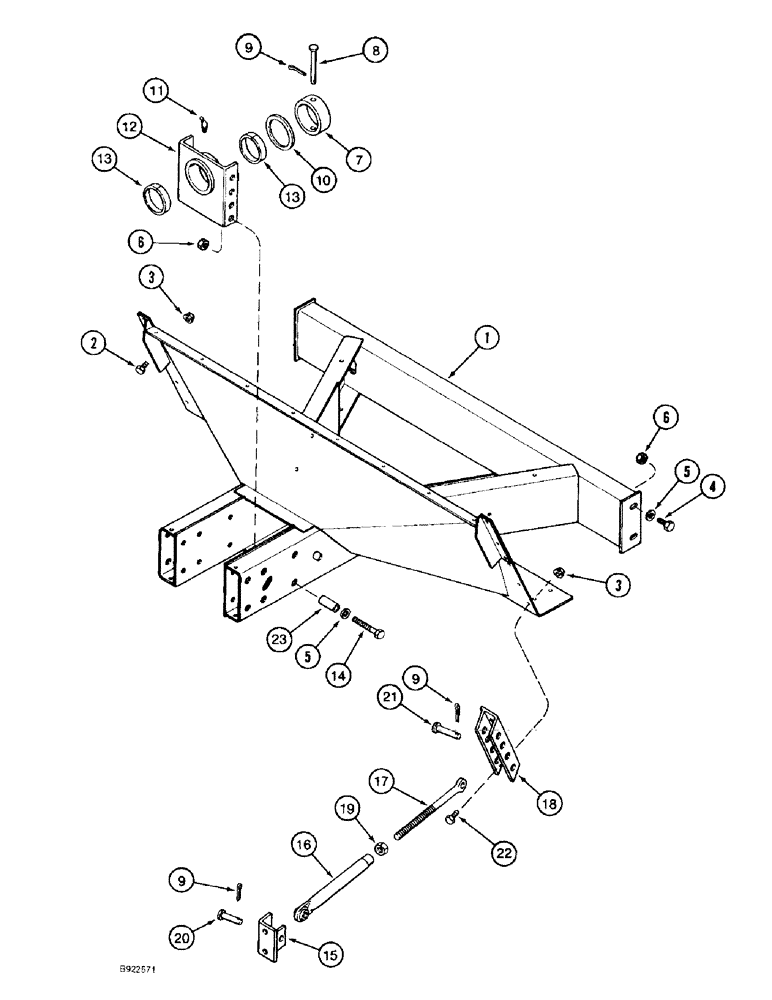

Запчасти Case IH 1688 (5-10) - STEERING AXLE SUPPORT, ADJUSTABLE AXLE (04) - STEERING

1

1322259C2

BOLSTER

SUPPORT steering axle

1шт.

2

426-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

12шт.

3

232-5138

FLANGE NUT,Flg, USR, 1/2"-13, G8

12шт.

4

426-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 8

BOLT hex, 3/4 NC x 1-1/2 inch, grade 8

4шт.

5

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

8шт.

6

232-51312

FLANGE NUT,Flg, USR, 3/4"-10

8шт.

7

182795C1

BUSHING,101.68mm ID x 127mm OD x 44.7mm L

axle pivot

1шт.

8

439-11288

HEADED PIN,19.05mm OD x 139.7mm L

headed, 3/4 x 5-1/2 inch, grade 2

1шт.

9

432-1620

COTTER PIN,1/4" x 1 1/4"

1шт.

10

168385C2

WASHER,102.6mm ID x 127mm OD x 3.3mm Thk

flat, special

2шт.

11

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

grease, 45 degree, 1/4-28 special taper x 13/16 inch

2шт.

12

182792C93

SUPPORT ASSY.

pivot, front, Includes: Ref. 13

1шт.

13

182794C1

BUSHING,101.77mm ID x mm OD x 19.1mm L

BUSHING axle pivot

2шт.

14

326-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 8

4шт.

15

183152C1

SUPPORT

rear

2шт.

16

181444C1

TIE-ROD,1" - 8

BODY adjusting rod, rear

2шт.

17

181442C3

EYEBOLT,1" - 8 x 381mm

BOLT, EYE ROD adjusting, front

2шт.

18

1541603C1

SUPPORT

BRACKET adjusting rod, front

2шт.

19

425-1016

NUT,1"-8, G5

Hex

2шт.

20

439-11456

HEADED PIN,22.23mm OD x 88.9mm L

headed, 7/8 x 3-1/2 inch, grade 2

2шт.

21

23729R1

HEADED PIN,22.23mm OD x 76.2mm L

2шт.

22

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

6шт.

23

177748C1

SPACER

support, 13/16 x 1-1/4 x 2-13/16 inch

4шт.
