Запчасти Case IH 1688 (5-08) - STEERING HAND PUMP ASSEMBLY (04) - STEERING

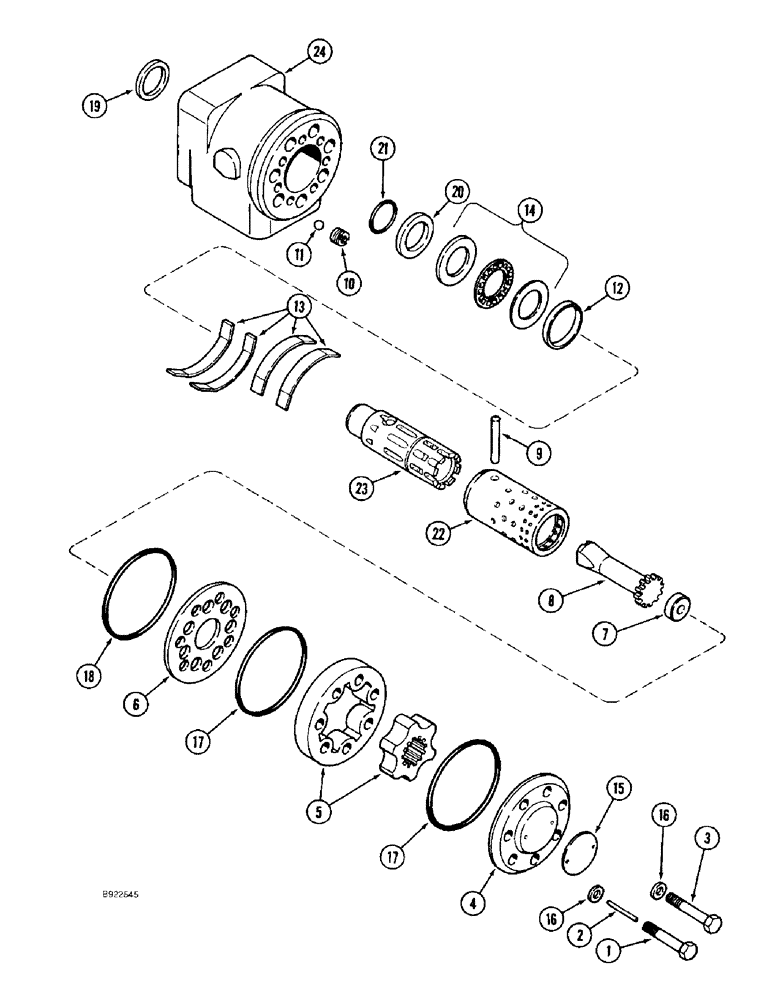

Схема запчастей Case IH 1688 - (5-08) - STEERING HAND PUMP ASSEMBLY (04) - STEERING
16
1
11
24
14
15
2
21
4
23
16
9
8
19
6
3
17
5
12
17
22
13
18
20
10
7

Артикул

Название

Примечание

Количество

1542691C1

PUMP

ASSEMBLY steering hand, Includes: Ref. 1 - 24

1шт.

1

NSS

NOT SOLD SEPARAT

BOLT hex, special, drilled

1шт.

2

3112271R1

PIN, ROLL

2 x 32 mm

1шт.

3

NSS

NOT SOLD SEPARAT

BOLT hex

6шт.

4

1272805C1

COVER

end

1шт.

5

NSS

NOT SOLD SEPARAT

GEAR pump, two piece

1шт.

6

1272803C1

PLATE

pump

1шт.

7

NSS

NOT SOLD SEPARAT

SPACER shaft

1шт.

8

1272797C1

SHAFT

drive, pump

1шт.

9

1272796C1

CROSS PIN

Dowel, special, 6 x 41 mm

1шт.

10

1272793C1

BUSHING

threaded, housing

1шт.

11

1272794C1

BALL

check, 8.5 mm diameter

1шт.

12

1272795C1

O-RING,39.6mm ID x 41mm OD x 4.5mm

sleeve, seal

1шт.

13

1272809C1

PACKAGE

KIT spring, set of four

1шт.

14

1272808C1

NEEDLE BEARING

needle bearing

1шт.

15

NSS

NOT SOLD SEPARAT

PLATE rating

1шт.

3141548R91

SEAL KIT

seal, pump repair, Includes: Ref. 16 - 21

1шт.

16

NSS

NOT SOLD SEPARAT

WASHER flat, cover bolt, seal

7шт.

17

NSS

NOT SOLD SEPARAT

O-RING 2 x 76 mm, seal

2шт.

18

NSS

NOT SOLD SEPARAT

O-RING 1 x 80 mm, seal

1шт.

19

NSS

NOT SOLD SEPARAT

RING seal

1шт.

20

NSS

NOT SOLD SEPARAT

RING seal

1шт.

21

NSS

NOT SOLD SEPARAT

O-RING seal

1шт.

22

NSS

NOT SOLD SEPARAT

SLEEVE pump

1шт.

23

NSS

NOT SOLD SEPARAT

SLEEVE pump

1шт.

24

NSS

NOT SOLD SEPARAT

HOUSING pump

1шт.

Выбрано товаров: 26
