Запчасти Case IH 1688 (5-06) - POWER STEERING SYSTEM, PUMP TO CYLINDER SYSTEM (04) - STEERING

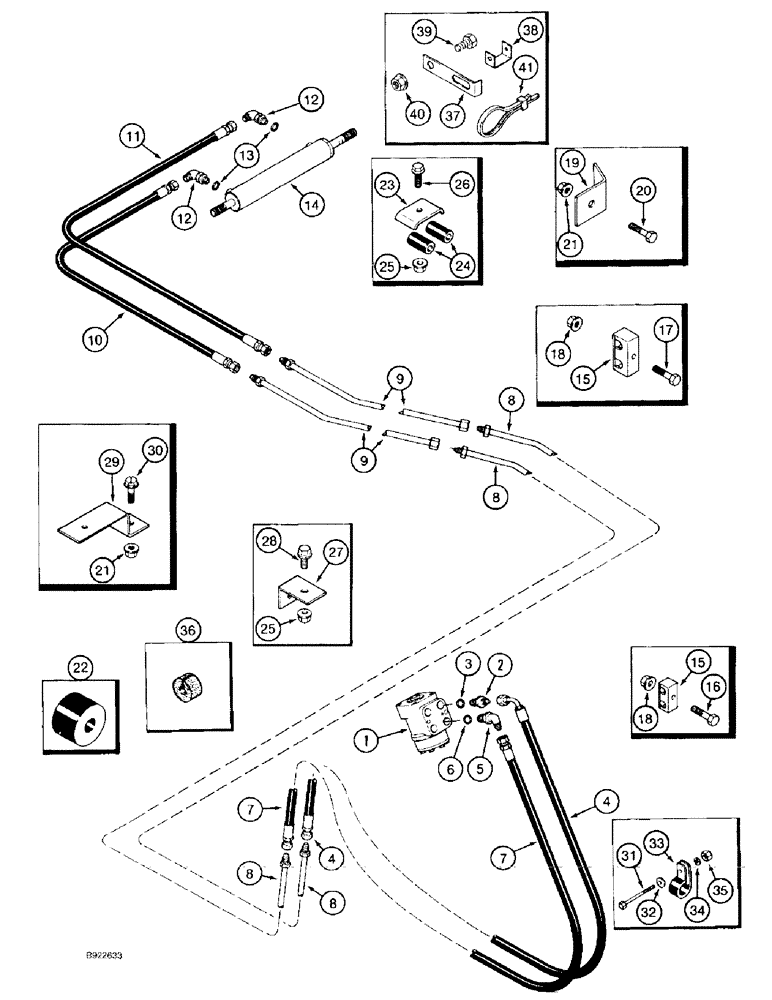

Схема запчастей Case IH 1688 - (5-06) - POWER STEERING SYSTEM, PUMP TO CYLINDER SYSTEM (04) - STEERING
19
25
1
18
4
9
12
34
32
28
18
9
40
6
20
13
25
39
5
10
22
15
21
24
8
33
14
35
16
17
8
21
36
29
7
23
31
15
8
41
8
11
3
38
27
4
30
12
7
26
37
2

Артикул

Название

Примечание

Количество

1

1542691C1

PUMP

ASSEMBLY steering hand, parts list Figure 5-8

1шт.

2

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER straight, 9/16-18 flare x 3/4-16 inch O-ring boss, Includes: Ref. 3

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

111173A1

HOSE ASSY.

145-3/16 inch (3685 mm) long, steering hand pump, left hand

1шт.

5

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

Adj., Incl. 6

1шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

7

1284303C1

HYDRAULIC HOSE

145 inch (3683 mm) long, steering hand pump, right hand

1шт.

8

1541565C2

HYD TUBE

steering, intermediate, replaces 1541565C1

2шт.

9

187825C2

HYD TUBE,0.375" OD, 723.9 mm Length

steering, rear, replaces 187825C1

2шт.

10

179202C1

HOSE,7.94mm ID x 1727.2mm L, SAE 100R1

68 inch (1727 mm) long, cylinder, lower

1шт.

11

183920C1

HOSE ASSY.

77 inch (1956 mm) long, cylinder, upper

1шт.

12

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90 degree, 9/16-18 inch flare x adj O-ring boss, Includes: Ref. 13

2шт.

14

1958024C1

STEERING CYLINDER

ASSEMBLY 2-1/2 (64) ID x 9 inch (229 mm) stroke, steering, power guide axle, parts list Figure 5-36

1шт.

87337226R

REMAN-HYD CYLINDER

1688 ( 1/93 - 12/94 ) Reman For New P/N 1958024C1

1шт.

87337226C

CORE-HYD CYLINDER

Return Number

1шт.

15

183825C1

CLAMP

steering tube, for 3/8 inch

3шт.

16

413-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

hex, 1/4 NC x 1-3/4 inch

1шт.

17

413-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

2шт.

18

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

3шт.

19

178960C1

BRACKET

SUPPORT steering rear tubes

1шт.

20

409-7612

BOLT,3/8"-16 x 1.09" OAL

1шт.

21

231-5146

FLANGE NUT,3/8"-16

2шт.

22

167955C2

SEAL

GROMMET steering cylinder hoses

2шт.

23

165602C1

CLAMP

steering tubes

1шт.

24

163490C1

RUBBER INSULATOR

INSULATOR rubber, 3/8 ID x 1-13/64 inch long, steering tube clamp

2шт.

25

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

26

535789R1

BOLT,Hex Serr, 5/16" - 18 x 1 1/4"

BOLT hex flange, 5/16 NC x 1-1/4 inch

1шт.

27

183899C1

ANGLE

support, hand pump hose

1шт.

28

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

1шт.

29

196517C1

SUPPORT TUBE

steering tubes

1шт.

30

409-7612

BOLT,3/8"-16 x 1.09" OAL

1шт.

31

413-572

BOLT,Hex, 5/16" - 18 x 4-1/2", Gr 5

BOLT hex, 5/16 NC x 4-1/2 inch

1шт.

32

495-81116

WASHER,8.74mm ID x 25.4mm OD x 1.7mm Thk

flat, 11/32 x 1 x 3/64 inch

1шт.

33

26613R1

CLAMP,1 7/8", Insul, 1/2" Bolt

steering hose, 1-7/8 inch diameter

1шт.

34

492-11031

LOCK WASHER,5/16"

1шт.

35

425-105

NUT,5/16"-18, G5

1шт.

36

167955C2

SEAL

GROMMET power steering hoses

2шт.

37

111863A1

STRAP

BRACKET steering hose support

1шт.

38

111862A1

SUPPORT

steering hose

1шт.

39

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

40

231-5146

FLANGE NUT,3/8"-16

1шт.

41

306132C1

CABLE TIE,14.5" L

CABLE STRAP tie, 14 inch, pump hoses

2шт.

13

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
