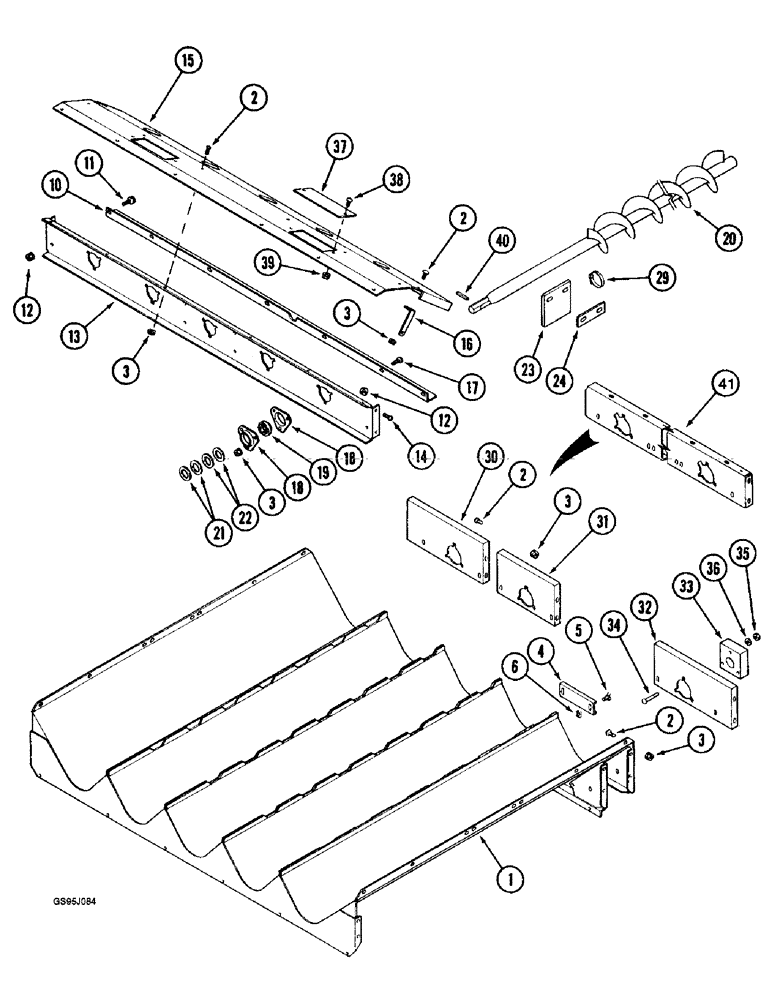

Запчасти Case IH 1682 (9-114) - SHOE AUGER BED (09) - CHASSIS ATTACHMENTS

1

191645C2

TROUGH

- auger

1шт.

2

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch, if used

1шт.

2

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch, if used

1шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

4

185068C1

COVER

- auger trough clean out

5шт.

5

166667C1

THUMB SCREW,1/4" - 20 x 0.62"

BOLT - wing, 1/4 NC x 5/8 inch

10шт.

6

564791R1

SPRING NUT

- Tinnerman, 1/4 inch NC

10шт.

10

188360C1

STIFFENER

ANGLE - stiffener

1шт.

11

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex, self-locking, special, 3/8 NC x 1 inch

2шт.

12

231-5146

FLANGE NUT,3/8"-16

1шт.

13

1309226C1

SUPPORT

- auger drive

1шт.

14

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, special, 3/8 NC x 3/4 inch

4шт.

15

1321372C1

FILLER

PANEL - filler, rotor to auger drive

1шт.

16

193554C1

SUPPORT

- pan

2шт.

17

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

- slotted truss head, 5/16 NC x 1 inch

1шт.

18

571424R1

FLANGE

- bearing auger

10шт.

19

195293C91

BALL BEARING,0.89" ID x 2.04" OD x 1"

BEARING - shaft, auger

5шт.

20

1308541C1

AUGER

- right-hand rotation, bed

5шт.

21

495-81210

WASHER,34.14mm ID x 50.8mm OD x 1.7mm Thk

- flat, 1-11/32 x 2 x 3/64 inch (Replaces washer 21290R1)

10шт.

22

495-81211

WASHER,34.14mm ID x 50.8mm OD x 3.4mm Thk

- flat, 1-11/32 x 2 x 7/64 inch (Replaces washer 21779R1)

10шт.

23

1302112C1

STRIP

PLATE - grain spreader, left-hand

1шт.

Part of auger bed grain spreader accessory kit P/N 1300666C91

1шт.

24

1302113C1

BAR

- grain spreader plate, strip

1шт.

Part of auger bed grain spreader accessory kit P/N 1300666C91

1шт.

29

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

CLAMP, HOSE, , Adjustable #28, 1.31/2.25 Type F Worm

2шт.

30

191660C1

SUPPORT

- front, auger left-hand

1шт.

31

191659C1

SUPPORT

- center, auger

3шт.

32

191661C1

SUPPORT

- front, auger right-hand

1шт.

33

193414C2

BOARD

- bearing, auger

5шт.

34

433-636

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/4", Gr 5

BOLT - carriage, 3/8 NC x 2-1/4 inch

15шт.

35

231-4116

NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

15шт.

36

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

15шт.

37

1319548C1

BAR

COVER - grain sensor

2шт.

38

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss head, 5/16 NC x 1/2 inch

4шт.

39

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

40

38-32032

PIN,7.92mm OD x 50.8mm L

5шт.

41

1305104C3

SUPPORT - front auger, replaces items 30, 31, and 32 above

1шт.

1300666C91

KIT

- accessory, auger bed grain spreader, Includes: Ref. 23 and 24

1шт.
