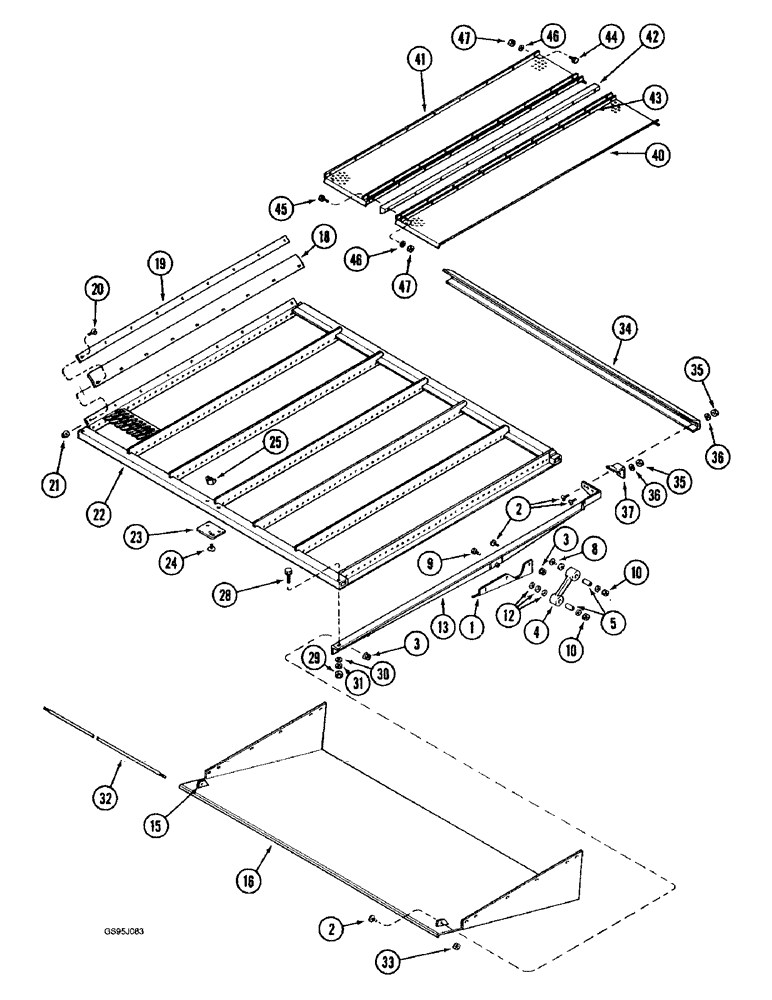

Запчасти Case IH 1682 (9-112) - SHOE SIEVE (09) - CHASSIS ATTACHMENTS

1

1302335C2

SUPPORT

- forward, shoe return left-hand

1шт.

1

1302336C2

SUPPORT

- forward, shoe return right-hand

1шт.

2

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

1шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

4

175160C91

LEVER

HANGER ASSEMBLY - shoe, front, no longer used, order hanger assembly 1957450C1, Includes: Ref. 5

2шт.

4

1957450C1

ARM

HANGER ASSEMBLY - shoe, front, replaces hanger assembly 175160C91, Includes: Ref. 5

2шт.

5

627555R91

BUSHING,16mm ID x 28.96mm OD x 44.45mm L

- pivot, hanger, used with hanger assembly 175160C91

2шт.

5

1330324C1

BUSHING

- pivot, hanger, used with hanger assembly 1957450C1

2шт.

8

133-3

CARRIAGE BOLT,Short Nk, 5/8" - 11 x 3 1/4", Gr 5

BOLT, CARRIAGE, (Replaces bolt 21776R1) Short NK, 5/8"-11 x 3 1/4", G5

2шт.

9

21217R1

BOLT,Hex, 5/8" - 11 x 4 1/2", Gr 8

- hex, 5/8 NC x 4-1/2 inch, grade 8

2шт.

10

232-41110

NUT,5/8"-11, GC

NUT, LOCK, (Replaces nut 9412231) 5/8"-11, GC

4шт.

12

169256C2

WASHER,16.28mm ID x 31.8mm OD x 3.05mm Thk

- flat, special, 41/64 x 1-1/4 x 1/8 inch

10шт.

13

1302070C3

SUPPORT

- side, shoe left-hand

1шт.

13

1302071C3

SUPPORT

- side, shoe right-hand

1шт.

15

1319219C1

PLATE

BAR - filler, return pan

2шт.

16

1319209C1

BOTTOM

- shoe return pan

1шт.

18

192192C1

SEALING STRIP

- shoe sieve

2шт.

19

192193C1

BAR

- shoe sieve seal

2шт.

20

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

- slotted truss head, 1/4 NC x 1/2 inch

18шт.

21

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

18шт.

22

1346915C3

SIEVE

ASSEMBLY - shoe (Replaces sieve assembly 193960C2), Includes: Ref. 23 - 25

1шт.

23

186675C1

ADJUSTING PLATE

- shoe lever

1шт.

24

412-48

CARRIAGE BOLT,Short Sq Nk 1/4" - 20 x 1/2", Gr 2

BOLT - carriage, 1/4 NC x 1/2 inch (Replaces bolt 598794R1)

2шт.

25

126177

WING NUT

NUT - wing, 1/4 inch NC

2шт.

28

326-632

BOLT,Hex, 3/8" - 16 x 2", Gr 8

(Replaces bolt 24843R1) Hex, 3/8"-16 x 2", G8

2шт.

29

429-106

NUT,3/8"-16, G8

- hex, 3/8 inch NC, grade 8 (Replaces nut 21333R1)

2шт.

30

495-81129

WASHER,13/32" x 3/4" x .120"

- flat, 13/32 x 3/4 x 7/64 inch (Replaces washer 142619H)

2шт.

31

492-11038

LOCK WASHER,3/8"

2шт.

32

1319216C1

ROD

- return pan bottom, rear

1шт.

33

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

2шт.

34

1319239C1

ANGLE

BRACKET - support, front cross

1шт.

Part of parts accessory alfalfa kit P/N 1319277C91

1шт.

35

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

36

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

37

182684C3

CLIP

- shoe, retainer, front (Replaces clip 182684C2)

2шт.

40

1319282C1

SCREEN

- side section, perforated

2шт.

Part of parts accessory alfalfa kit P/N 1319277C91

1шт.

For use with 193960C2 Sieve.

1шт.

41

1319293C1

SCREEN - middle, perforated

4шт.

Part of parts accessory alfalfa kit P/N 1319277C91

1шт.

For use with 193960C2 Sieve.

1шт.

42

1319284C1

BAR

- wood spacer

1шт.

Part of parts accessory alfalfa kit P/N 1319277C91

1шт.

For use with 193960C2 Sieve.

1шт.

43

1319300C1

BAR

- backing, screen

10шт.

Part of parts accessory alfalfa kit P/N 1319277C91

1шт.

For use with 193960C2 Sieve.

1шт.

44

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

36шт.

46

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

45шт.

47

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5 (Replaces nut 120375)

45шт.

1319277C91

PACKAGE

KIT - alfalfa, parts accessory, includes: Ref. 34, 40 - 43

1шт.

45

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

9шт.
