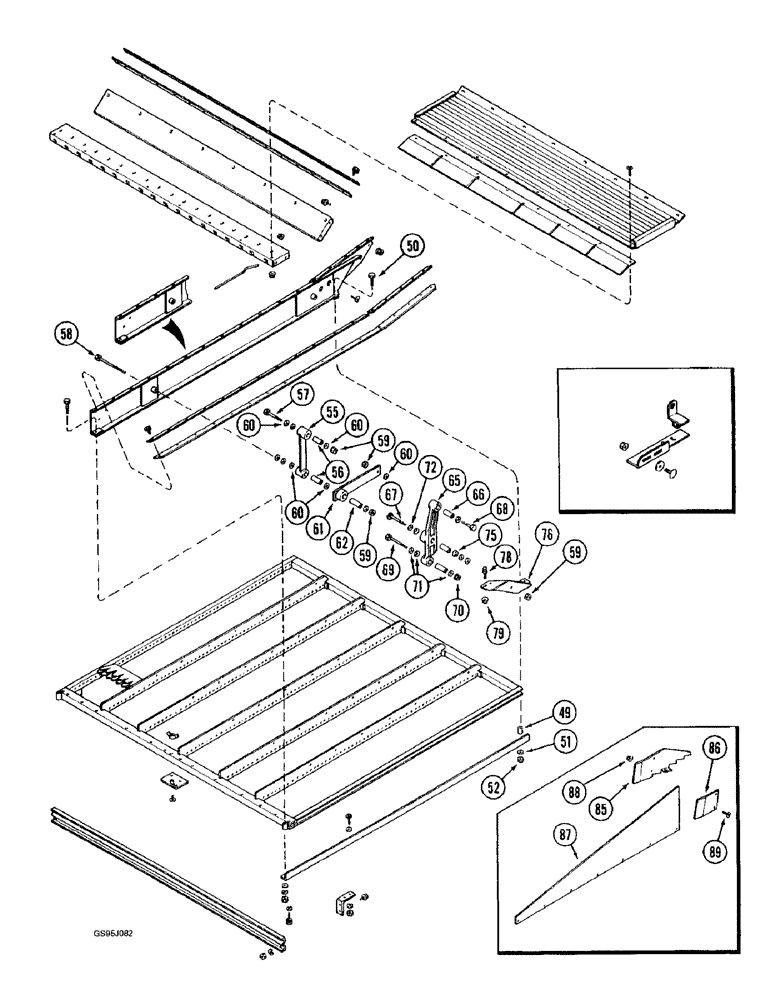

Запчасти Case IH 1682 (9-110) - SHOE CHAFFER SIEVE (CONTD) (09) - CHASSIS ATTACHMENTS

49

186646C1

SPACER,5/8" Tube x 15/16"

- chaffer sieve support, front

2шт.

50

426-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 8

- hex, 3/8 NC x 2-1/4 inch, grade 8 (Replaces bolt 20248R1)

2шт.

51

495-81138

WASHER,10.31mm ID x 25.4mm OD x 4.93mm Thk

- flat, 13/32 x 1 x 11/64 inch (Replaces washer 22264R1)

2шт.

52

232-4136

LOCK NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

2шт.

55

175131C91

ARM ASSY.

ARM ASSEMBLY - hanger, rear, if used, Includes: Ref. 56

2шт.

55

1957455C1

ARM

ASSEMBLY - hanger, rear, used with heavy duty cleaning system, Includes: Ref. 56

2шт.

56

627555R91

BUSHING,16mm ID x 28.96mm OD x 44.45mm L

- arm, hanger, used with arm assembly 175121C91

2шт.

56

1330324C1

BUSHING

- arm, hanger, used with arm assembly 1957455C1

2шт.

57

326-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 8

(Replaces bolt 22228R1) Hex, 5/8"-11 x 4", G8

2шт.

58

326-10112

BOLT,Hex, 5/8" - 11 x 7", Gr 8

- hex, 5/8 NC x 6-1/2 inch, grade 8 (Replaces bolt 25390R1)

4шт.

59

232-41110

NUT,5/8"-11, GC

NUT, LOCK, (Replaces nut 9412231) 5/8"-11, GC

1шт.

60

169256C2

WASHER,16.28mm ID x 31.8mm OD x 3.05mm Thk

- flat, special, 41/64 x 1-1/4 x 1/8 inch

2шт.

61

188010C91

ARM ASSY.

ARM ASSEMBLY - shoe, rear, if used, Includes: Ref. 62

2шт.

61

1330357C1

ARM

ASSEMBLY - shoe, rear, used with heavy duty cleaning system, Includes: Ref. 62

2шт.

62

627555R91

BUSHING,16mm ID x 28.96mm OD x 44.45mm L

- pivot, arm, used with arm assembly 188010C91

1шт.

62

1330324C1

BUSHING

- pivot, arm, used with arm assembly 1330357C1

1шт.

65

192941C92

LEVER ASSY.

LEVER ASSEMBLY - shoe, if used, Includes: Ref. 66

2шт.

65

1957460C2

LEVER

ASSEMBLY - shoe, used with heavy duty cleaning system, Includes: Ref. 66

2шт.

66

627555R91

BUSHING,16mm ID x 28.96mm OD x 44.45mm L

- pivot, lever, used with lever assembly 192941C92

3шт.

66

1330323C2

BUSHING

- pivot, lever, used with lever assembly 1957460C2

3шт.

67

433-1080

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 5", Gr 5

BOLT - carriage, 5/8 NC x 5 inch, grade 2

2шт.

68

326-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 8

(Replaces bolt 22228R1) Hex, 5/8"-11 x 4 1/2", G8

2шт.

69

326-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 8

- hex, 5/8 NC x 4-1/2 inch, grade 8 (Replaces bolt 21217R1)

6шт.

70

232-41110

NUT,5/8"-11, GC

NUT, LOCK, (Replaces nut 9412231) 5/8"-11, GC

14шт.

71

169256C2

WASHER,16.28mm ID x 31.8mm OD x 3.05mm Thk

- flat, special, 41/64 x 1-1/4 x 1/8 inch

2шт.

72

495-81057

WASHER,23.01mm ID x 38.1mm OD x 3.4mm Thk

- flat, 29/32 x 1-1/2 x 7/64 inch (Replaces washer 21714R1)

2шт.

75

168250C1

RING

SPACER - shoe, lever, used with lever assembly 192941C92, item 65

1шт.

76

193107C2

SUPPORT

- lever, shoe left-hand, if used

1шт.

76

1968827C1

SUPPORT

- lever, shoe left-hand, used with heavy duty cleaning system

1шт.

76

193108C2

SUPPORT

- lever, shoe right-hand, if used

4шт.

76

1968828C1

SUPPORT

- lever, shoe right-hand, used with heavy duty cleaning system

4шт.

78

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch

4шт.

79

231-5146

FLANGE NUT,3/8"-16

4шт.

180771C91

KIT

- grain pan dividers, side hill, Includes: Ref. 85 - 89

1шт.

85

185115C1

DIVIDER

- chaffer pan, front, side hill

1шт.

86

185116C1

RETAINER

- chaffer divider, side hill

1шт.

87

185114C1

DIVIDER

- chaffer sieve, side hill

1шт.

88

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

Side hill dividers Flg, USR, 1/4"-20

11шт.

89

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

- slotted truss head, 1/4 NC x 1/2 inch, side hill dividers

11шт.
