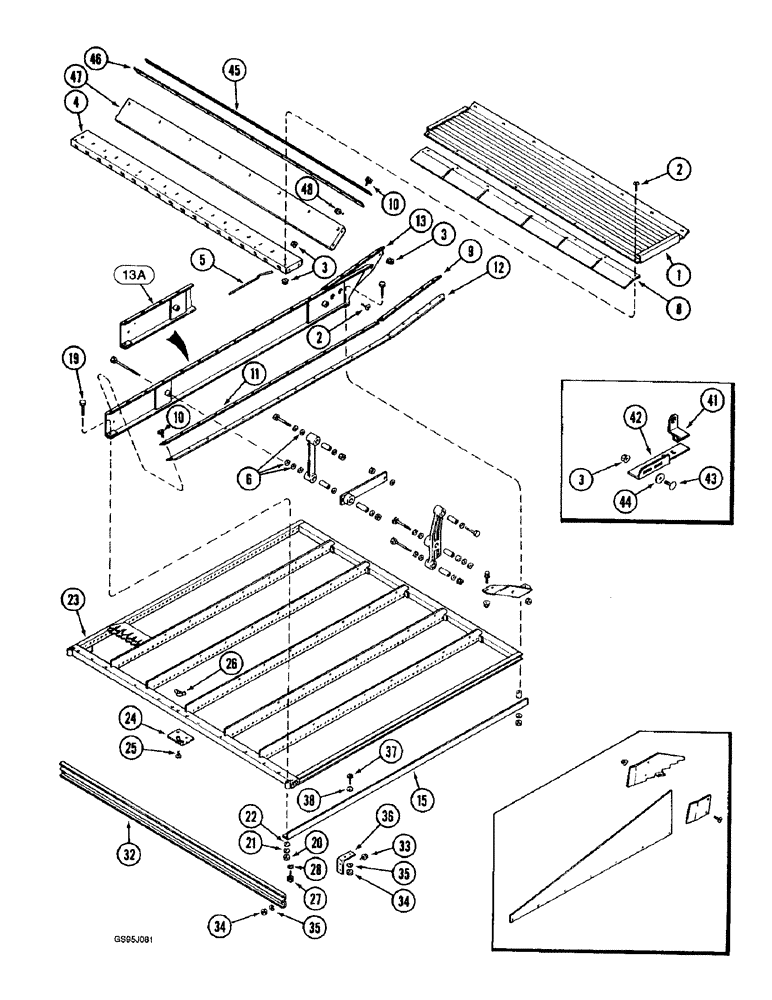

Запчасти Case IH 1682 (9-108) - SHOE CHAFFER SIEVE (09) - CHASSIS ATTACHMENTS

1

192057C1

GRAIN PAN

PAN - grain

1шт.

2

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss head, 5/16 NC x 1/2 inch

1шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

4

192061C1

SUPPORT

- chaffer pan

1шт.

5

175114C1

FINGER,Formed, 1 Prong, 264mm L

- auger bed, short, pan, grain

18шт.

6

169256C2

WASHER,16.28mm ID x 31.8mm OD x 3.05mm Thk

- flat, special, 41/64 x 1-1/4 x 1/8 inch

12шт.

8

1319259C1

COVER

- chaffer finger, cover

1шт.

9

192052C3

BAR

- chaffer frame seal, short (Replaces bar 192052C2)

2шт.

10

187-1036

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

SCREW - self-tapping, hex head, 1/4 NC x 1/2 inch

1шт.

11

192053C2

BAR

- chaffer frame seal (Replaces bar 192052C2)

2шт.

12

192051C3

SEALING STRIP

- chaffer frame, seal

2шт.

13

192040C3

RAIL

- chaffer, right-hand, if used

1шт.

13

192039C3

RAIL

- chaffer, left-hand, if used

1шт.

13a

1979198C1

RAIL

- chaffer, left-hand, if used

1шт.

13a

1979199C1

RAIL

- chaffer, right-hand, if used

1шт.

15

186370C1

ANGLE

- support, chaffer right-hand

1шт.

15

186369C1

ANGLE

- support, chaffer left-hand

1шт.

19

326-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 8

(Replaces bolt 897520R1) Hex, 3/8"-16 x 2 3/4", G8

2шт.

20

429-106

NUT,3/8"-16, G8

- hex, 3/8 inch NC, grade 8 (Replaces nut 21333R1)

2шт.

21

492-11038

LOCK WASHER,3/8"

2шт.

22

495-81138

WASHER,10.31mm ID x 25.4mm OD x 4.93mm Thk

- flat, 13/32 x 1 x 11/64 inch (Replaces washer 22264R1)

2шт.

23

1330687C4

SIEVE

ASSEMBLY - chaffer (Replaces sieve assembly 193996C4), Includes: Ref. 24 - 26

1шт.

24

186675C1

ADJUSTING PLATE

- chaffer lever

1шт.

25

412-48

CARRIAGE BOLT,Short Sq Nk 1/4" - 20 x 1/2", Gr 2

BOLT - carriage, 1/4 NC x 1/2 inch, grade 2

2шт.

26

86627130

WING NUT,1/4"-20

NUT - wing, 1/4 inch NC

2шт.

27

1327799C2

FLANGE BOLT,Hex, 3/8" - 16 x 1.25", Gr 5, Coated

BOLT - hex washer head, special, 3/8 NC x 1-1/4 inch, if used

2шт.

27

326-680

BOLT,Hex, 3/8" - 16 x 5", Gr 8

If used Hex, 3/8"-16 x 5", G8

2шт.

28

492-11038

LOCK WASHER,3/8"

2шт.

32

193970C1

CHANNEL

- rear

1шт.

33

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

4шт.

34

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

35

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

36

186674C1

ANGLE

- support, rear deflector

2шт.

37

156466

SCREW,Cross Flat Hd, 5/16" - 18 x 1"

4шт.

38

495-81112

WASHER,.344" x 3/4" x .120"

- flat, 11/32 x 3/4 x 7/64 inch (Replaces washer 21496R1)

4шт.

41

187996C1

MAGNET

- shoe sensor

1шт.

42

187998C2

ANGLE

SUPPORT - switch, shoe (Replaces support 187998C1)

1шт.

43

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 inch - 18 NC x 3/4 inch (Replaces bolt 598802R1)

2шт.

44

495-81116

WASHER,8.74mm ID x 25.4mm OD x 1.7mm Thk

- flat, 11/32 x 1 x 3/64 inch (Replaces washer 134238R1)

2шт.

45

192050C2

BAR

- front chaffer frame seal (Replaces bar 192050C1)

1шт.

46

192049C1

SEALING STRIP

- seal, front chaffer frame

1шт.

47

192045C1

SUPPORT

- frame, chaffer

1шт.

48

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

4шт.
