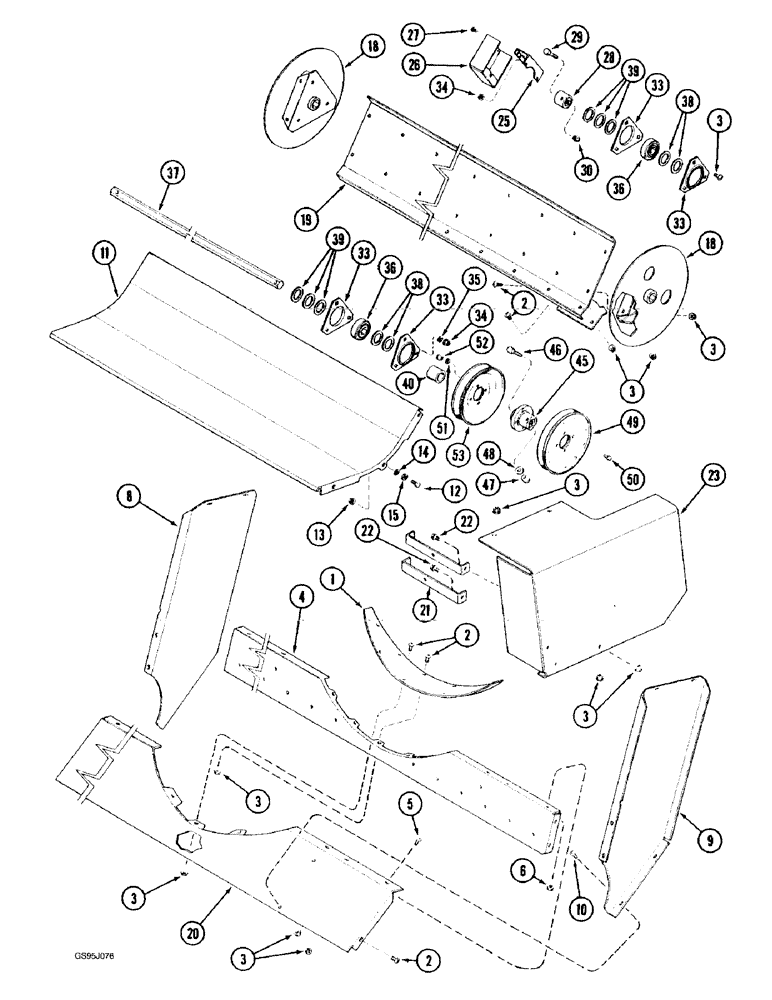

Запчасти Case IH 1682 (9-098) - DISCHARGE BEATER (09) - CHASSIS ATTACHMENTS

1

193916C1

SUPPORT

- bottom front

1шт.

2

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, special, 3/8 NC x 3/4 inch

1шт.

3

231-5146

FLANGE NUT,3/8"-16

1шт.

4

182931C1

SUPPORT

- cage, lower rear

1шт.

5

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

6шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

6шт.

8

193454C1

DEFLECTOR

- Discharge, LH

1шт.

9

193455C1

DEFLECTOR

Discharge, RH

1шт.

10

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted truss head, 3/8 NC x 1 inch

12шт.

11

195454C2

SUPPORT

BOTTOM - beater, rear (Replaces bottom 195454C1)

1шт.

12

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

13

231-4116

NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

4шт.

14

492-11038

LOCK WASHER,3/8"

4шт.

15

25553R1

WASHER,13/32" x 1 1/8" x .134", HDN

- flat, 13/32 x 1-1/8 x 9/64 inch, hardened

4шт.

18

1319266C1

HUB

- beater, triangular

2шт.

19

1319270C1

BLADE

- beater

3шт.

20

191000C1

SUPPORT

- discharge, beater

1шт.

21

194760C1

SUPPORT

BRACKET - support, beater shield

2шт.

22

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch

1шт.

23

195113C1

SUPPORT

- beater drive

2шт.

24

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex, self-locking, special, 3/8 NC x 1 inch

2шт.

25

187629C1

SUPPORT

BRACKET - sensor, shaft

1шт.

26

187630C1

SUPPORT

COVER - sensor, shaft

1шт.

27

280-1478

SELF-TAP SCREW,HWH, 1/4-14 x 1/2"

SCREW - selt-tapping, hex washer head, 1/4-14 x 1/2 inch

2шт.

28

1302104C1

HUB

BUSHING - beater, fixed, 35 mm

1шт.

29

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

- hex, 3/8 NC x 2-1/4 inch

1шт.

30

231-4116

NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

1шт.

33

180955C1

FLANGED BEARING,0.375"

FLANGE - bearing, beater

4шт.

34

425-106

NUT,3/8"-16, Cl 5

6шт.

35

492-11038

LOCK WASHER,3/8"

6шт.

36

156816C91

BEARING HOUSING,28.6mm Hex x 72mm OD x 25mm W

BEARING - ball, beater

2шт.

37

1302176C2

SHAFT

- beater, discharge

1шт.

38

495-81211

WASHER,34.14mm ID x 50.8mm OD x 3.4mm Thk

- flat, 1-11/32 x 2 x 7/64 inch (Replaces washer 21779R1)

4шт.

39

495-81210

WASHER,34.14mm ID x 50.8mm OD x 1.7mm Thk

- flat, 1-11/32 x 2 x 1/16 inch (Replaces washer 21290R1)

1шт.

40

632147R1

SPACER

- pulley, 1-5/8 OD x 1-5/8 inch long

1шт.

45

1319402C1

HUB

- pulley, beater drive

1шт.

46

326-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 8

(Replaces bolt 24866R1) Hex, 1/2"-13 x 2 1/2", G8

1шт.

47

232-4118

NUT,1/2"-13, GC

NUT, LOCK, (Replaces nut 9412230) 1/2"-13, GC

1шт.

48

396-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened (Replaces washer 26273R1) 17/32" x 1 1/16" x .134"

1шт.

49

195161C1

PULLEY

- drive, 8-3/8 inch OD

1шт.

50

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

4шт.

51

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

52

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

53

566516R91

PULLEY ASSY.

PULLEY - drive, straw spreader, 9-3/4 inch OD

4шт.
