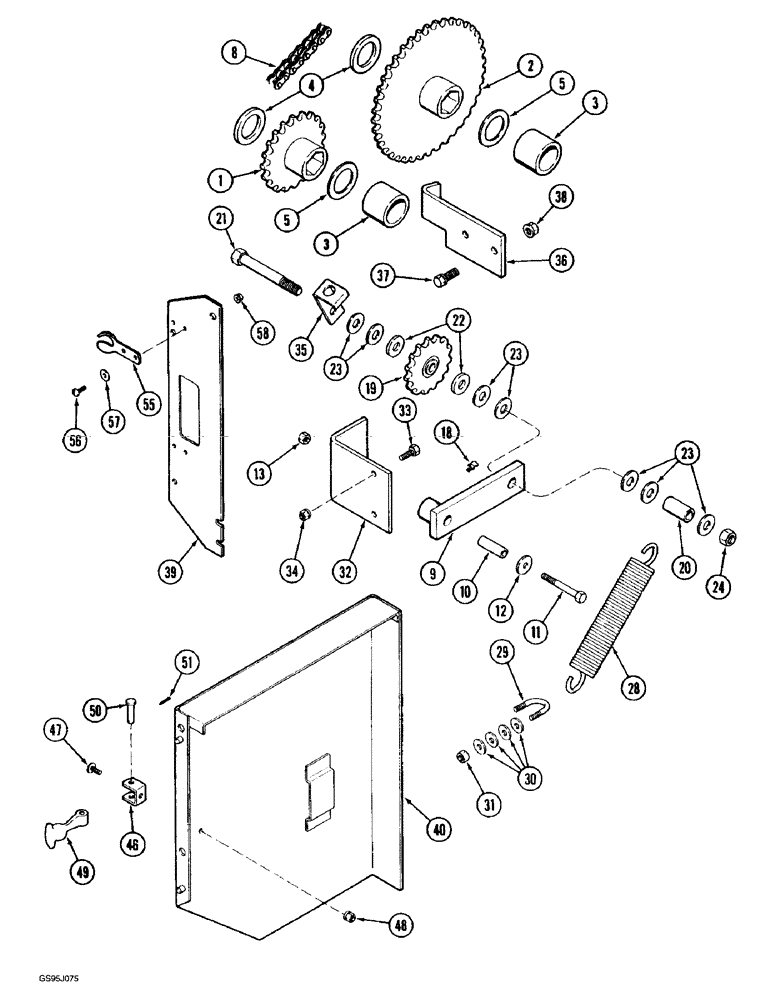

Запчасти Case IH 1682 (9-096) - BEATER AND ROCKTRAP DRIVE (09) - CHASSIS ATTACHMENTS

1

1329719C2

SPROCKET

- drive, beater, 20 teeth

1шт.

2

1329720C2

SPROCKET

- drive, beater, 40 teeth

1шт.

3

162172C1

SPACER

- sprocket, 1-13/16 x 2-1/4 x 1-15/16 inch

1шт.

4

95-81150

WASHER,46.02mm ID x 63.5mm OD x 3.35mm Thk

- flat, 1-13/16 x 2-1/2 x 1/8 inch

1шт.

5

495-8109

WASHER - flat, 1-25/32 x 2-1/2 x 3/64 inch (Replaces washer 20705R1)

1шт.

8

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - drive

1шт.

Use 67 links form 10 foot roll marked 1793D and 1 connecting link marked 17869D.

1шт.

9

1321933C3

SUPPORT

- idler, spring

1шт.

10

221338H1

SPACER,10.3mm ID x 15.88mm OD x 50.8mm L

- tube, 5/8 x 2 inch, support

1шт.

11

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- hex, 3/8 NC x 3-1/4 inch

1шт.

12

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

- flat, 13/32 x 13/16 x 3/32 inch, hardened

1шт.

13

231-4116

NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

1шт.

18

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

Special taper 90º, 1/4"-28 NPT x .75" lg, Drive

1шт.

19

541857R92

SPROCKET,15T

- idler, 15 teeth

1шт.

20

187217C1

SPACER,7/8" Tube x 1 13/16"

- sprocket, 7/8 x 1-13/16 inch

1шт.

21

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

1шт.

22

396-31066

WASHER,21/32" x 1 5/16" x .188", HDN

- flat, 21/32 x 1-5/16 x 3/16 inch

2шт.

23

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

7шт.

24

232-41110

NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

1шт.

28

1330032C1

SPRING

- return, idler

1шт.

29

726510R1

U-BOLT,3/8" - 16 x 1 3/4"

- 3/8 NC

1шт.

30

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

8шт.

31

231-4116

NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

2шт.

32

1329807C2

SUPPORT

- outer, idler

1шт.

33

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex, self-locking, special, 3/8 NC x 1 inch

2шт.

34

231-5146

FLANGE NUT,3/8"-16

2шт.

35

1330234C2

SUPPORT

- sensor, shaft

1шт.

36

1330249C3

ANGLE

- stop , idler (Replaces angle 1330249C2)

1шт.

37

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

2шт.

38

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

39

1330237C2

PLATE

- mounting, shield

1шт.

40

1330255C91

SHIELD

- drive, with decal

1шт.

46

188103C1

BRACKET

- hook anchor

2шт.

47

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

2шт.

48

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

49

494307C1

LATCH

HOOK - hold down, latch

2шт.

50

439-1424

HEADED PIN,6.35mm OD x 38.1mm L

PIN, HEADED, 1/4" x 1 1/2", G2

2шт.

51

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

2шт.

55

1330271C1

BRACKET

- hook, support

2шт.

56

470-11012

SCREW,Pan HD, #10 - 24 x 3/4"

- machine, pan head slotted, No. 10 NC x 3/4 inch

4шт.

57

495-81101

WASHER,5.56mm ID x 19.05mm OD x 1.7mm Thk

Flat (Replaces washer 22317R1) 7/32" x 3/4" x .060"

4шт.

58

231-51409

SERRATED NUT,Flg, USR, #10-24

4шт.
