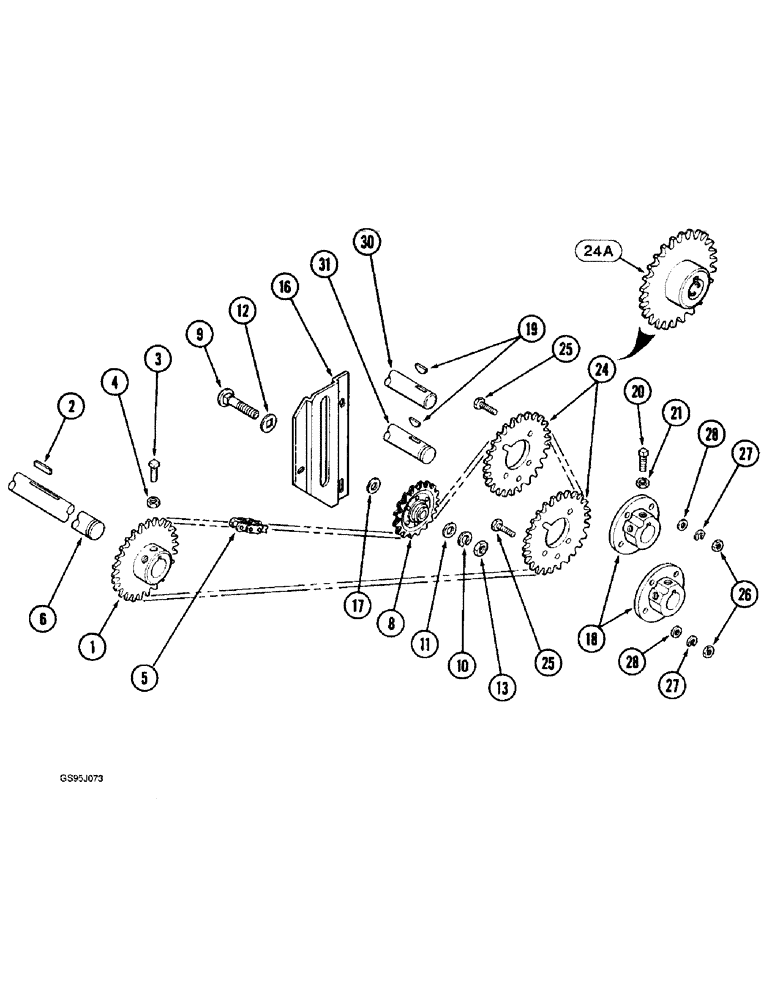

Запчасти Case IH 1682 (9-092) - TAILINGS ELEVATOR DRIVE (09) - CHASSIS ATTACHMENTS

1

192139C2

SPROCKET

- drive, 25 teeth

1шт.

2

581306R1

KEY,5/16" Sq x 1 1/4", Par

1шт.

3

495-13816

SCREW - square head set, 3/8 NC x 1 inch (Replaces screw 184365)

2шт.

4

425-106

NUT,3/8"-16, Cl 5

2шт.

5

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - drive

1шт.

Use 153 links from 10 foot roll marked 1791D and one connecting link 1310D.

1шт.

6

1319247C1

SHAFT

- drive

1шт.

8

631905R91

SPROCKET

- idler drive, 17 teeth

1шт.

9

433-1040

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/2", Gr 5

BOLT - carriage, 5/8 inch - 11 NC x 2-1/2 inch (Replaces bolt 598820R1)

1шт.

10

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

11

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

4шт.

12

N11720

WASHER

- flat, square hole, 21/32 x 1-1/2 x 3/32 inch

2шт.

13

425-1010

NUT,5/8"-11, G5

1шт.

16

1302069C2

SUPPORT

BRACKET - support idler

1шт.

17

495-81113

WASHER,0.34" ID x 0.75" OD x 0.18" Thk

- flat, 11/32 x 3/4 x 3/16 inch

3шт.

18

1302217C1

HUB

- sprocket, driven

2шт.

19

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

2шт.

20

385-13820

SET SCREW,3/8" - 16 x 1-1/4"

SCREW - set, square head, 3/8 NC x 1-1/4 inch, cup point (Replaces screw 26202R1)

4шт.

21

329-146

JAM NUT,Jam, 3/8"-16, G5

4шт.

24

188188C1

SPROCKET ASSY.

SPROCKET - drive and driven, 27 teeth, if used

2шт.

24a

1345472C1

SPROCKET

- drive and driven, 27 teeth, welded, if used

2шт.

25

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

8шт.

26

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

8шт.

27

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

28

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch (Replaces washer 27309R1)

8шт.

30

191785C1

SHAFT

- head, elevator

1шт.

31

192563C1

AUGER

- delivery, See Figure 9-94

1шт.
