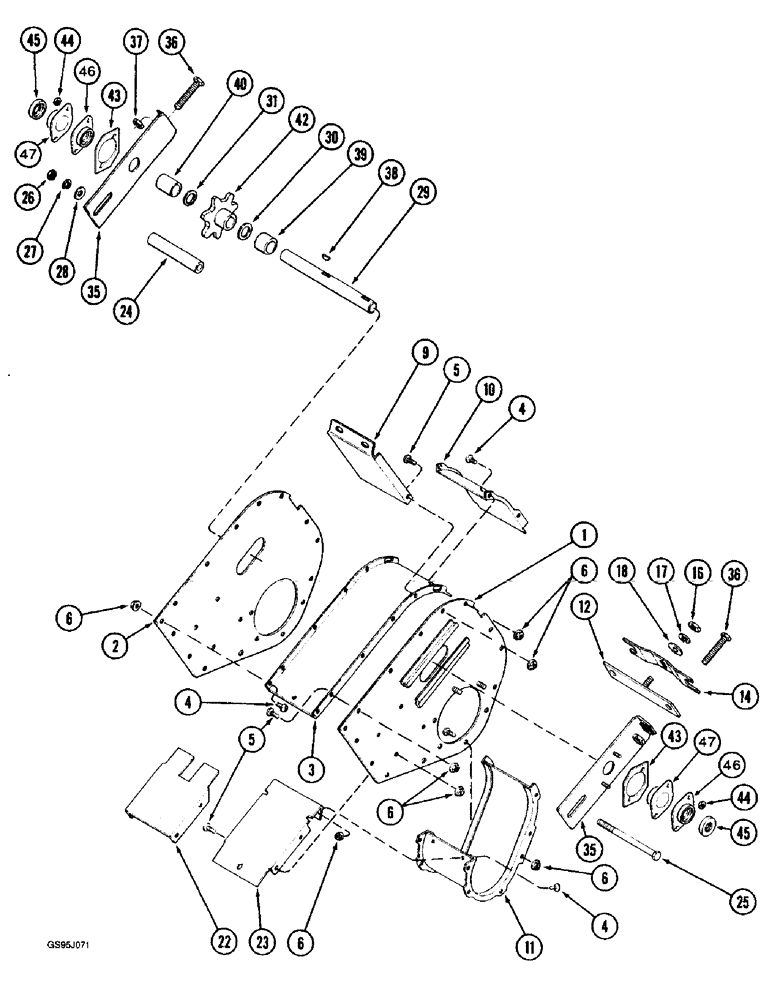

Запчасти Case IH 1682 (9-088) - TAILINGS ELEVATOR HEAD (09) - CHASSIS ATTACHMENTS

1

181367C1

SIDE PLATE

COVER - head, right-hand

1шт.

2

181366C1

SIDE PLATE

COVER - head, left-hand

1шт.

3

191783C1

TOP COVER

COVER - head, top

1шт.

4

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss head, 5/16 NC x 1/2 inch

1шт.

5

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

1шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

9

192426C1

SUPPORT

- upper, elevator

1шт.

10

191776C1

COVER

COVER - head, elevator

1шт.

11

188119C1

TROUGH

- head, elevator

1шт.

12

181375C1

SUPPORT

BAR - tightener, adjusting bolt

1шт.

14

181376C1

CLAMP

- support, tightener bolt

1шт.

16

425-106

NUT,3/8"-16, Cl 5

1шт.

17

492-11038

LOCK WASHER,3/8"

1шт.

18

495-71041

WASHER,10.31mm ID x 31.75mm OD x 2.54mm Thk

- flat, 13/32 x 1-1/4 x 3/32 inch (Replaces washer 614452R1)

1шт.

22

181327C1

BOTTOM

COVER - head, lower

1шт.

23

191782C1

SUPPORT

COVER - head, lower

1шт.

24

27829R1

SPACER,9.2mm ID x 13.72mm OD x 147.6mm L

Lock, Head shaft 1/4" Pipe x 5 13/16"

1шт.

25

424-5112

BOLT,Hex, 5/16" - 18 x 7", Gr 2

- hex, 5/16 NC x 7 inch, grade 2 (Replaces bolt 24666R1)

1шт.

26

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

27

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

28

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch (Replaces washer 27309R1)

2шт.

29

191785C1

SHAFT

- head, elevator

1шт.

30

495-81073

WASHER,1-1/32" x 1-3/4" x .060" Thk

- flat, 1-1/32 x 1-3/4 x 3/64 inch (Replaces washer 609836R1)

1шт.

31

495-81065

WASHER,26.19mm ID x 31.75mm OD x 1.7mm Thk

- flat, 1-1/32 x 1-1/4 x 3/64 inch (Replaces washer 21789R1)

1шт.

35

181364C1

SUPPORT

- shaft, elevator head

2шт.

36

667486R1

BOLT

BOLT - hex, 1/2 NC x 3-1/2 inch

2шт.

37

329-148

NUT,Jam, 1/2"-13, G8

- hex jam, 1/2 inch NC (Replaces nut 25933R1)

2шт.

38

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

2шт.

39

27828R1

SPACER,26.6mm ID x 33.4mm OD x 39.7mm L

Shaft, RH 1" Pipe x 1 9/16"

1шт.

40

516327R1

SPACER,26.6mm ID x 33.4mm OD x 69.8mm L

Shaft, LH 1" Pipe x 2 3/4"

1шт.

42

168683C1

SPROCKET

- shaft, 7 teeth

1шт.

43

214366C91

BALL BEARING,25.40mm ID x 52mm OD

BEARING - shaft, head

2шт.

44

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

45

455102R21

COLLAR

- locking, bearing

2шт.

46

50591

FLANGE,52mm

- bearing

2шт.

47

1979640C2

LARGE PLATE

SPACER - bearing flange

2шт.
