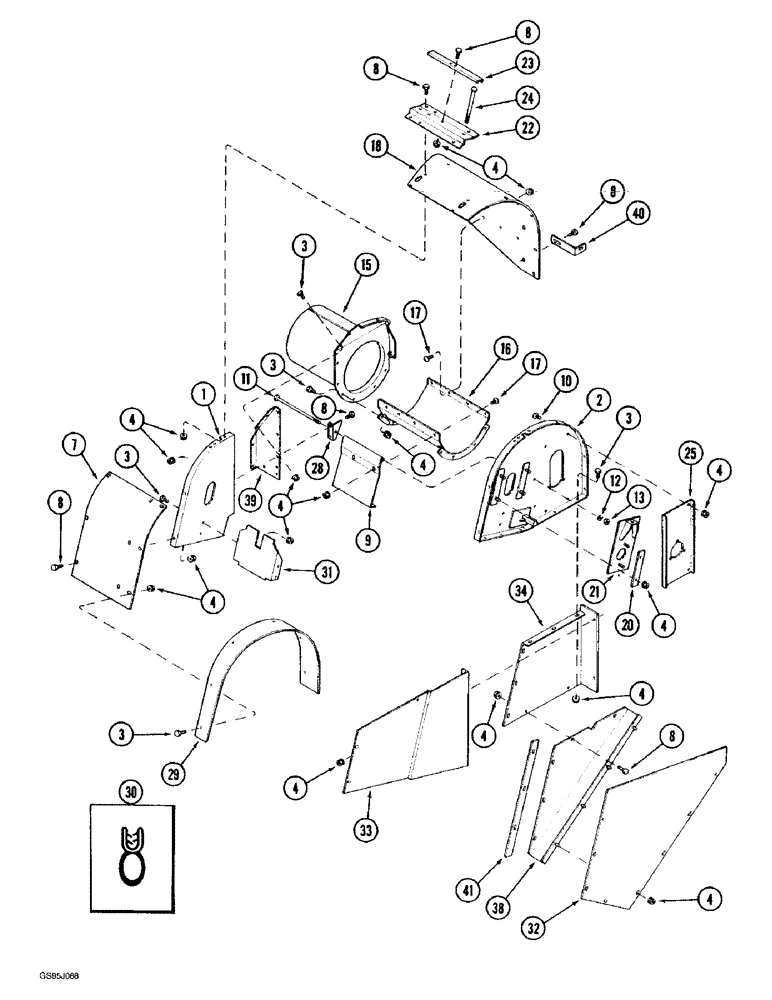

Запчасти Case IH 1682 (9-082) - GRAIN ELEVATOR HEAD (09) - CHASSIS ATTACHMENTS

1

1319901C1

SIDE PLATE

SIDE - elevator head, left-hand

1шт.

2

1321126C1

PLATE

SIDE - elevator head, right-hand

1шт.

3

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

1шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

7

1319940C1

COVER

- rear, head

1шт.

8

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

1шт.

9

1319954C1

BRACKET

SECTION - cut-off

1шт.

10

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss head, 5/16 NC x 1/2 inch

1шт.

11

413-5144

BOLT,Hex, 5/16" - 18 x 9", Gr 5

- hex, 5/16 NC x 9 inch (Replaces bolt 21389R1)

1шт.

12

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

13

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

15

121369A1

SUPPORT

- side, auger, includes 1319494C1 decal, shown on Figure 9-184, item 3 (Replaces support 1321277C1)

1шт.

16

1321130C1

TROUGH

- auger

1шт.

17

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

1шт.

18

1321847C1

SUPPORT

COVER - front, head

1шт.

20

1310040C1

BAR

- guide, bearing

4шт.

21

1317251C2

SUPPORT

- head shaft (Replaces support 1317251C1)

2шт.

22

1319959C1

SUPPORT

- tightener, conveyer

1шт.

23

1317474C1

CHANNEL

- lock, tightener

1шт.

24

820430C1

BOLT,Hex, 1/2" - 13 x 5 1/2", Full Thd

- hex, special, 1/2 NC x 5-1/2 inch

2шт.

25

1321129C1

PLATE

SUPPORT - bearing, auger, right-hand

1шт.

28

1321553C1

BRACKET

ANGLE - support, cutoff end

1шт.

29

1321230C1

PLATE

- sealing, head

1шт.

30

1321263C1

RUBBER SEAL,1137mm L

- flange, side, head

1шт.

31

1318476C1

PLATE

- extension, bottom

1шт.

32

1327670C1

SHEET

PANEL - side, right-hand

1шт.

33

1321618C2

PLATE

SUPPORT - cover, auger

1шт.

34

1321228C1

EXTENSION

- head, lower

1шт.

38

1321497C1

PANEL

SHEET - side, left-hand

1шт.

39

1321846C1

SUPPORT

ADAPTER - support, left-hand

1шт.

40

1321833C1

STRAP

BRACKET - brace, head

1шт.

41

1321155C1

SPACER

BAR - spacer

1шт.
