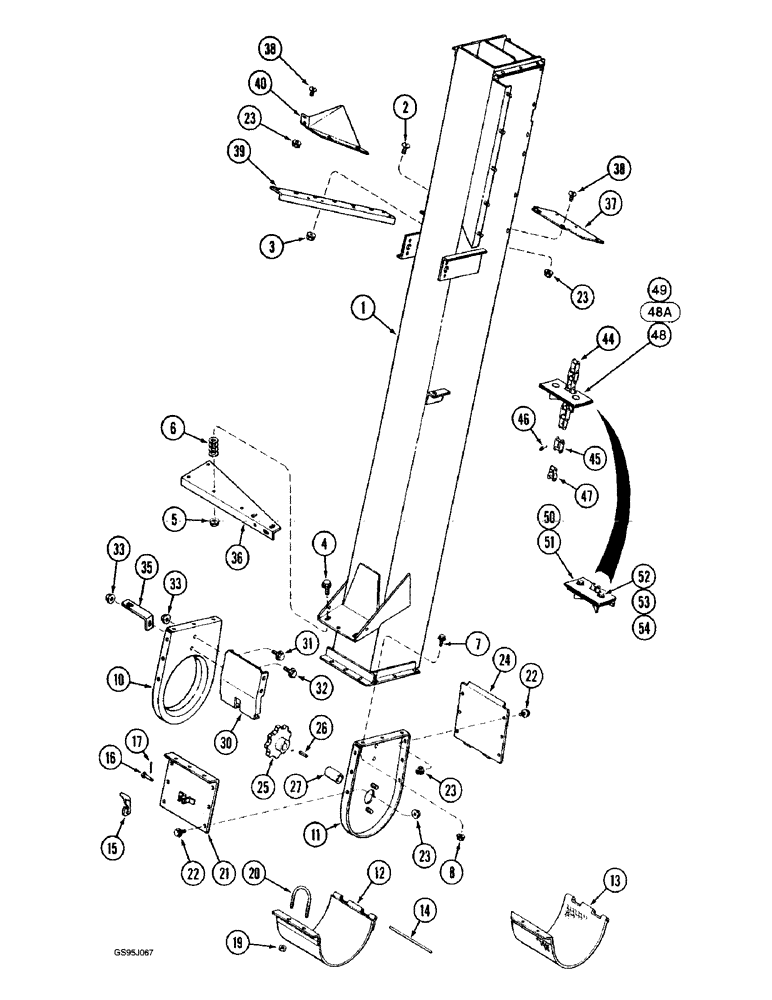

Запчасти Case IH 1682 (9-080) - GRAIN ELEVATOR TUBE AND BOOT (09) - CHASSIS ATTACHMENTS

1

1317456C3

HOUSING

HOUSlNG - elevator (Replaces housing 1317456C1)

1шт.

2

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

2шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

4

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

- hex serrated flange, 3/8 NC x 1-1/4 inch

2шт.

5

231-5146

FLANGE NUT,3/8"-16

2шт.

6

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

8шт.

7

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

9шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

9шт.

10

1318584C2

SUPPORT

SIDE - boot, inner (Replaces side 1318584C1)

1шт.

11

1318585C2

SIDE PLATE

SIDE - boot, outer (Replaces side 1318585C1)

1шт.

12

1317430C1

DOOR

- boot, not perforated

1шт.

13

1317842C1

DOOR

- boot, perforated

1шт.

14

1318737C1

ROD

PIN - hinge, door

1шт.

15

155909C1

LATCH

- door

1шт.

16

439-1420

HEADED PIN,1/4" x 1 1/4"

PIN - headed, 1/4 x 1-1/4 inch, grade 2

1шт.

17

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

19

9413977

NUT

- hex, self-locking, 5/16 inch NC (Replaces nut 9412083)

2шт.

20

316039R1

BOLT,5/16" - 18 x 5", Carbon Steel

U-BOLT - 5/16 inch NC

1шт.

21

1317437C1

COVER

- rear, elevator

1шт.

22

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

1шт.

23

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

24

1317439C1

COVER

- front, elevator

1шт.

25

1317192C1

SPROCKET

- drive, boot, 9 teeth

1шт.

26

Q1443

KEY,5/16" Sq x 1 1/2", Par

- square parallel, 5/16 x 1-1/2 inch

1шт.

27

1317471C1

SPACER

- sprocket, boot, 33 x 38 x 77 mm

1шт.

30

1318590C1

GUARD

DEFLECTOR - grain, bottom

1шт.

31

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch

1шт.

32

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex, self-locking, special, 3/8 NC x 1 inch

1шт.

33

231-5146

FLANGE NUT,3/8"-16

1шт.

35

186729C2

SUPPORT

- elevator, boot, lower

1шт.

36

1932223C2

BRACKET - support, elevator side

1шт.

37

1317694C1

PLATE

- seal

1шт.

38

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss head, 5/16 NC x 1/2 inch

1шт.

39

1317475C1

BRACKET

ANGLE - stiffener

1шт.

40

1317699C1

SUPPORT

- rear seal

1шт.

44

1317482C92

ELEVATOR CHAIN

CONVEYOR ASSEMBLY - elevator (Replaces assembly 1317482C91), Includes: Ref. 45 - 48

1шт.

45

241-15113

LINK,41.4mm Pitch

LINK - connecting, single pitch, No. C550, 1-5/8 inch pitch

1шт.

46

23442R1

PIN,2.36mm OD

- roller S Type, No. 550 chain

2шт.

47

241-18113

LINK,41.4mm Pitch

LINK - offset, single pitch, No. C550, 1-5/8 inch pitch

2шт.

48

1317614C92

RUBBER FLIGHT

FLIGHT ASSEMBLY - rubber, conveyor (Replaces flight assembly 1317614C91)

38шт.

50

1321444C92

STEEL FLIGHT

FLIGHT ASSEMBLY - steel, conveyor (Replaces flight assembly 1321444C91), Includes: Ref. 51 - 54

1шт.

51

1318493C2

RUBBER FLIGHT

FLIGHT - conveyor (Replaces flight 1318493C1)

1шт.

52

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

53

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

54

231-4116

NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

2шт.
