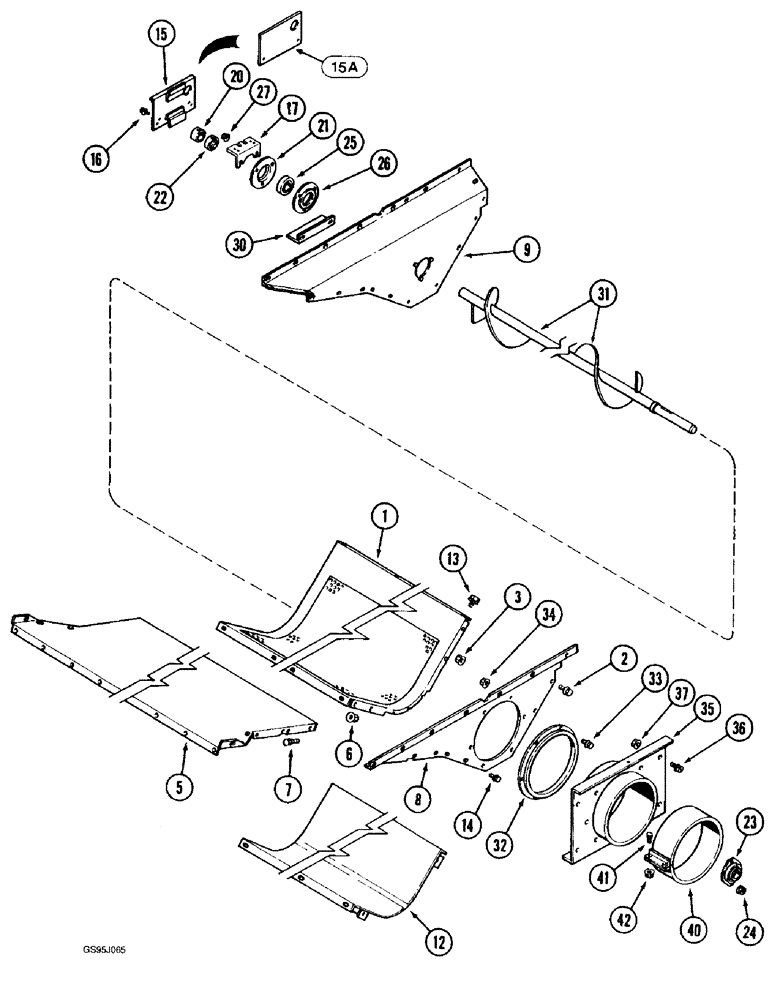

Запчасти Case IH 1682 (9-076) - GRAIN AUGER TROUGH (09) - CHASSIS ATTACHMENTS

1

1317392C1

TROUGH

BOTTOM - trough, not perforated

1шт.

1

1317420C1

TROUGH

BOTTOM - trough, perforated

1шт.

2

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

1шт.

3

231-5315

FLANGE NUT,Flg, 5/16"-18

NUT, LOCK, (Replaces nut 188471C1) Flg, 5/16"-18

12шт.

5

191984C2

PLATE

EXTENSION - trough, bottom

1шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

7

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch (Replaces bolt 180077)

19шт.

8

1317395C1

SUPPORT

- trough, right-hand

1шт.

9

1317393C1

SUPPORT

- trough, left-hand

1шт.

12

1317422C1

COVER

- trough

1шт.

13

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

14шт.

14

281-14816

SELF-TAP SCREW,HWH, 5/16" - 18 x 1"

SCREW - self-tapping, hex washer head, 5/16 NC x 1 inch (Replaces bolt 27569R1)

4шт.

15

187642C2

COVER

- sensor, auger, if used

1шт.

15a

1979323C1

SHIELD

COVER - sensor, auger, if used

1шт.

16

280-1478

SELF-TAP SCREW,HWH, 1/4-14 x 1/2"

SCREW - self-tapping, hex washer head, 1/4 NC x 1/2 inch (Replaces screw 23986R1)

2шт.

17

183869C3

SUPPORT

BRACKET - clean grain sensor (Replaces bracket 178795C1)

1шт.

20

1319397C1

COLLAR,31.88mm ID x 44.45mm OD x 23.24mm L

- locking, sensor

1шт.

21

939460R91

FLANGE

- bearing

1шт.

22

557995R11

COLLAR

- bearing, with set screw

2шт.

23

1317250C91

FLANGED BEARING,31.75mm ID

BEARING - auger, right-hand

1шт.

24

231-5146

FLANGE NUT,3/8"-16

2шт.

25

156011C92

BALL BEARING

BEARING - ball, auger, left-hand

1шт.

26

939461R1

FLANGE

- bearing

1шт.

27

231-5146

FLANGE NUT,3/8"-16

3шт.

30

1317407C1

BRACKET

ANGLE - support

1шт.

31

1317409C1

AUGER

- grain

1шт.

32

1317401C1

RETAINER

- support, plate

1шт.

33

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

6шт.

34

231-5315

FLANGE NUT,Flg, 5/16"-18

NUT, LOCK, (Replaces nut 188471C1) Flg, 5/16"-18

6шт.

35

1317398C1

SUPPORT

- end, trough

1шт.

36

1302143C1

FLANGE BOLT,Lock, Hex, 1/2" - 13 x 1"

- hex flange, special, 1/2 NC x 1 inch

10шт.

37

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

10шт.

40

1317442C1

CLAMP

- trough, auger

1шт.

41

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

42

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

2шт.
