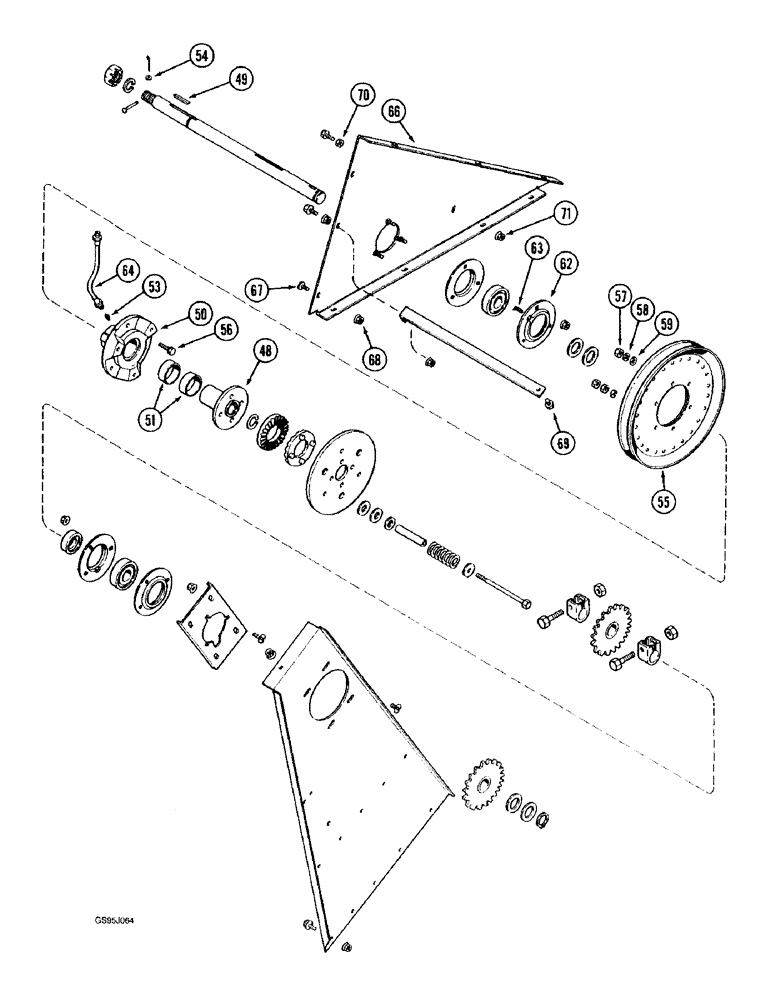

Запчасти Case IH 1682 (9-074) - ELEVATOR JACKSHAFT (CONTD) (09) - CHASSIS ATTACHMENTS

48

1319232C1

HUB

- clutch plate, slip

1шт.

49

586879R1

KEY

- square parallel, 5/16 x 2 inch

1шт.

50

183210C91

HUB

ASSEMBLY - slip clutch, drive, Includes: Ref. 51

1шт.

51

936744R1

BUSHING,47.66mm ID x 50.83mm OD x 19.05mm L

- hub

2шт.

53

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

54

195-513

WASHER,#10

- flat, 7/32 x 1/2 x 1/32 inch (6 x 13 x 0.8 mm) (Replaces washer 120391)

1шт.

55

183325C1

PULLEY

- drive, jackshaft, 13 inch

1шт.

56

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

3шт.

57

231-4116

NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

3шт.

58

492-11038

LOCK WASHER,3/8"

3шт.

59

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

3шт.

62

1968749C1

FLANGE

- bearing

1шт.

63

21340R1

ADAPTER,90 Degree, 1/4"-1/8 NPTF

FITTING - grease, 90 degree, special, 1/4 inch short

1шт.

64

171931C1

HOSE

- lube, bearing

1шт.

66

183206C1

SUPPORT

- jackshaft, inner

1шт.

67

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

6шт.

68

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

3шт.

70

329-146

JAM NUT,Jam, 3/8"-16, G5

1шт.

71

231-5146

FLANGE NUT,3/8"-16

1шт.
