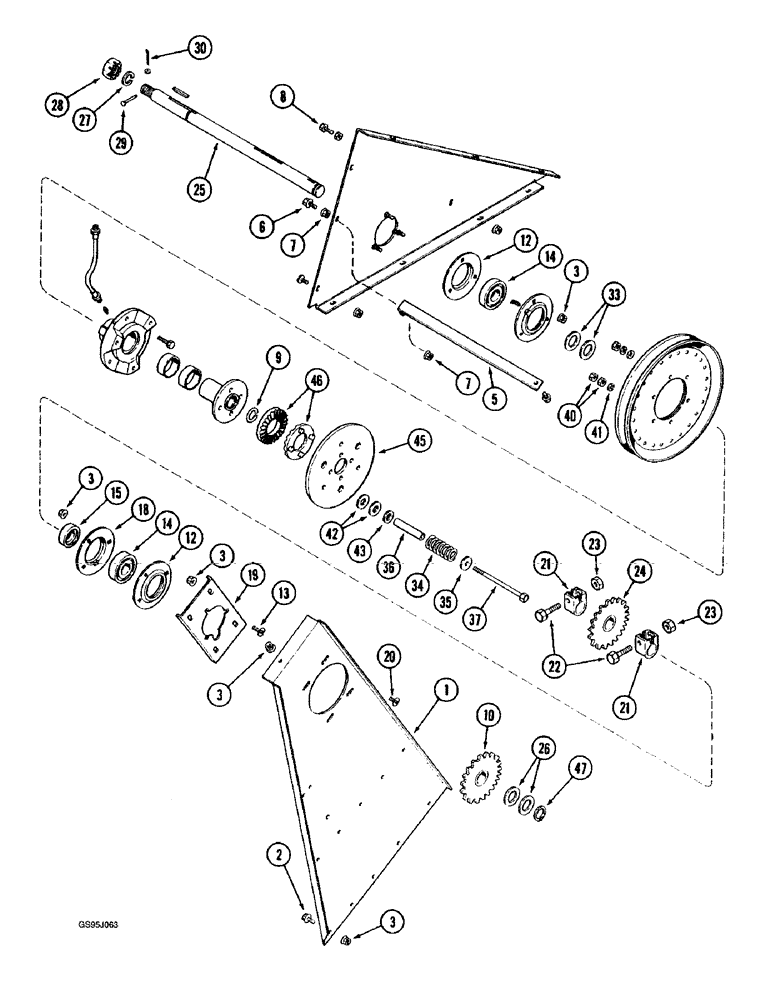

Запчасти Case IH 1682 (9-072) - ELEVATOR JACKSHAFT (09) - CHASSIS ATTACHMENTS

1

192190C1

SUPPORT

- jackshaft, outer

1шт.

2

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch

10шт.

3

231-5146

FLANGE NUT,3/8"-16

1шт.

5

192230C1

SUPPORT

BRACE - tie, support, outer

1шт.

6

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

1шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

8

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex, self-locking, special, 3/8 NC x 1 inch

1шт.

9

1319235C1

RING

- retaining, inner

1шт.

10

192139C2

SPROCKET

- drive, grain elevator, See Figure 9-79

1шт.

12

473092R1

FLANGED BEARING

- bearing

2шт.

13

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted truss head, special, 3/8 NC x 1 inch

3шт.

14

473097R92

BEARING ASSY,1.2505" ID x 72 mm OD x 1"

BEARING - ball, jackshaft

2шт.

15

455104R11

COLLAR

- locking, bearing

1шт.

18

939462R91

FLANGE

- bearing

1шт.

19

192138C2

BRACKET

- outer, jackshaft

1шт.

20

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, special, 3/8 NC x 3/4 inch

4шт.

21

225265R1

CLAMP

- sprocket

2шт.

22

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex, 1/2 NC x 2-1/4 inch

2шт.

23

231-4118

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

2шт.

24

192139C2

SPROCKET

- drive, 25 teeth

1шт.

25

1319247C1

SHAFT

- drive, elevator

1шт.

26

495-21138

WASHER,1 1/4"

- flat, 1-3/8 x 3 x 5/32 inch

1шт.

27

492-11100

LOCK WASHER,1"

1"

1шт.

28

425-1316

NUT,1"-14, G5

NUT - hex slotted, 1 inch NF (Replaces nut 427652)

1шт.

29

427-3175

CLEVIS PIN,4.78mm OD x 44.45mm L

PIN - clevis, 3/16 x 1-3/4 inch (Replaces pin 23668R1)

1шт.

30

432-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), (Replaces pin 112726) 1/16" x 1/2"

1шт.

33

183274C2

WASHER,32.51mm ID x 47.75mm OD x 4.57mm Thk

WASHER - flat, special, 1-9/32 x 1-7/8 x 3/16 inch

1шт.

34

C13263

SPRING

- clutch, slip

3шт.

35

495-81143

WASHER,13/32" x 1 1/2" x .120"

(10 x 38 x 3 mm) (Replaces washer 477589R1) 13/32" x 1 1/2" x .120"

3шт.

36

186916C2

BUSHING,11.18mm ID x 19.05mm OD x 87.38mm L

- clutch, retainer

3шт.

37

413-6104

BOLT,Hex, 3/8" - 16 x 6-1/2", Gr 5

- hex, 3/8 NC x 6-1/2 inch

3шт.

40

425-106

NUT,3/8"-16, Cl 5

6шт.

41

492-11038

LOCK WASHER,3/8"

3шт.

42

495-11081

WASHER,3/4", SAE

(21 x 49 x 3 mm) (Replaces washer 131017) 3/4", SAE

1шт.

43

495-81037

WASHER,25/32" x 1 1/4" x .060"

- flat, 25/32 x 1-1/4 x 3/64 inch (20 x 32 x 1 mm) (Replaces washer 178375R1)

1шт.

45

194835C2

RETAINER

PLATE - retainer, clutch

1шт.

46

B12170

RATCHET,Clutch Slip, 94.49mm

- clutch, slip

2шт.

47

100-16125

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

1шт.
