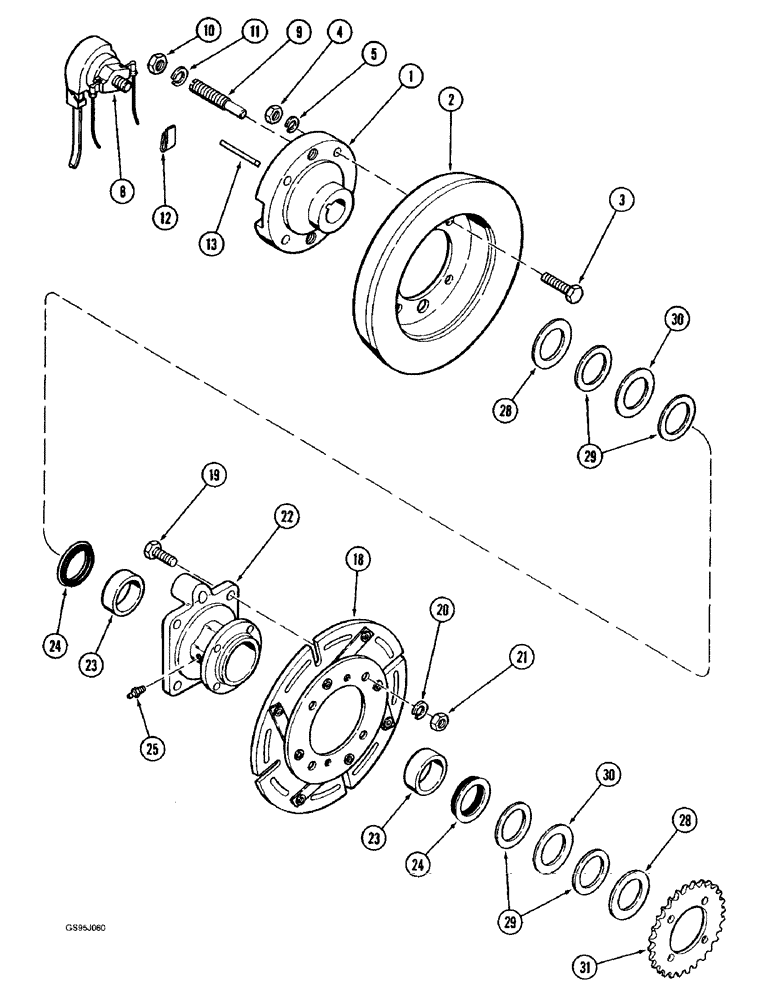

Запчасти Case IH 1682 (9-066) - ELECTRIC CLUTCH, FEEDER AND UNLOADER DRIVE (09) - CHASSIS ATTACHMENTS

1

189384C1

HUB

- drive, unloader field

1шт.

1

189638C2

HUB

- drive, feeder

1шт.

2

188753C1

MAGNET

- clutch

1шт.

3

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

Unloader magnet, if used Hex, 1/2"-13 x 2", G5

4шт.

3

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex, 1/2 NC x 2-1/4 inch, Feeder magnet, if used

4шт.

4

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

8

91807C1

BRUSH HOLDER

HOLDER - brush

1шт.

9

177190C1

STUD

- lock, clutch

2шт.

10

425-1412

JAM NUT,Jam, 3/4"-10, G5

- hex jam, 3/4 inch NC (Replaces nut 426897)

2шт.

11

492-11075

LOCK WASHER,3/4"

3/4"

2шт.

12

263717R91

CLIP

- cable

1шт.

13

586879R1

KEY

- square parallel, 5/16 x 2 inch, unloader hub, if used

1шт.

13

581307R1

KEY,5/16" Sq x 2 3/4", Par

- square parallel, 5/16 x 2-3/4 inch, feeder hub, if used

1шт.

18

188754C1

ARMATURE

- clutch, electric

1шт.

19

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

20

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

21

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

22

189385C91

HUB ASSY.

HUB ASSEMBLY - clutch, Includes: Ref. 23

1шт.

23

A32424

NEEDLE BEARING,1.875" ID x 2.2505" OD x 1"

BEARING - hub (Replaces bearing 392680R91)

2шт.

24

158109C91

SEAL

- grease

2шт.

25

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

28

1307352C1

WASHER

- flat, 1-7/16 x 3 x 3/16 inch (37 x 76 x 5 mm)

2шт.

29

24582R1

WASHER

- flat, 1-29/32 x 2-3/4 x 3/64 (48 x 70 x 1 mm)

4шт.

30

164683C1

THRUST WASHER

- flat, thrust

2шт.

31

1305972C1

SPROCKET ASSY.

SPROCKET - drive

1шт.
