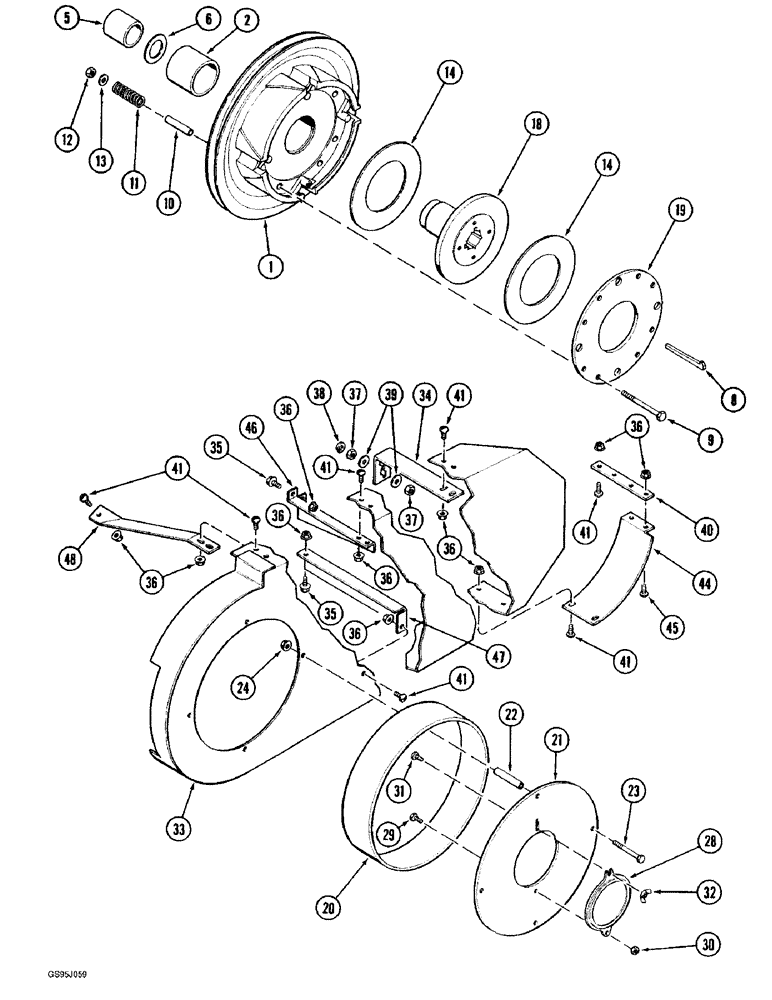

Запчасти Case IH 1682 (9-064) - FEEDER JACKSHAFT CLUTCH DRIVE (09) - CHASSIS ATTACHMENTS

1

185958C92

PULLEY ASSY.

PULLEY ASSEMBLY - clutch, Includes: Ref. 2

1шт.

2

610435C1

BUSHING,69.93mm ID x 82.65mm OD x 76.2mm L

- hub, pulley

1шт.

5

1305393C1

SPACER

- clutch, 2-35/64 inch

1шт.

6

95-81150

WASHER,46.02mm ID x 63.5mm OD x 3.35mm Thk

- flat, 1-13/16 x 2-1/2 x 1/8 inch

1шт.

8

Q3959

COTTER PIN,Gib, 3/8" Sq x 4 1/2"

Tapered Gib, 3/8" Sq x 4 1/2"

2шт.

9

1315320C1

BOLT,Hex, 3/8" - 16 x 4 3/4", Type 5

- hex, 3/8 NC x 4-3/4 inch

8шт.

10

181583C2

SPACER

- spring

8шт.

11

1305692C2

SPRING

- slip clutch (Replaces spring 1305692C1)

8шт.

12

231-4116

NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

8шт.

13

495-71041

WASHER,10.31mm ID x 31.75mm OD x 2.54mm Thk

- flat, 13/32 x 1-1/4 x 3/32 inch (Replaces washer 614452R1)

16шт.

14

181579C1

DISC

DISC - friction, clutch

2шт.

18

1327901C1

HUB

- clutch, slip

1шт.

19

185955C1

PLATE

- friction, retainer

1шт.

20

1305724C1

SHIELD

- spacer, clutch

1шт.

21

1305725C1

SHIELD

- cover

1шт.

22

4507031R1

SPACER

- shield, 9/32 x 3/8 x 3 inch

4шт.

23

413-460

BOLT,Hex, 1/4" - 20 x 3-3/4", Gr 5

- hex, 1/4 NC x 3-3/4 inch

4шт.

24

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

8шт.

28

188315C1

DOOR

- access, belt drive cover

1шт.

29

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

1шт.

30

232-4114

LOCK NUT,1/4"-20, GC

NUT, LOCK, 1/4"-20, GC

1шт.

31

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

- slotted truss head, 1/4 NC x 1/2 inch

1шт.

32

126177

WING NUT

NUT - wing, 1/4 inch NC

1шт.

33

187000C3

SHIELD

- drive, jackshaft

1шт.

34

189450C2

SUPPORT ASSY.

SUPPORT - shield, upper front

1шт.

35

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

5шт.

36

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

12шт.

37

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

38

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

39

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

2шт.

40

187014C1

SUPPORT

BAR - support

1шт.

41

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

10шт.

44

189458C1

SUPPORT

WRAPPER - shield

1шт.

45

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss head, 5/16 NC x 1/2 inch

2шт.

46

189452C1

SUPPORT

- rear, upper

1шт.

47

185750C1

SUPPORT

- rear, lower

1шт.

48

185749C1

SUPPORT

STRAP - support

1шт.
