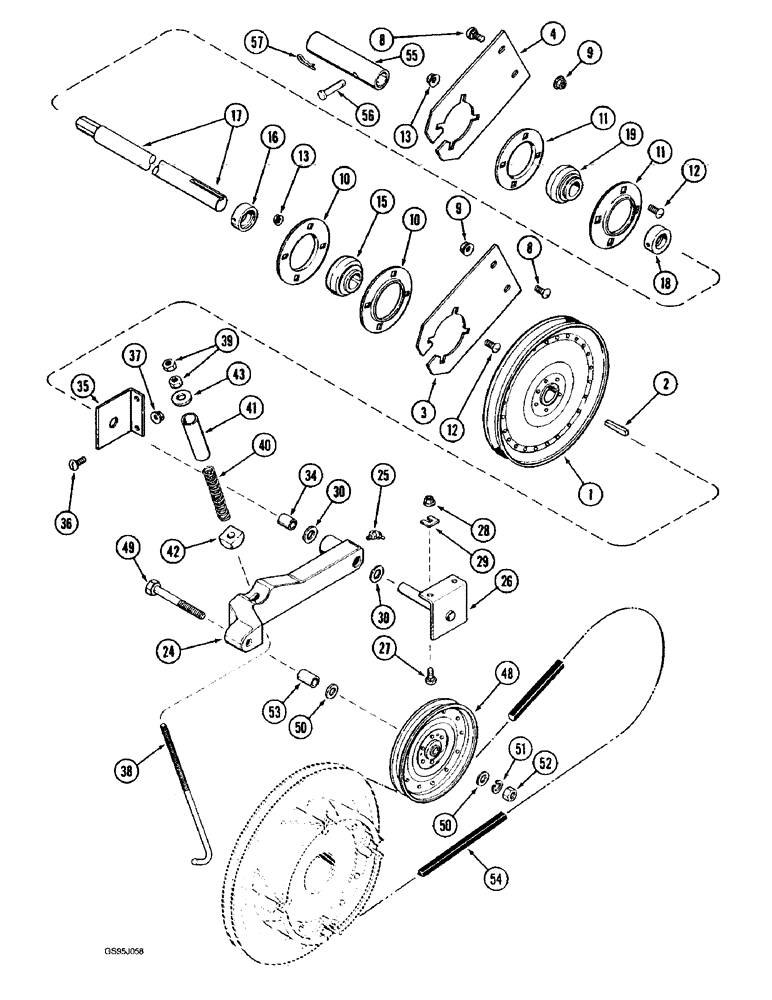

Запчасти Case IH 1682 (9-062) - FEEDER JACKSHAFT DRIVE (09) - CHASSIS ATTACHMENTS

1

1321647C1

PULLEY

- driven, jackshaft

1шт.

2

Q1376

KEY

- square tapered, 3/8 x 2-1/4 inch

1шт.

3

1321629C2

SUPPORT

- jackshaft bearing, right-hand

1шт.

4

1321628C2

SUPPORT

- jackshaft bearing, left-hand

1шт.

8

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT - carriage, 1/2 NC x 1 inch (Replaces bolt 598813R1)

4шт.

9

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

10

619333R1

FLANGED BEARING

- bearing, right-hand

2шт.

11

663562R1

FLANGE

- bearing, left-hand

2шт.

12

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT - carriage, 1/2 NC x 1 inch (Replaces bolt 598813R1)

8шт.

13

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

8шт.

15

664597R91

BALL BEARING,1.5005" ID x 90 mm OD x 1.625"

- ball, jackshaft, right-hand

1шт.

16

664598R11

COLLAR

- locking, bearing, right-hand

1шт.

17

1327698C1

SHAFT

- cross, feeder

1шт.

18

455112R11

COLLAR

- locking, bearing, left-hand

1шт.

19

455111R91

BALL BEARING,38.113 mm ID x 52.25 mm OD x 24.32, 42.8 mm

BEARING - ball, jackshaft, left-hand

1шт.

24

1321982C1

ARM

- tightener

1шт.

25

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

FITTING - grease, 45 degree, 1/4-28 special taper x 13/16 inch

1шт.

26

182322C1

SUPPORT

- pivot, idler

1шт.

27

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 inch - 16 NC x 3/4 inch (Replaces bolt 598809R1)

2шт.

28

231-5146

FLANGE NUT,3/8"-16

2шт.

29

151670C1

SHIM

SHIM - 0.036 inch, pivot

1шт.

30

495-81069

WASHER,1-1/32" ID x 1-1/2" OD x 3/50" Thk

- flat, 1-1/32 x 1-1/2 x 3/64 inch (26 x 38 x 1 mm) (Replaces washer 591715R1)

10шт.

34

M74461

SPACER,26.6mm ID x 33.4mm OD x 19mm L

Support 1" Pipe x 3/4"

1шт.

35

182323C1

SUPPORT

- idler, support, pivot

1шт.

36

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 inch - 16 NC x 3/4 inch (Replaces bolt 598809R1)

1шт.

37

231-5146

FLANGE NUT,3/8"-16

2шт.

38

197410C1

BOLT,1/2" - 13 x 17 1/2", Carbon Steel

- idler draw

1шт.

39

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

40

523267R1

SPRING

- bolt, draw

1шт.

41

176569C1

SPACER

- spring

1шт.

42

194652C1

PIVOT

- rod, pivot

1шт.

43

632076R1

WASHER

- flat, 17/32 x 1-3/4 x 3/32 inch (13 x 44 x 2 mm)

1шт.

48

674966R91

PULLEY,203.2mm Idler Dia x 222.25mm OD x 36.51mm W

- belt idler, 8-3/4 inch OD

1шт.

49

413-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

- hex, 5/8 NC x 5-1/2 inch

1шт.

50

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

2шт.

51

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

52

425-1010

NUT,5/8"-11, G5

1шт.

53

187217C1

SPACER,7/8" Tube x 1 13/16"

- pulley, 7/8 x 1-13/16 inch

1шт.

54

197414C2

BELT,22.33 mm W x 3706.69 mm L

V-BELT , Jackshaft 22.33 mm W x 3706.69 mm L

1шт.

55

176537C2

SPLINED COUPLING,28.83mm ID x 44.45mm OD x 203.2mm L

COUPLING - jackshaft, feeder

1шт.

56

439-5838

HEADED PIN,1/2" x 2 3/8"

PIN - headed, 1/2 x 2-3/8 inch (Replaces pin 23170R1)

1шт.

57

586591R1

COTTER PIN

PIN - hair, 1/8 inch

1шт.
